Interstage Studio J Business Kit GUI Library User's Guide

3.26 Spin button Bean

The spin button Bean has the following information and Customizer functions.

• Property information

• Event information

• Method information

See

"Package Guide"- JFSpinButton

Property information

Name	Type	Reference	Setting	Explanation
background	java.awt Color	Y	Y	Background color
borderColor	java.awt Color	Y	Y	Border line color
borderWidth	int	Y	Y	Border line width
buddy	java.awt Component	Y	Y	Related component
componentOrientation	java.awt ComponentOrientation	Y	Y	The orientation of the string. It depends on the language
enableMenu	boolean	Y	Y	Whether to display the popup menu
enableToolTip	boolean	Y	Y	Whether to display the tool tip
enabled	boolean	Y	Y	Whether enabled
focusTraversalKeysEnabled	boolean	Y	Y	Whether the focus traversal key is available
focusable	boolean	Y	Y	Whether the focus can be set
font	java.awt Font	Y	Y	Font
foreground	java.awt Color	Y	Y	Foreground color
ignoreRepaint	boolean	Y	Y	Whether the paint message of the operating system should be ignored
join	boolean	Y	Y	Whether to attach to the right side of the related component at FlowLayout
locale	java.util Locale	Y	Y	Locale information
name	java.lang String	Y	Y	Name
orientation	int	Y	Y	Orientation
remoteFont	boolean	Y		Whether the registered font is a remote font
toolTipText	java.lang String	Y	Y	Tool tip text
visible	boolean	Y	Y	Whether visible

Event information

Name	Listener	Addition/removal	Method	Explanation
action	java.awt.event ActionListener	addActionListener removeActionListener	actionPerformed	Is issued when the JFSpinButton button is pressed by the mouse or key.
component	java.awt.event ComponentListener	addComponentListener removeComponentListener	componentResized	Is issued when the component status changes.
			componentMoved
			componentShown
			componentHidden
focus	java.awt.event FocusListener	addFocusListener removeFocusListener	focusGained	Is issued when the focus moves.
			focusLost
inputMethod	java.awt.event InputMethodListener	addInputMethodListener removeInputMethodListener	caretPositionChanged	Is issued when the input method status changes.
			inputMethodTextChanged
key	java.awt.event KeyListener	addKeyListener removeKeyListener	keyTyped	Is issued by key operation.
			keyPressed
			keyReleased
mouse	java.awt.event MouseListener	addMouseListener removeMouseListener	mouseClicked	Is issued by mouse operation.
			mousePressed
			mouseReleased
			mouseEntered
			mouseExited
mouseMotion	java.awt.event MouseMotionListener	addMouseMotionListener removeMouseMotionListener	mouseDragged	Is issued when the mouse moves.
			mouseMoved
mouseWheel	java.awt.event MouseWheelListener	addMouseWheelListener removeMouseWheelListener	mouseWheelMoved	Is issued by mouse wheel operation.
propertyChange	java.beans PropertyChangeListener	addPropertyChangeListener removePropertyChangeListener	propertyChange	Is issued when the property changes.

Method information

Name	Parameters	Explanation
hideToolTip		Erases the tool tip.
requestFocus		Requests an input focus.
showToolTip	java.lang String	Displays the tool tip.
	java.awt Point
	java.awt Dimension
	long
transferFocus		Moves the focus to the next component.

Customizer

• Component common property

• JBK GUI common property

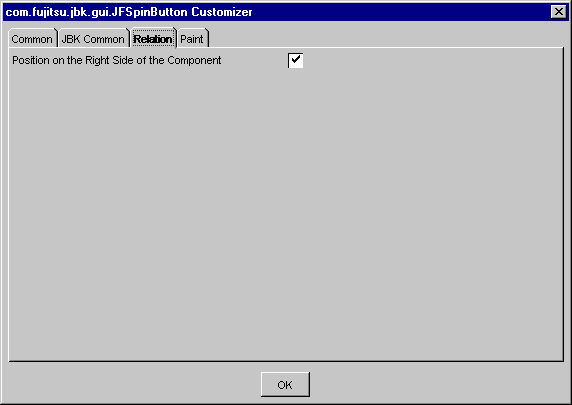

• Relation

  Specify the spin button position.



  Position on the Right Side of the Component

  Set whether to place on the right side of the related component. If this item is checked, the spin button is placed on the right side of the related component. If this item is unchecked, the spin button is placed in the position specified by the application.

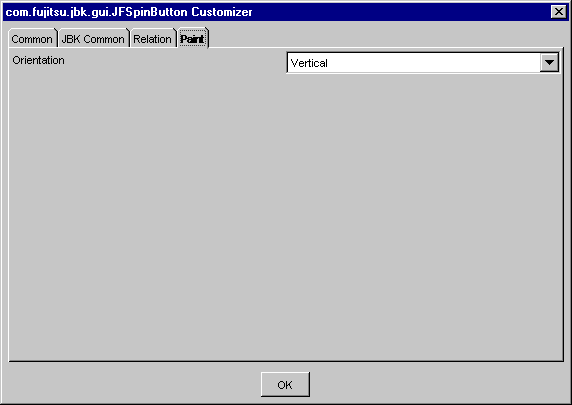

• Paint

  Set the orientation of the spin button.



  Orientation

  Select the orientation of the spin button from Vertical/Horizontal.
