4.3.1 Scenario

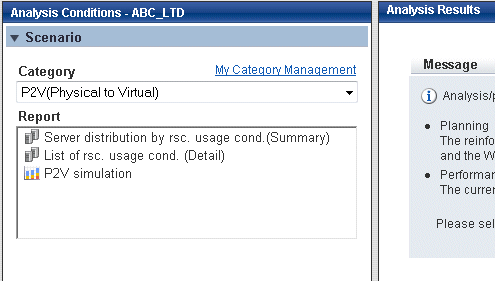

Scenarios are prepared in the Analysis/Planning window to suit different operational purposes. Perform analysis and planning to suit your aims by checking each report displayed in turn.

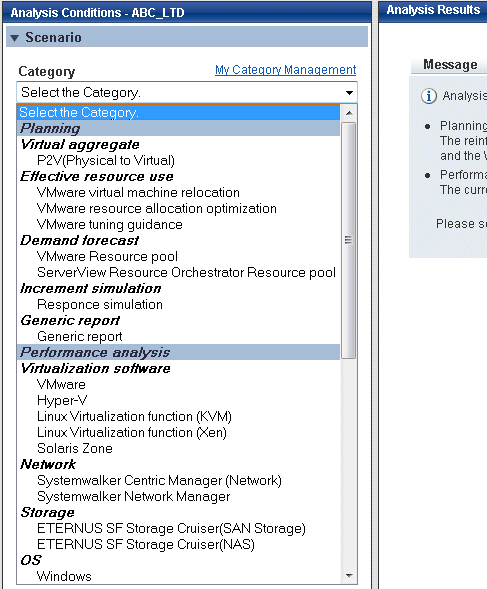

4.3.1.1 Category

The reports provided by Systemwalker Service Quality Coordinator are categorized according to operational aims. There are also cases where reports are further divided into separate categories.

First select the category then select the required report in that category.

Click My Category Management to show the My Category Management window, where categories can be added, modified, or deleted.

4.3.1.1.1 My Category Management

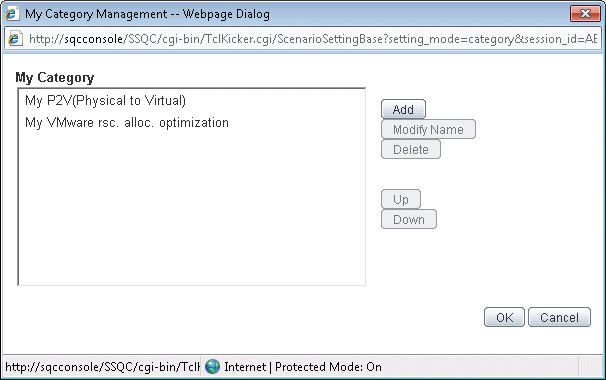

The My Category Management window

Categories can be added, modified, or deleted in the My Category Management window.

Item

Description

My Category

Categories that have been registered are listed.

Add button

The Add Category window is displayed where new categories can be added.

Modify Name button

Displays the Modify Category Name window where the name of the category can be modified.

Delete button

Delete the category selected in My Category. Click OK in the confirmation dialog box to go ahead and delete the category.

Up button

Down button

Move the category selected in My Category up or down.

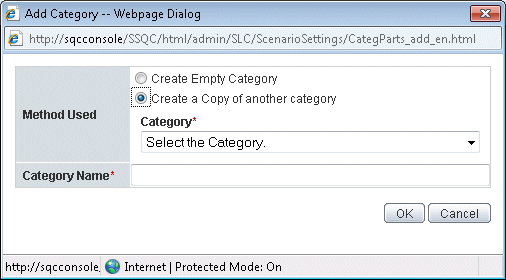

The Add Category window

Item

Description

Method Used

Create Empty Category

Creates an empty category. Register reports in it later.

Create a Copy of another category

Creates a copy of another category. The Category list becomes available to select from when you select this option. The reports in the copied category can be changed later.

Category

Use to select a category when creating a copy of another category.

Category Name

Specify a display name for identifying the scenario.

Enter a new name for the category, irrespective of the method used.

The name must be unique within the console definition.

The following characters can be used for search category names:

  • Alphanumerics

  • Symbols (except for $ " ' [ ] < > / ? | ; : * \ & , = % # +)

Platform-dependent characters are not allowed.

The registered report name can be no longer than 36 characters.

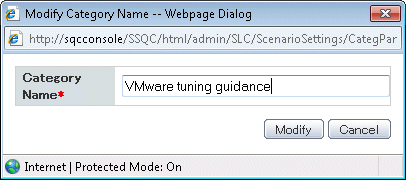

The Modify Category Name window

Item

Description

Category Name

Specify a display name for identifying the scenario.

The name must be unique within the console definition.

The following characters can be used for search category names:

  • Alphanumerics

  • Symbols (except for $ " ' [ ] < > / ? | ; : * \ & , = % # +)

Platform-dependent characters are not allowed.

The registered report name can be no longer than 36 characters.

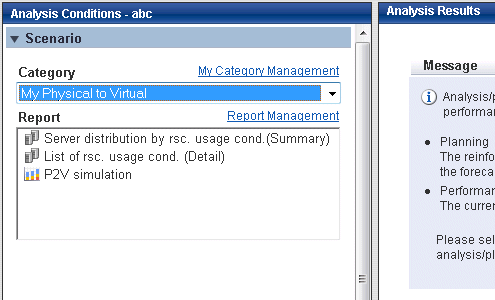

4.3.1.2 Report

Select a report that matches your purpose.

The items in Conditions depend on the report selected.


Report Management is displayed when you select a My Category. Click Report Management to show the Report Management window, where reports can be added, modified, or deleted.

4.3.1.2.1 Report Management

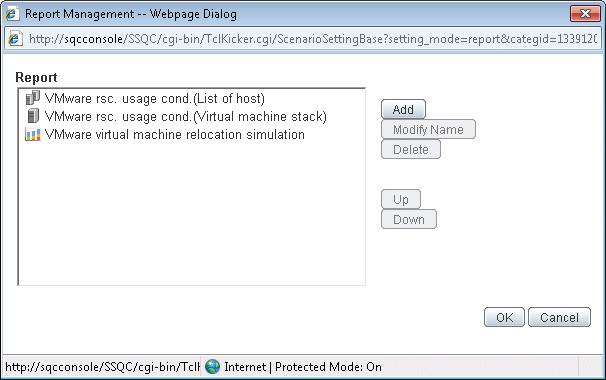

The Report Management window

Reports can be added, modified, or deleted in the Report Management window.

Item

Description

Report

Reports that have been registered are listed.

Add button

The Add Report window is displayed where new reports can be added.

Modify Name button

Displays the Modify Report Name window where the name of the report can be modified.

Delete button

Delete the report selected in Report. Click OK in the confirmation dialog box to go ahead and delete the report.

Up button

Down button

Move the report selected in Report up or down.

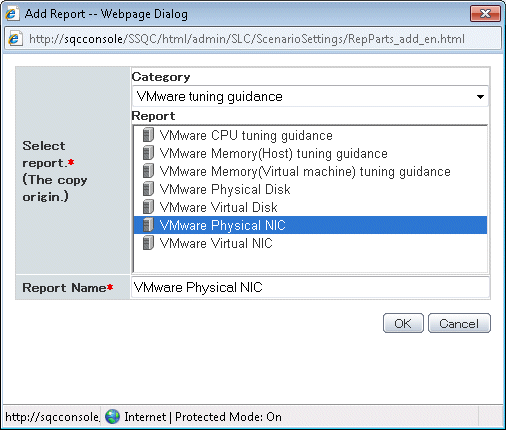

Add Report window

Item

Description

Select report.
(The copy origin.)

Category

Select the category that includes the report that you want to copy.

Report

The reports included in the selected category are listed, so select the report you want to copy.

Report Name

The name of the report is displayed.

Specify a display name for identifying the report and condition settings.

The name must be unique within the category.

The following characters can be used for report names:

  • Alphanumerics

  • Symbols (except for $ " ' [ ] < > / ? | ; : * \ & , = % # +)

Platform-dependent characters are not allowed.

The registered report name can be no longer than 50 characters.

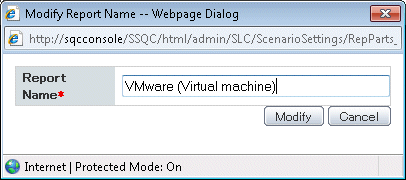

The Modify Report Name window

Item

Description

Report Name

Specify a display name for identifying the report and condition settings.

The name must be unique within the category.

The following characters can be used for report names:

  • Alphanumerics

  • Symbols (except for $ " ' [ ] < > / ? | ; : * \ & , = % # +)

Platform-dependent characters are not allowed

The registered report name can be no longer than 50 characters.
