Systemwalker Runbook Automation Studio User's Guide
Systemwalker

2.2.5 Ajax Page Editor and Palette View

The Ajax Page Editor is the main window used to create QuickForms. Use the editor to design QuickForms. When a QuickForm is opened, the Ajax Page Editor opens automatically. Multiple QuickForms can be opened at the same time.

Each QuickForm is displayed in a separate tab. The Quick Forms are displayed in the tabs. Asterisks (*) displayed to the left of a name or file name indicate that there are changes that have not been saved.

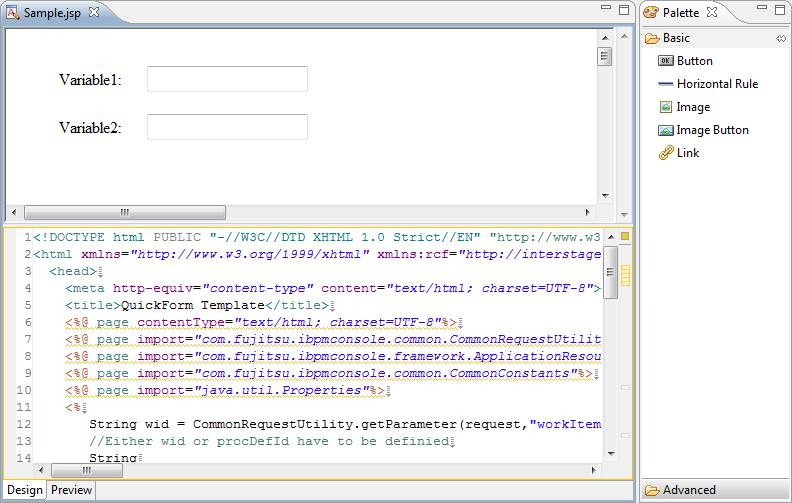

Figure 2.5 Ajax Page Editor and Palette view

Information

Items can be placed from the Palette view in the Ajax Page Editor, in either of the following two ways.

  • Select an item in the Palette view by clicking on it. Then move the mouse cursor to the location in the Ajax Page Editor where the item is to be placed, and click again.
