The scenario of each purpose of the operation is prepared on the Analysis/Planning window. The analysis and the planning along the purpose the displayed report is sequentially confirmed can be done.

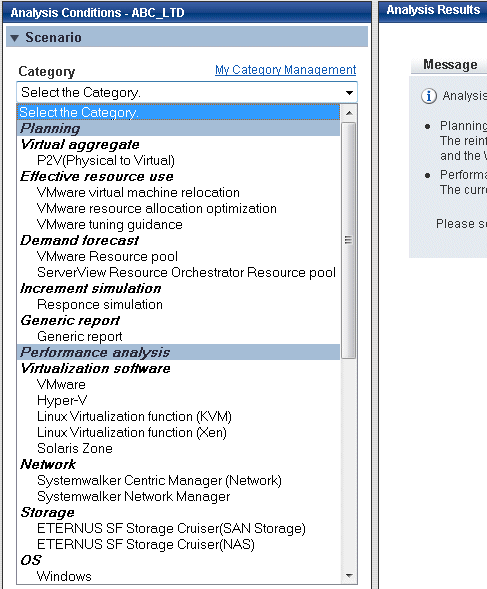

The report that Systemwalker Service Quality Coordinator offers is classified into the Category of the hilt matched to the purpose of the operation. One report might be classified into two or more categories.

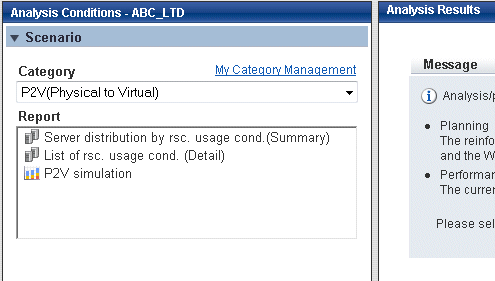

It comes to be able to select the report registered in the category by selecting the Category.
If My Category Management is clicked My Category Management window will be displayed. My Category Management is possible to delete it the addition and the change of the Category.
My Category Management Window
My Category Management window is possible to delete it the addition and the change of the Category.
Item name | Description |
|---|---|
My Category | The registered categories will be displayed by a list. |
Add | Add Category window to add the category newly is displayed. |
Modify Name | Modify Category Name to change the name of the category has been selected by the My Category is displayed. |
Delete | The category has been selected by the My Category is deleted. Please delete and click OK button by the confirmation screen when it is unquestionable. |
Up Down | The category has been selected by the My Category is moved up and down. |
Add Category Window
Item name | Description | |
|---|---|---|
Method Used | Create Empty Category | An empty Category is made. The report is registered back. |
Create a Copy of another category | The copy of another category is made. It comes to be able to select Category by selecting the radiobutton. The report registered in the copied category can be changed later. | |
Category | When another category is copied, it selects it. | |
Category Name | The displayname to identify the scenario is specified. A new category name is specified for which addition method. Please set to become unique in the Console Definition. The following characters can be used for Category Name:
Platform dependent characters can not be used. The Agent name can be no longer than 36 characters. | |

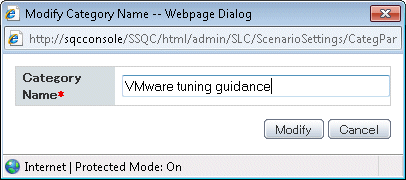

Modify Category Name Window
Item name | Description |
|---|---|
Category Name | The displayname to identify the scenario is specified. A new category name is specified for which addition method. Please set to become unique in the Console Definition. The following characters can be used for Category Name:
Platform dependent characters can not be used. The Agent name can be no longer than 36 characters. |
The report is selected according to the purpose.
The item of the Condition changes by the selected report.

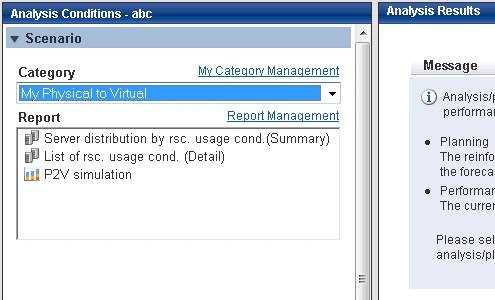

When the My Category is selected, Report Management is displayed. Report Management window when Report Management is clicked is displayed, and it is possible to delete it the addition and the change of the report.
Report Management Window
The My Category can be deleted on Report Management window. as for the addition, and the change it as for the report
Item name | Description |
|---|---|
Report | The registered reports will be displayed by a list. |
Add | Add Report window to add the report newly is displayed. |
Modify Name | Modify Report Name window to change the name of the report has been selected by the Report is displayed. |
Delete | The report has been selected by the Report is deleted. Please delete and click OK button by the confirmation screen when it is unquestionable. |
Up Down | The report has been selected by the Report is moved up and down. |
Add Report Window
Item name | Description | |
|---|---|---|
Select report.(The copy origin.) | Category | The category including the report to be copied is selected. |
Report | The report to be copied is selected from the list. | |
Report Name | The name of the selected report is displayed with Report. The displayname to identify the report and the condition settings is specified. Please set to become unique in the Category. The following characters can be used for Category Name: - Alphanumeric characters - Symbols (except for $ " ' [ ] < > / ? | ; : * \ & , = % # +) Platform dependent characters can not be used. The Agent name can be no longer than 50 characters. | |

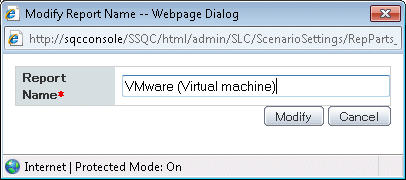

Modify Report Name Window
Item name | Description |
|---|---|
Report Name | The displayname to identify the report and the condition settings is specified. Please set to become unique in the Category. The following characters can be used for Category Name: - Alphanumeric characters - Symbols (except for $ " ' [ ] < > / ? | ; : * \ & , = % # +) Platform dependent characters can not be used. The Agent name can be no longer than 50 characters. |
