Server cluster operation
The following example shows how to configure the NetWorker server cluster operation.

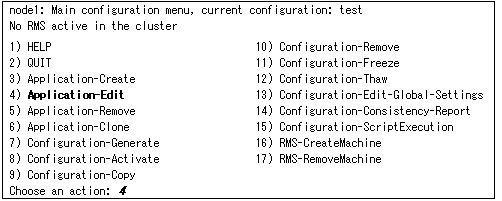

Select Application-Edit in the “Main RMS management menu” page.

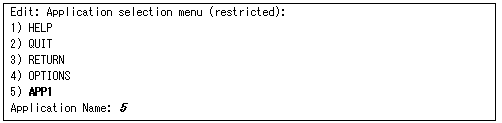

Select userApplication in the “Application selection menu” created at “A.1 userApplication Creation(CUI)”.

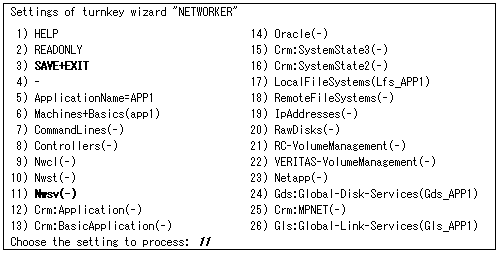

Select Nwsv in the “Settings of turnkey wizard NETWORKER” page.

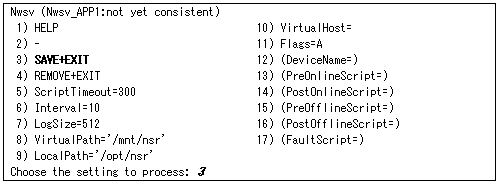

Setup in the Nwsv setup page.
For details about setting, see ”2.6.1.2 Server cluster operation”.

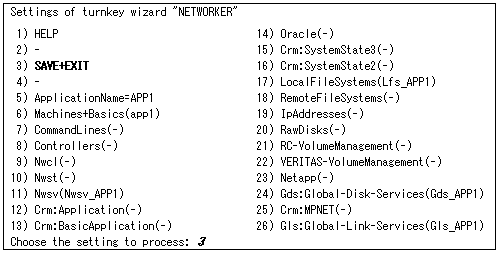

Save the above settings by selecting SAVE+EXIT.
Storage node cluster operation
The following example shows how to configure the NetWorker storage node cluster operation.
Select Application-Edit in the “Main RMS management menu” page.
Select userApplication in the “Application selection menu” created at “A.1 userApplication Creation(CUI)”.

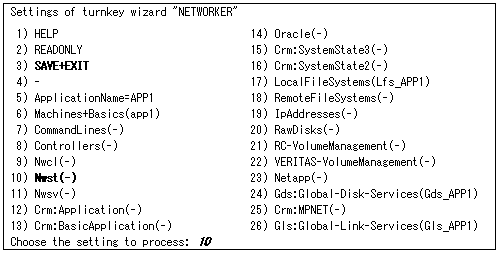

Select Nwst in the “Settings of turnkey wizard NETWORKER” page.

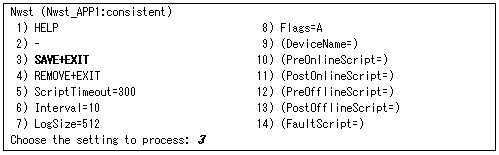

Setup in the Nwst setup page.
For details about setting, see ”2.6.1.3 Storage node cluster operation”.

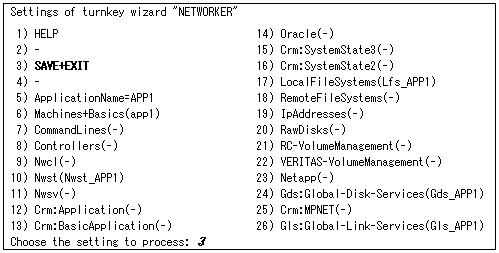

Save the above settings by selecting SAVE+EXIT.
Client-cluster operation
The following example shows how to configure the NetWorker client-cluster operation.
Select Application-Edit in the “Main RMS management menu” page.
Select userApplication in the “Application selection menu” created at “A.1 userApplication Creation(CUI)”.

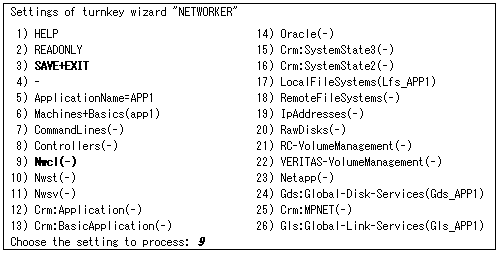

Select Nwcl in the “Settings of turnkey wizard NETWORKER” page.

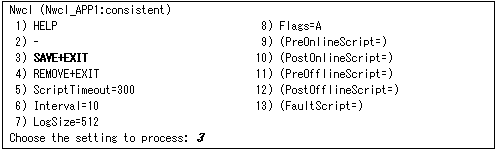

Setup in the Nwcl setup page.
For details about setting, see ”2.6.1.4 Client cluster operation”.

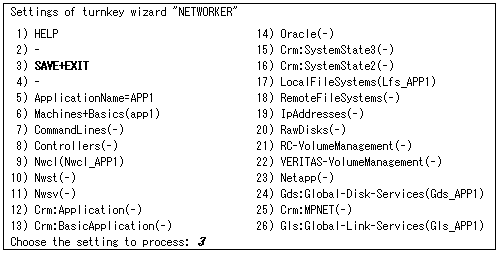

Save the above settings by selecting SAVE+EXIT.
