This section explains the Full System Inspection Analysis, Categorized Diagnostic, and Detailed analysis windows.

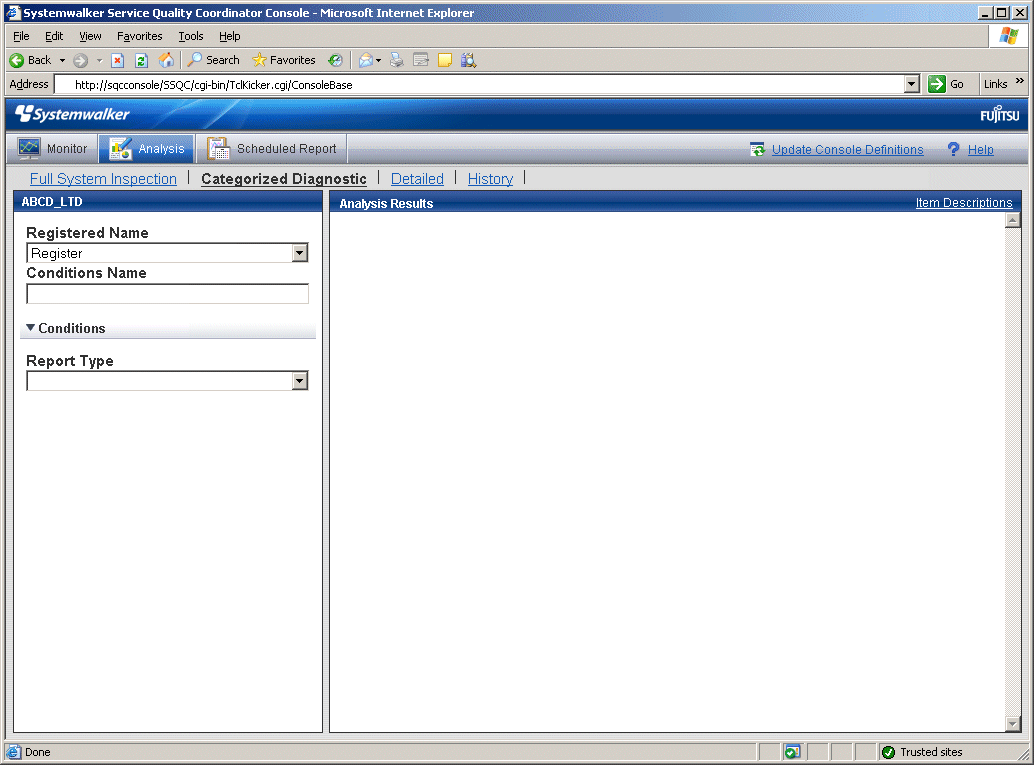

The following window appears when you select Full System Inspection, Categorized Diagnostic, or Detailed menu in the menu area of the analysis window.
Basic operation
The Full System Inspection, Categorized Diagnostic, and Detailed analysis windows perform the following operation.
Operation | Description |
|---|---|
Register analysis conditions | Registers any analysis conditions. |
Edit analysis conditions | Change the content of registered analysis conditions. Select the condition name to be edited in Registered Name. Enter the required analysis conditions, then items other than the dates for starting and finishing analysis are registered when the Save Over Current button is pressed. |
Copy analysis conditions | Copies registered analysis conditions. Select the condition name to be copied in Registered Name. Enter the required analysis conditions, then the Category dialog appears when the Register button is pressed, so enter the condition name and click the OK button. Items other than the dates for starting and finishing analysis are registered. |
Delete analysis conditions | Deletes a registered analysis condition. Select the condition name to be deleted in Registered Name and click the Delete button. |
Display analysis window | Displays the analysis window under the conditions displayed in the window. Conditions do not need to be registered. The content displayed is saved in the history. |
See
Refer to "4.3 How to Change the Analysis Conditions" for details on how to change the analysis conditions.
