6.1.15 Backup VSC Engine environment

This section describes how to back up the VSC Engine environment settings to the specified FTP server.

Beforehand set the information to login to the Ethernet port for virtualization control by the "Input login information" dialog.

Note

• This feature is not available to VS900 Model 200.

• Specify the absolute path of the directory.

• Make sure that the FTP server has enough disk space for backing up the VSC Engine configuration file.

• Directory names with spaces cannot be used.

1. Select a virtualization switch in the Maintenance window, then click <Backup VSC Engine environment>.

   Alternatively, select the virtualization switch, then select [Operation] - [Backup VSC Engine environment].

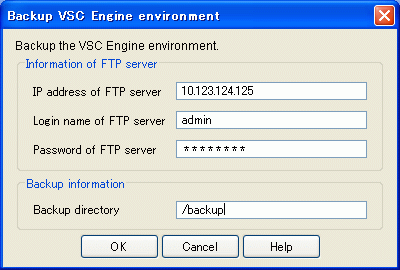

2. The "Backup VSC Engine environment" dialog box appears.



3. Enter the fields as described below.

   IP address of FTP server

   IP address of the FTP server where the VSC Engine environment file is to be backed up.

   The value must be IPv4-compliant -IPv6-compliant addresses cannot be entered. Only numbers and periods can be entered.

   Login name of FTP server

   Name used to login to the FTP server.

   Only alphanumerics and symbols can be entered.

   Password of FTP server

   User's password.

   Only alphanumerics and symbols can be entered.

   Backup directory

   Backup directory for the VSC Engine environment file.

   Only alphanumerics and symbols other than backslash (\) can be entered.

4. Click <OK>.

5. In the confirmation dialog box, click <OK>.

6. In the message dialog box will be displayed, click <Close>.

   The VSC Engine environment is backed up to the specified FTP server.
