6.1.13 Backup FOS configuration

This section describes how to back up the FOS configuration to the specified FTP server.

Note

• This feature is not available to VS900 Model 200.

• Specify the absolute path of the directory.

• Make sure that the FTP server has enough disk space for backing up the FOS configuration file.

• Directory names with spaces cannot be used.

1. Select a virtualization switch in the Maintenance window, then click <Backup FOS configuration>.

   Alternatively, select the virtualization switch, then select [Operation] - [Backup FOS configuration].

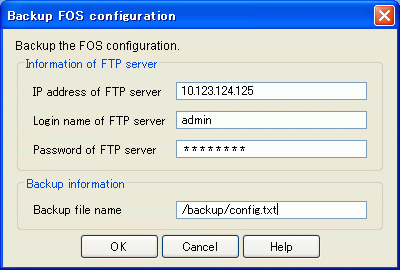

2. The "Backup FOS configuration" dialog box appears.



3. Enter the fields as described below.

   IP address of FTP server

   IP address of the FTP server where the FOS configuration is to be backed up.

   The value must be IPv4-compliant -IPv6-compliant addresses cannot be entered. Only numbers and periods can be entered.

   Login name of FTP server

   Name used to login to the FTP server.

   Only alphanumerics and symbols can be entered.

   Password of FTP server

   User's password.

   Only alphanumerics and symbols can be entered.

   Backup file name

   Path and filename of the FOS configuration file.

   Only alphanumerics and symbols other than backslash (\) can be entered.

4. Click <OK>.

5. In the confirmation dialog box, click <OK>.

6. In the message dialog box will be displayed, click <Close>.

   The FOS configuration is backed up to the specified FTP server.
