ETERNUS SF Storage Cruiser 14.0 User's Guidefor Virtual Storage Conductor

6.1.12 Input login information

This section describes how to set the information used to login to the virtualization control Ethernet port.

Note

This feature is not available to VS900 Model 200.

1. Select a virtualization switch in the Maintenance window, then click <Input login information>.

   Alternatively, select the virtualization switch, then select [Operation] - [Input login information].

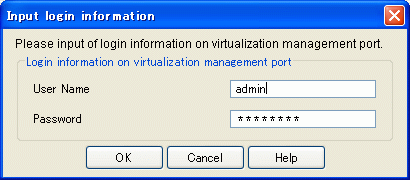

2. The "Input login information" dialog box appears.



3. Enter the fields as described below.

   User Name

   Name used to log in to the virtualization control Ethernet port.

   Only alphanumerics and symbols can be entered.

   Password

   User's password.

   Only alphanumerics and symbols can be entered.

4. Click <OK>.

5. In the confirmation dialog box, click <OK>.

6. In the message dialog box will be displayed, click <Close>.

   The information to login to the virtualization control Ethernet port is set.
