6.1.10 Installation of firmware

This section describes how to install virtualization switch firmware.

Beforehand set the information to login to the Ethernet port for virtualization control by the "Input login information" dialog.

The procedure for executing the installation of the firmware is as follows.

Note

  • This feature is not available to VS900 Model 200.

  • Make sure that you do not install a firmware edition earlier than the current one, otherwise subsequent operations are not guaranteed.

  • Specify the absolute path of the directory.

  • Do not specify the FTP server root directory as the backup destination for the VSC Engine.

  • Directory names with spaces cannot be used.

  1. Select a virtualization switch in the Maintenance window, then click <Installation of firmware>.

    Alternatively, select the virtualization switch, then select [Operation] - [Installation of firmware].

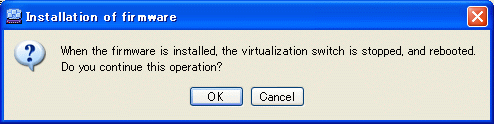

  2. In the "Installation of firmware" dialog box, click <OK>.

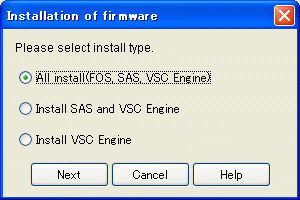

  3. Select a firmware installation pattern, click <Next>.

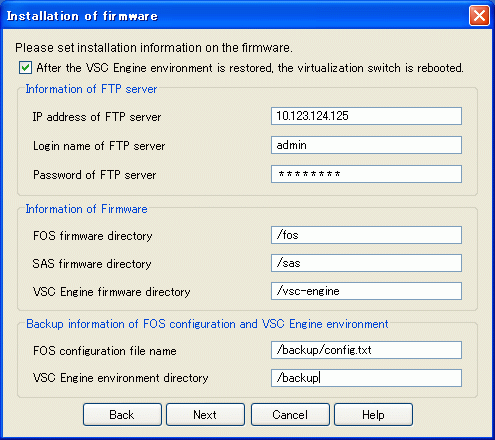

  4. In the " Installation of firmware " dialog box, enter the fields as described below. If you want to select a firmware installation pattern again, then click <Back>.

    After the VSC Engine environment is restored, the virtualization switch is rebooted.

    Specify whether to reactivate the virtualization switch after the VSC Engine configuraiton is restored.

    This field is selected by default.

    IP address of FTP server

    IP address of the FTP server where the firmware is stored.

    The value must be IPv4-compliant - IPv6-compliant addresses cannot be entered. Only numbers and periods can be entered.

    Login name of FTP server

    Name used to log in to the FTP server.

    Only alphanumerics and symbols can be entered.

    Password of FTP server

    User's password.

    Only alphanumerics and symbols can be entered.

    FOS firmware directory

    Storage directory of the FOS firmware.

    Only alphanumerics and symbols other than backslash (\) can be entered.

    This item will be enabled only if the selected installation pattern is "Install all (FOS, SAS, VSC Engine)".

    SAS firmware directory

    Storage directory of the SAS firmware.

    Only alphanumerics and symbols other than backslash (\) can be entered.

    This item will be enabled only if the selected installation pattern is "Install all (FOS, SAS, VSC Engine)" or "Install only SAS and VSC Engine".

    VSC Engine firmware directory

    Storage directory of the VSC Engine firmware.

    Only alphanumerics and symbols other than backslash (\) can be entered.

    FOS configuration file name

    Path and filename of the FOS configuration file to be backed up.

    Only alphanumerics and symbols other than backslash (\) can be entered.

    This item will be enabled only if the selected installation pattern is "Install all (FOS, SAS, VSC Engine)".

    VSC Engine environment directory

    Backup directory of the VSC Engine environment settings.

    Only alphanumerics and symbols other than backslash (\) can be entered.

  5. Click <Next>.

  6. In the confirmation dialog box, click <OK>.

  7. The progress dialog box will be displayed.

  8. When the process is complete, click <Close>.

    The specified firmware is installed.

Information

Perform as a batch the processes required during firmware installation.

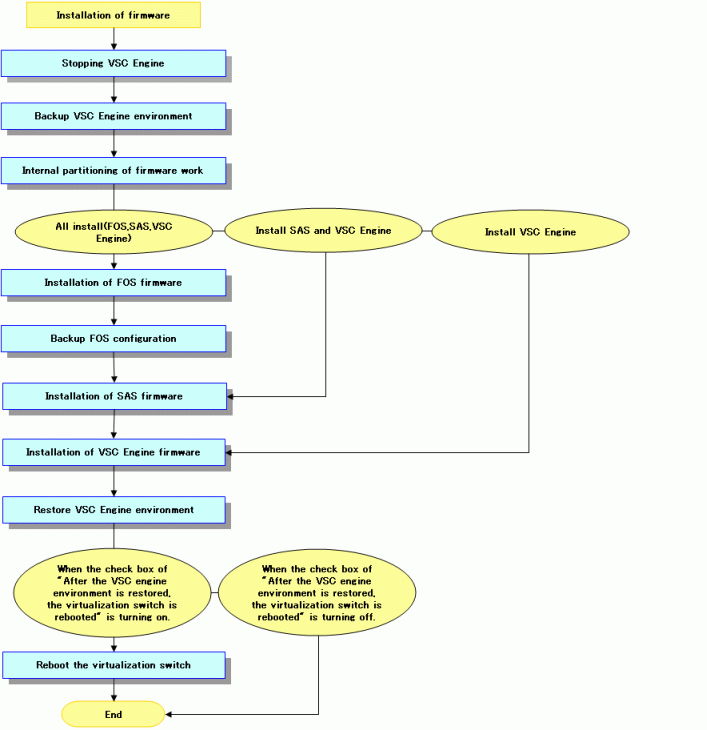

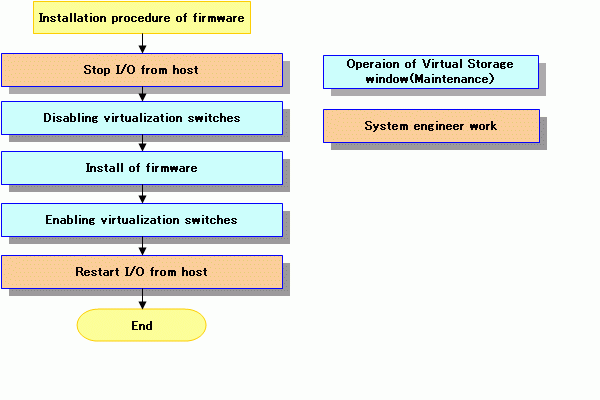

The figure below shows the processes to be performed during firmware installation.
