6.1.8 Displaying the initiator information of a virtualization switch

This section describes how to display the initiator information of each port of a virtualization switch.

Point

The <Details> buttons for the virtualization switches displayed in the Maintenance window are hidden by default.

To display the <Details> buttons in the Maintenance window, follow the procedure described in "Items for display/non-display" in Section "A.1.2 Common operations in the window", and then display the initiator information.

  1. In the Maintenance window, select either of the <Details> buttons for the virtualization switches listed.

  2. The "Initiator Information" dialog box shows the "Port Number" corresponding to the "Initiator".

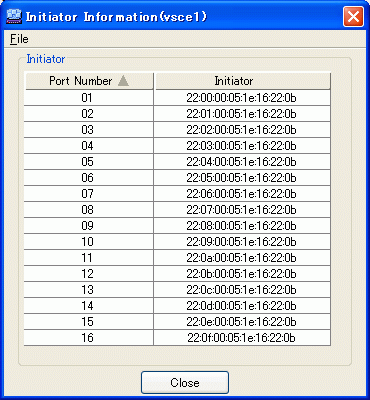

    • For VS900 Model 200

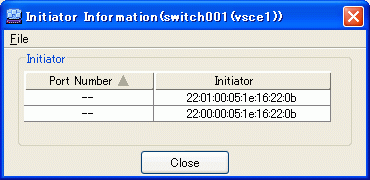

    • For VS900 Model 300 and Virtualization Blade
