This section explains how to delete the VS900 management area.
Start the "VS900 Management Area (Delete)" dialog box.
Click the "Virtual Storage Pool" in the Composition Data tree area, and click [Operations] - [VS900 management area] - [Delete].
The "VS900 Management Area (Delete)" dialog box then appears.

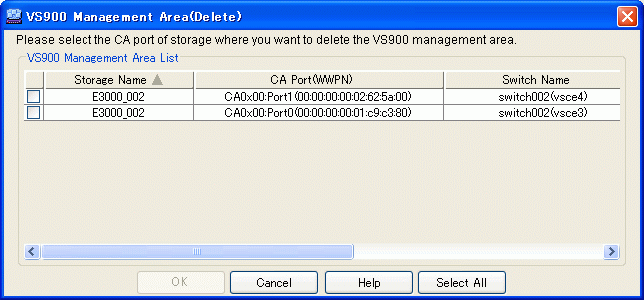

The VS900 management area list then appears. Select the VS900 management area (or management areas) you want to delete and click the <OK> button.
All VS900 management areas are selected by clicking the <Select All> button. When all the VS900 management areas are selected, the selection can be cancelled by clicking the <Clear> button.
For the VS900 Model 300 and Virtualization Blade, switch device names are displayed as "virtualization switch name (host name)".
When the VS900 management areas are deleted successfully, the "VS900 Management Area (Delete)" message dialog is displayed.

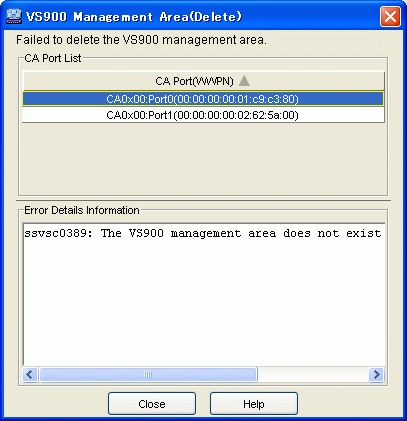

When the VS900 management areas were not deleted successfully, the "VS900 Management Area (Delete)" error dialog box is displayed. The detailed error information for the VS900 management area that failed to be deleted can be referenced by selecting the CA port displayed. Confirm the cause of the failure to delete the VS900 management area, then click the <Close> button.
The VS900 management areas are now deleted.
