5.1.9 VS900 management area

To use the replication suspend/resume function of ETERNUS SF AdvancedCopy Manager, a VS900 management area must be created in advance.

At least one VS900 management area must be created for each switch group.

This section explains how to create a VS900 management area and how to display VS900 management area information.


5.1.9.1 Creating a VS900 management area

  1. Open the "VS900 Management Area(Create)" dialog box.

    • Select "Virtual Storage Pool" from the Composition Data tree area and then select [Operation] - [VS900 Management Area] - [Create].

  2. The "VS900 Management Area (Create)" dialog box appears.

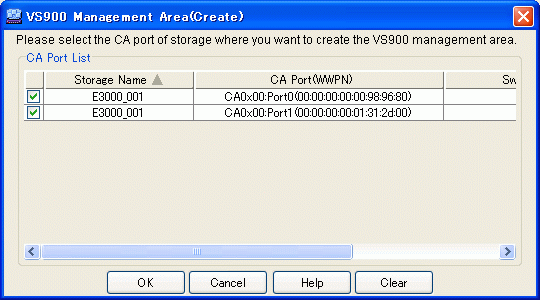

  3. CA ports are listed. Select one or more CA ports for which you want to create a VS900 management area, then click the <OK> button.

    • You can select all CA ports by clicking the <Select All> button. If all CA ports are selected, you can clear the selections of all CA ports by clicking the <Clear> button.

    • For the VS900 Model 300 and Virtualization Blade, switch device names are displayed as "virtualization switch name (host name)".

  4. When a VS900 management area has been successfully created, the "VS900 Management Area (Create)" dialog box appears.

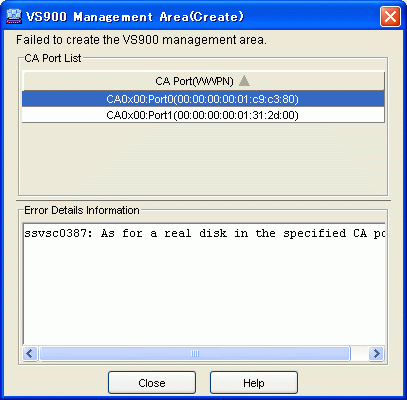

    If a VS900 management area has not been successfully created, the "VS900 Management Area (Create)" error dialog box appears. Select the displayed CA port to see detailed error information for that VS900 management area. Check the cause of the failure in creating the VS900 management area and click the <Close> button.

    A VS900 management area has now been created.


5.1.9.2 Displaying a VS900 management area

  1. Open the "Display VS900 Management Area" dialog box.

    • Select "Virtual Storage Pool" from the Composition Data tree area and then select [Operation] - [VS900 Management Area] - [Display].

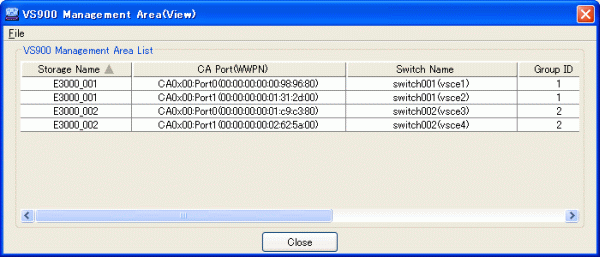

  2. The "VS900 Management Area (View)" dialog box appears, listing VS900 management areas.

    Table 5.1 Information displayed in the "VS900 Management Area (View)" dialog box

    Item

    Description

    Remarks

    Storage Name

    Name of a storage unit

    Product ID

    Product ID of a disk unit

    Hidden by default

    Serial Number

    Serial number of a disk unit

    Hidden by default

    CA Port (WWPN)

    CA port of a storage unit (WWPN)

    Switch Name

    Name of the virtualization switch connected to the CA port of a storage unit

    For the VS900 Model 300 and Virtualization Blade, switch device names are displayed as "virtualization switch name (host name)".

    Group ID

    Group ID of the virtualization switch connected to the CA port of a storage unit

    Logical Volume

    Internal disk unit number of a physical disk on which a VS900 management area has been created

    Physical Disk Name

    Name of a physical disk on which a VS900 management area has been created

    Capacity (MB)

    Capacity of a VS900 management area
