ETERNUS SF Storage Cruiser 14.0 User's Guidefor Virtual Storage Conductor

5.1 Creating a Virtual Disk

This section describes the procedure for setting up an environment to use virtual disks from the transaction server.

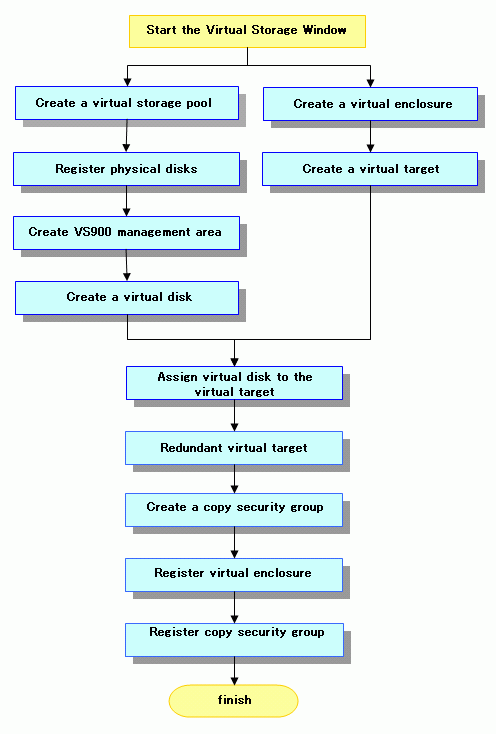

The overall flow for creating a virtual disk is as follows:

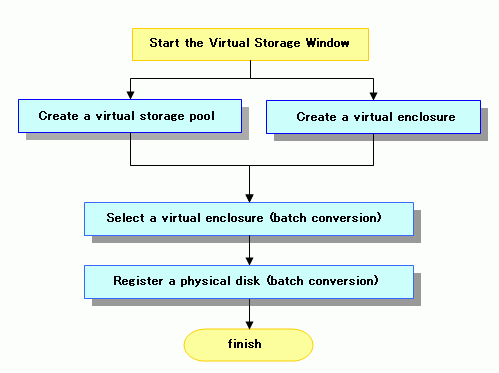

The general flow of creating a virtual disk in batch conversion is as follows:

See

Refer to "A.2 Explanation of the Windows under "View and Create"" for details of each window of the Virtual Storage Window.

Note

To create virtual disks while retaining existing data required by users, be sure to use batch conversion. For more information, refer to "5.1.8 Batch conversion".

Existing data may be damaged by creating a virtual disk without using batch conversion.
