Machine Administration Guide 2.6

B.3.3.2 When using software SynfinityDISK/GDS4.1A20 or earlier

1. If you enter "y" after checking statistics information, the following menu opens.

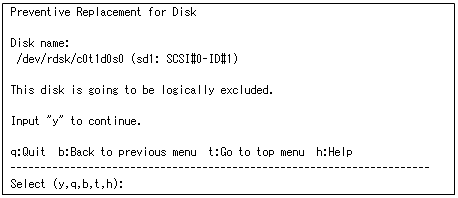

2. Select the disk you are going to replace. The following confirmation message appears.

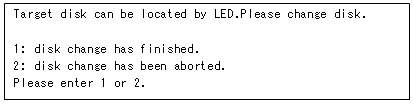

3. If the displayed disk is the target disk, enter "y". Electrical disconnection of the disk is performed and the following message appears:



   Replace the disk for which the Fault-LED (amber) lights.
   After replacement is complete, enter "1".
