Appendix B Disk Drive Replacement> B.3 Flow of Preventive Replacement> B.3.3 Replacing disks

B.3.3.1 When using GDS4.1A30 or later

When using GDS4.1A30 or later, you can perform a series of operations from the unmount operation screen of the "Preventive Maintenance of the Hard Disk Drive (Hot Swap)" menu item.

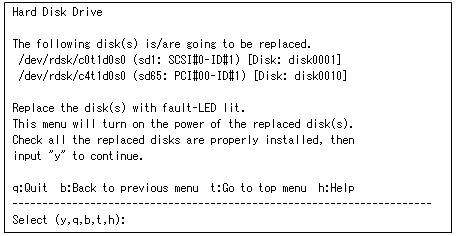

  1. After selecting the disk to be replaced, the following screen opens.

    The Fault-LED (amber) on the relevant disk lights. Replace the disk physically.

  2. After replacement is complete, enter "y". Disk power-on processing is performed and the result is displayed as follows:

  3. Check the result and then enter "y". The screen for selecting the operation for mounting disks in GDS opens. For the subsequent procedure, see Section B.3.4.1, "When using GDS4.1A30 or later."
