3.1.6.5 CPU Monitoring

This section describes how to operate the CPU Monitoring function.

Displaying the CPU Monitoring menu

Operation

1. From the Hardware Monitoring Information menu, select [CPU Monitoring].

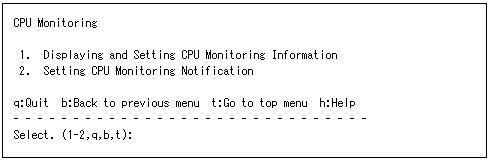

   The CPU Monitoring menu opens.



Displaying CPU Monitoring Information

The following describes how to operate the Displaying CPU Monitoring Information function:

Operation

1. From the CPU Monitoring menu, select [Displaying and Setting CPU Monitoring Information].

   The CPU monitoring information appears.

   This information includes:

   • Unit

     The CPU slot (example: CPU#0)

   • Status

     The CPU status

     Normal: Normal status

     Error: A CPU error was detected. The part needs to be replaced immediately.

     Replace: A CPU error was detected. Preventive replacement of the part is required.

   • Immediate Replacement Notification Destination

     Specify whether a notification is to be issued to prompt for the immediate replacement of the CPU if a hardware error was detected.

     Valid: Notification.

     Invalid: No notification.

   • Preventive Replacement Notification Destination

     Specify whether a notification is to be issued to prompt for preventive replacement if replacement is needed.

     Valid: Notification.

     Invalid: No notification.

Setting CPU Monitoring Information

The following describes how to perform the Setting CPU Monitoring Information operation:

Operation

1. From the CPU Monitoring menu, select [Displaying and Setting CPU Monitoring Information].

   The Setting CPU Monitoring Information list appears.

2. Select the CPU whose settings need to be made.
3. Enter the following information in the menu:
   • Setting Valid/Invalid Notification

     Specify whether a notification is to be issued, for each device. The default is "Valid."

     Valid: Notification.

     Invalid: No notification.

     The above setting can be made for the following types of notifications:

     Immediate Replacement Notification Destination: Used to prompt for the immediate replacement of the CPU.

     Preventive Replacement Notification Destination: Used to monitor for 1-bit errors in the CPU cache memory and to prompt for preventive replacement of the CPU before a hardware error is detected.

   • Resetting Monitoring Information

     Reset the monitoring information when the CPU was replaced.

Setting CPU Monitoring Notification

The following describes how to perform the Setting CPU Monitoring Notification operation:

Operation

1. From the CPU Monitoring menu, select [Setting CPU Monitoring Notification].

   The Setting CPU Monitoring Notification menu opens.

2. Enter the following information in the menu:
   • Immediate Replacement Notification Destination

     If immediate replacement notification is required, specify the destination to which that notification is automatically sent.

     Specify the notification destination from the following:

     • Output to the console
     • Sending mail to the system administrator
     • Sending mail to the CE
   • Preventive Replacement Notification Destination

     If preventive replacement notification is required, specify the destination to which that notification is automatically sent.

     Specify the notification destination from the following:

     • Output to the console
     • Sending mail to the system administrator
     • Sending mail to the CE



   Specify the mail address from the Setting Monitoring Notification Information menu of the Hardware Monitoring Information menu.
