PRIMECLUSTER Global Link Services Configuration and Administration Guide: Multipath Function (for Solaris(TM) Operating Environment)

6.3.2.1 info subcommand

Capabilities

Configuration information for the specified interface or for all interfaces, and the status of the communication path are displayed.

Synopsis

/usr/opt/FJSViomp/bin/iompadm -c mpnet [-p] info [interface_name]

Example

The following messages (examples) are output.

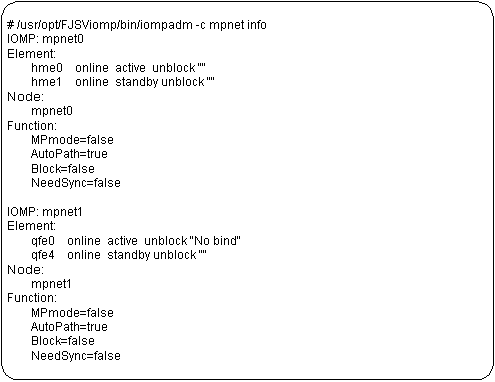

• Example of no "-p" option

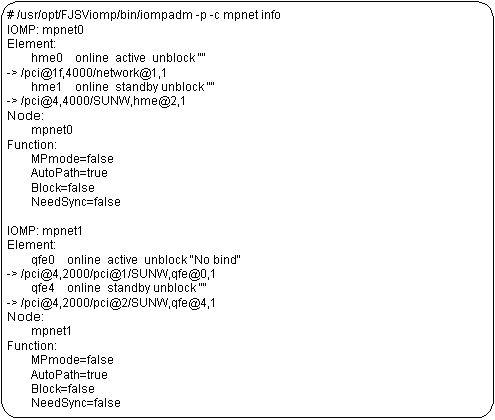

• Example of "-p" option

Contents

Information output from the above examples is explained in "Table 6.3 Communication path status."

[Table 6.3 Communication path status]

Information	Description
online / offline	Brief status of the communication path is displayed. - online : enabled to communicate - offline : disabled to communicate
active / standby / stop / fail / disconnected	Detailed status of the communication path is displayed. - active : enabled for communication or under operation - standby : ready for communication but in an idle state - stop : stopped state - fail : disabled for communication caused by a failure - busy : The communication path is being processed. - disconnected : The communication path has been disconnected by the DR function.
block / unblock	The authorized status of direct access to the communication path from the outside is displayed. - block : prohibited - unblock : permitted
Message	Supplemental information of the current system status or the error cause is displayed. If no supplemental information is displayed, quotation marks ("") are displayed. Refer to "Table 6.4 Message List" for details of the message displayed.
-> XXXX XXXX	When "-p" option is specified, the physical device name is displayed.

Refer to "Table 6.4 Message List" for details of the message displayed.

For the terms "capabilities of restoration" described in the table, see the section "6.3.2.5 recover subcommand" in "6.3 Multipath Control Command."

[Table 6.4 Message List]

Status	Message	Description	Restorable
active	None	Communication is being established by the upper BIND.	-
	No bind	Communication is ready because the upper BIND is not issued.	-
standby	None	Enabled to communicate but in an idle status.	-
stop	None	Stopped state	-
fail	Line error	An abnormality occurred in the transmission path.	A
	Attach error	The communication path (device) does not exist.	C
	Configuration error	The error occurred while activating the communication path (device).	C
	Bus error	The hardware error occurred in the communication path.	C
	Device not respond	No response to the issued command was returned from the communication path.	B
disconnected	None	The command does not get a response from the communication path.	-
busy	Line up process	The communication path is being activated.	-
	Line down process	The communication path is being deactivated.	-

Legend: A : Possible B : Might be possible C : Impossible - : Not affect
