PRIMECLUSTER Global Disk Services Configuration and Administration Guide 4.1 (Linux)

5.5.3 Removing a Group

Disconnecting all disks/lower level groups registered with a group will automatically remove the group.

The procedures are explained below.



1. Removing all volumes within the group

   If there is even a single volume, you cannot remove the group.

   Remove all volumes within the group by following the procedures described in "Removing a Volume."




2. Disconnecting disks/lower level groups from group

   Disconnect all disks/lower level groups by following the procedures below.

   (1) Displaying Group Configuration screen

   In the main screen [Settings] menu, click [Group Configuration]. [Group Configuration] screen appears.

   (2) Selecting group to remove

   Select the group you want to remove from [Group Configuration] screen "Group Name" field.

   (3) Disconnecting disk/lower level group

   Select the disk/lower level group you want to remove from [Group Configuration Disk/Group] field, and press <Delete>.

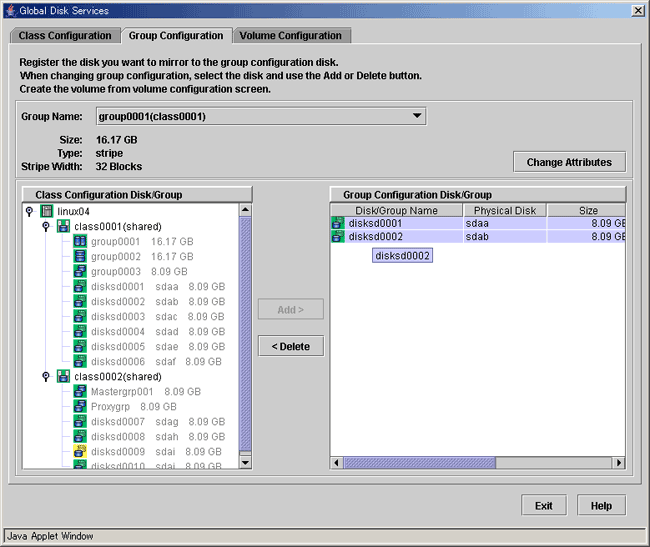

   [Figure: Disconnecting Disk/Lower level group]
