PRIMECLUSTER Global Disk Services Configuration and Administration Guide 4.1 (Linux)

5.5.2 Removing a Volume

The procedures for removing a mirror volume are explained below.



1. Confirming the volume status

   A volume containing a temporarily detached slice cannot be removed. When there is a temporarily detached slice, you must attach the slice before removing the volume.

   Volume status can be confirmed in the main screen.

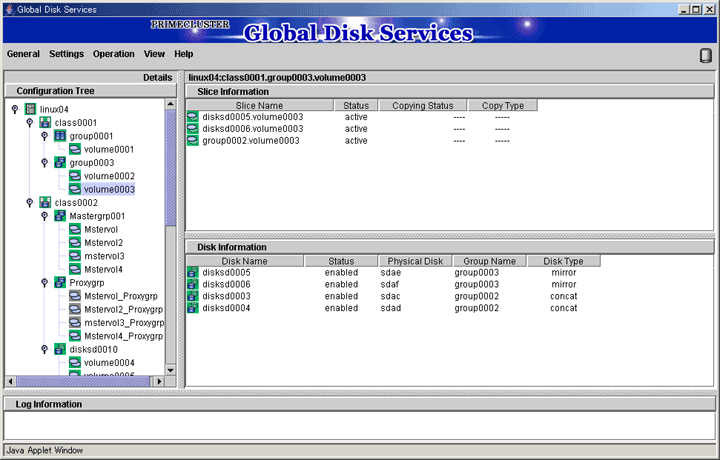

   [Figure: Displaying Volume Information]






2. Attaching a temporarily detached slice

   When there is a temporarily detached slice, go to [Operation] menu and click [Attach Slice]. The detached slice will be attached again.

   For information on Attach Slice operation, see "Backup (by Slice Detachment)."




3. Removing volume

   The procedures for removing a volume are explained below.

   (1) Displaying the Volume Configuration screen

   In the main screen [Settings] menu, click [Volume Configuration]. Volume Configuration screen appears.

   (2) Removing a volume

   Select the volume you want to remove, and press <Delete>.

   When removing more than one volume, select the next volume, and repeat the same process.

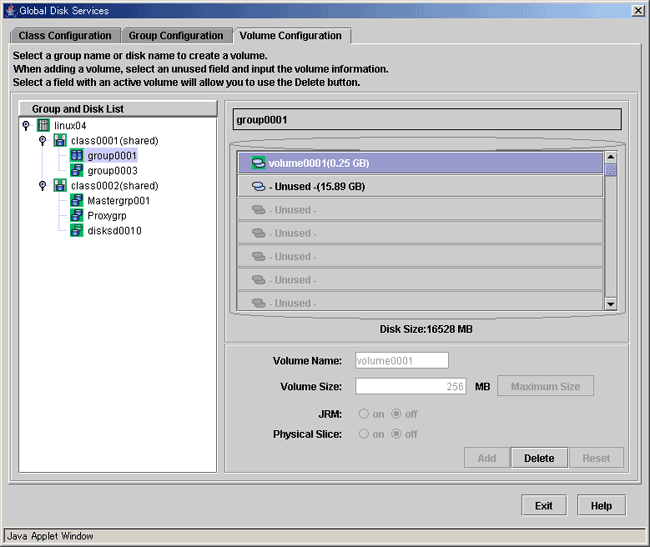

   [Figure: Removing Volume]
