By starting the screen from the shortcut of the Java application (PRIMECLUSTER Web-Based Admin View Startup), the Web-Based Admin View main screen below is displayed.

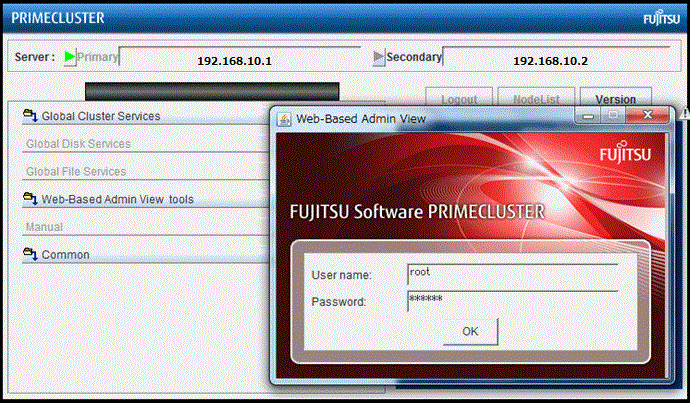

Figure 4.1 Cluster Admin start-up window
Enter a user name in the User name field and the password and click on OK.
Use the appropriate privilege level while logging in. There are three privilege levels: root privileges, administrative privileges, and operator privileges.
With the root privileges, you can perform all actions including configuration, administration and viewing tasks. With administrative privileges, you can view as well as execute commands but cannot make configuration changes. With the operator privileges, you can only perform viewing tasks.
Point
In this example we are using root and not creating user groups.
On the "Figure 4.1 Cluster Admin start-up window," click the Global Cluster Services button and the Cluster Admin button appears.

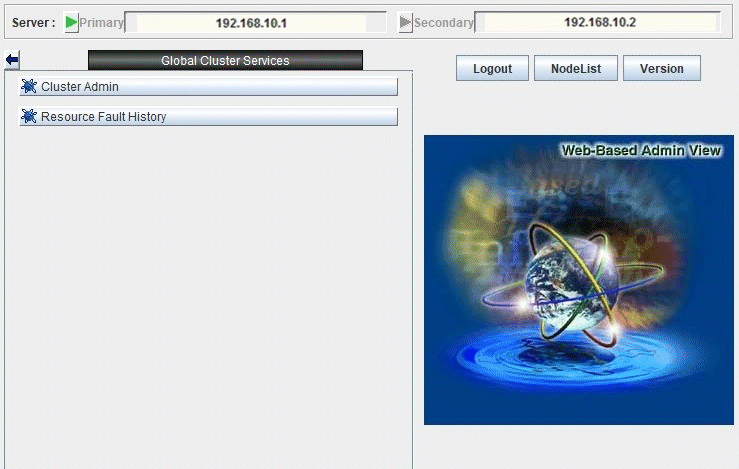

Figure 4.2 Top menu
Click the Cluster Admin button. The Choose a node for initial connection window appears.

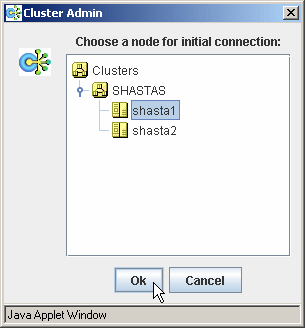

Figure 4.3 Initial connection choice window
Select a node and click on OK. The Cluster Admin main window appears.

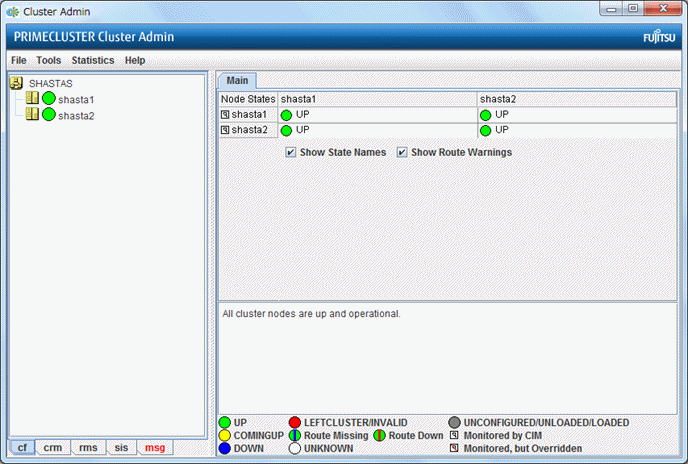

Figure 4.4 Cluster Admin main window
By default, the cf tab is selected and the CF main window is presented. Use the appropriate privilege level while logging in.
