The operation of demand jobs submitted under Jobs in the Job Selection window of the Systemwalker Operation Manager window can be carried out in the View Job Status/Operate window. The View Job Status/Operate window enables not only the demand jobs but also the following operations for all jobs including scheduled jobs.
Holding execution
Releasing execution hold
Moving execution queues
Deleting jobs
Changing job data (execution priority ranking and Dispatch Priority)
Procedure
Selecting the job to be operated
Select Jobs from the Job Selection window of the Systemwalker Operation Manager window. The View Job Status/Operate window will appear in the main window. Select the desired job from the View Job Status/Operate window.

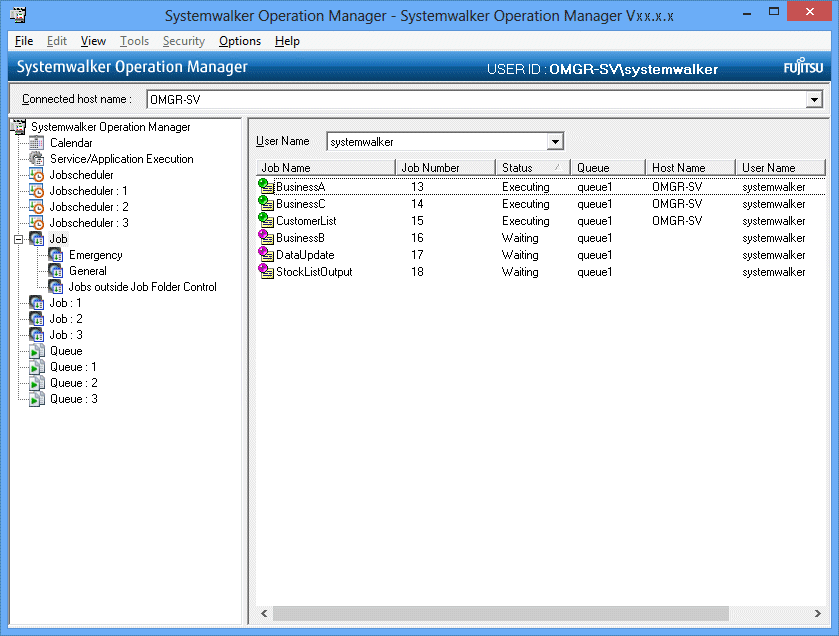

Figure 7.2 View Job Status/Operate window
Operating jobs
Operate as follows.
Select Hold from the Job Operation of the File menu (or select Hold from the Job Operation pop-up menu displayed by right-clicking).
Select Release from the Job Operation of the File menu (or select Release from the Job Operation pop-up menu displayed by right-clicking).
Select Move from the Job Operation of the File menu (or select Move from the Job Operation pop-up menu displayed by right-clicking). The Move Job dialog box will appear. Specify the destination queue according to the settings of the Move Job dialog box shown below.
Select Delete from the Job Operation of the File menu (or select Delete from the Job Operation pop-up menu displayed by right-clicking).
Select Change from the Job Operation of the File menu (or select Change from the Job Operation pop-up menu displayed by right-clicking). The Change Job Information dialog box will appear. Change the information referring to the settings of the Change Job Information dialog box shown below.
Make the necessary settings in the Job Transfer dialog box displayed by selecting Move from Job Operation in the File menu of the View Job Status/Operate window.
Figure 7.3 Move Job dialog box
Displays the queue name in which the relevant job currently exists.
Specifies the destination queue name.
Note
Move Job
It is not possible to move jobs from the distributed execution queue to another queue and vice versa.
Make the necessary settings in the Change Job Information dialog box displayed by selecting Change from Job Operation in the File menu of the Display/Operate Job Status window.
Figure 7.4 Change Job Information dialog box
Changes the execution priority ranking of the relevant job.
Changes the Dispatch Priority of the relevant job.

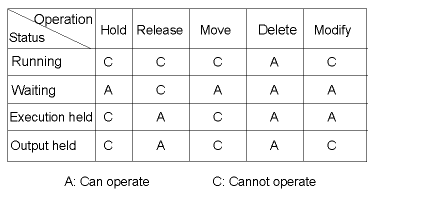

Relationship between job status and operations
The following table shows the operations that can and cannot be carried out for each scheduled job status.
If the job status is Execution held or Output held, the jobs which have been held by the administrator can only be released by the administrator.
Note
Operating network jobs
If you have requested another server to execute a network job, control this job from the server that submitted it, not the execution server. If you control it from the execution server, the results are unpredictable.
Information
Job operation on the server
It is also possible to operate the jobs from the server. To operate the jobs from the server, use the qhold (hold execution), qrls (release), qmove (move execution queue), qdel (delete job) and qjalter (change job information) commands. For details of each command, see the Systemwalker Operation Manager Reference Guide.
Note
Job operations if the Operation Manager user has been specified (in UNIX system)
If the Extended User Management function is valid and if the Operation Manager user is specified in the User Name, he or she can operate the job with the authority of the OS user who has been assigned to that Operation Manager user. In addition to the specified Operation Manager user, the job information of all Operation Manager users associated with the OS users is displayed. The users can operate the displayed job information.
