When an L-Platform that uses a server load balancer (SLB) that uses a ruleset has been deployed, the parameter values of the ruleset of the server load balancer can be changed.
Server load balancer settings are changed as follows:
Display the [L-Platform Details] window.
Refer to "5.3.2 L-Platform Detailed Information Display" for information on the display method.
Select Server Load Balancer to display detailed information.
Selected ruleset: Displays the ruleset names.
Description: Displays the ruleset descriptions.
Click the [SLB settings] button to display the [SLB Parameters Setting] window.
Click the [Select] button for each parameter to display the [Parameter Setting] window.
This section explains the [Parameter Setting] window.
[Included] is specified in the initial state, as shown below, and the list displays the servers (NICs) that will not be load-balanced.
Select a row and click [OK] to select a server for distribution.
Select a segment to display only the server connected to it - if [All] is selected, all servers on the L-Platform will be displayed.
Select [Not included] to disable the segment and the list, as shown in "When a parameter with no configured IP address is selected, or when [Not included] is selected" (display only).
When changing from [Not included] to [Included], the default value of the segment selection is the segment connected to the SLB.
[Not included] is specified in the initial state, as shown below, and the list displays the servers (NICs) that will not be load-balanced. Note that this window only displays the default value - it does not enable a selection to be made.
The default value of the segment selection is the segment connected to the SLB. Note that this window only displays the default value - it does not enable a selection to be made.
Refer to "When a parameter with a configured IP address is selected, or when Included is selected" to change the selection from [Not included] to [Included] .

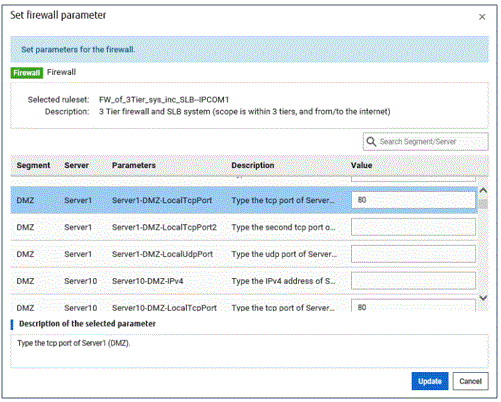

[Server] tab: Parameters that are related to the server are displayed. The following items are displayed:
Server name: The names of the servers where the parameters are enabled are displayed. "-" is displayed for parameters unrelated to the server.
Parameter: Displays the parameter labels.
Description: Displays the parameter descriptions.
Setting value: Enter the value to be set for the parameter.
Parameter descriptions: Displays the description of the parameter that is moussed over.
When [Update] button is clicked, a confirmation message is displayed.
Click [OK] button to start the server load balancer settings.
Point
Server load balancer settings cannot be changed in L-Platform subscriptions or when modifying the L-Platform configuration.
Specify the server load balancer settings after deploying the L-Platform and before operating the server load balancer.
Specify the IP address advised by the tenant administrator for the virtual IP address used when setting the server load balancer. Also check with the tenant administrator if you do not know any of the other values to be specified.
Note
The parameters and operations available depend on the device and rulesets.
