Physical L-Server Switchover (Physical OS)

Switch over of a physical L-Server in which a physical OS is installed.

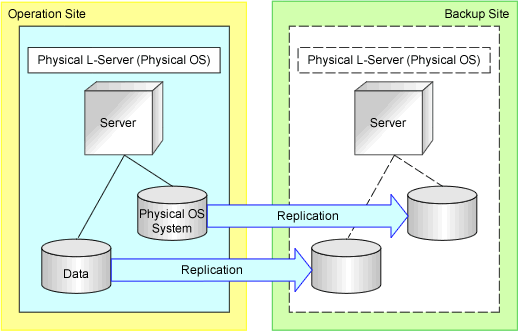

Figure 2.1 Physical L-Server Switchover (Physical OS)

Table 2.6 Supported Configurations
Item	Content		Remarks
Managed server type	PRIMERGY blade servers
Managed server type	PRIMERGY rack mount/pedestal servers		Only available when using I/O virtualization with VIOM.
Storage connections	FC
Physical L-Server disk allocation methods	LUNs created in advance, Dynamic LUN mirroring
Managed switch blades	Connection Blade	Switch mode	IBP mode cannot be used.
		End host mode
		Converged Fabric mode

Point

Physical L-Server switchover can be performed with physical/virtual L-Server switchover (VM host/VM guest), or virtual L-Server switchover (VM guest) at the same time.

Note

Physical OS System Disks or Disks Storing Data Used by Physical OSs

Use the FC connection disks as the replication targets.
