G.3.6 For Deploying Firewalls (ASA 5500 Series)

The default model configuration assumed by a sample script is given below.

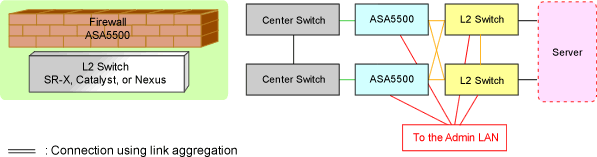

Figure G.5 Standard Model Configurations of Sample Scripts (ASA 5500 Series)

The names of the sample rulesets provided by Resource Orchestrator are listed below.

For ASA 5500

3Tier_system_firewall--ASA1

For the systems that use ASA 5510 as an ASA 5500 series model for 3-tier models

LAN Ports to be Used

• For Public LANs (Center Switch Side)

  ethernet0/0

• For Public LANs (L2 Switch Side)

  redundant1: Redundant LAN Channels

  • ethernet0/1

  • ethernet0/2

• For the Admin LAN

  management0/0

• For Unit Synchronization

  ethernet0/3

3Tier_system_firewall--ASA2

For the systems that use ASA 5520/5540/5550 as an ASA 5500 series model for 3-tier models

LAN Ports to be Used

• For Public LANs (Center Switch Side)

  gigabitethernet0/0

• For Public LANs (L2 Switch Side)

  redundant1: Redundant LAN Channels

  • gigabitethernet0/1

  • gigabitethernet0/2

• For the Admin LAN

  management0/0

• For Unit Synchronization

  gigabitethernet0/3

3Tier_system_firewall--ASA3

For the systems that use ASA 5580 as an ASA 5500 series model for 3-tier models

LAN Ports to be Used

• For Public LANs (Center Switch Side)

  gigabitethernet3/0

• For Public LANs (L2 Switch Side)

  redundant1: Redundant LAN Channels

  • gigabitethernet3/1

  • gigabitethernet3/2

• For the Admin LAN

  management0/0

• For Unit Synchronization

  gigabitethernet3/3
