ServerView Resource Orchestrator Cloud Edition V3.3.0 Design Guide
FUJITSU Software
Chapter 9 Defining and Configuring the Network Environment > 9.4 Preparations for Resource Orchestrator Network Environments > 9.4.1 When Automatically Configuring the Network
PreviousNext

9.4.1 When Automatically Configuring the Network

By connecting the NIC for an L-Server to a network resource, the following settings are automatically configured.

9.4.1.1 Automatic VLAN Configuration for LAN Switch Blades (Physical/Virtual L-Servers)

VLANs are automatically configured on LAN switch blades.

When Using Something other than PY CB DCB SW 10 Gb 18/6/6 as a LAN Switch Blade

There are the following three types of firmware for LAN switch blades:

In Resource Orchestrator, operation of a LAN switch blade using Switch firmware is called Switch mode, operation using end-host firmware is called end-host mode, and operation using IBP firmware is called IBP mode.

For details, refer to the manual of the LAN switch blade.

When Using a PY CB DCB SW 10Gb 18/6/6 as a LAN Switch Blade

VLANs are automatically configured for a LAN switch blade port.

When Using a PY CB 10Gb FEX Nexus B22 as a LAN Switch Blade

VLANs are not automatically configured for LAN switch blade ports.


Note

  • When automatically configuring tagged VLANs for uplink ports, the following functions must be enabled:

    • Automatic network configuration

    • Automatic configuration for uplink ports

      Set the link aggregation in advance, if the VLAN auto-configuration of the external ports making up the link aggregation is to be enabled.

  • When configuring the port VLAN for an uplink port, manually configure the settings from the server resource tree on the ROR console.

  • Creating the following network resources may generate network loops.

    • Automatically configuring VLAN for an uplink port

    • Specifying multiple uplink ports on a single LAN switch blade

      In these cases, take actions to prevent network loops, such as disconnecting the cables for uplink ports, and then create network resources.

  • Untagged VLAN 1 cannot be used as an external port that is the target of VLAN auto-configuration.
    If untagged VLAN 1 is to be used, disable VLAN auto-configuration and set the VLAN manually.

  • The VLAN set for external ports by VLAN auto-configuration will not be automatically deleted even if the relevant network resource is deleted.
    The infrastructure manager should check the network configuration, and if the VLAN settings of the external ports are deemed unnecessary, then they should be deleted from the VLAN settings for LAN switch blades in the ROR console.

  • VLAN auto-configuration for external ports that compose link aggregations can be used for LAN switch blades in the following blade servers where the mode is switch or end host.

    • Blade Servers

      • PRIMERGY BX400 series servers

      • PRIMERGY BX900 series servers

    • Switch Blade

      • PY CB Eth switch/IBP 10Gb 18/8

      • PY CB Eth Switch 10/40Gb 18/8+2

      • PY CB Eth switch/IBP 1Gb 36/8+2

      • PY CB Eth switch/IBP 1Gb 36/12

      • PY CB Eth switch/IBP 1Gb 18/6

  • Automatic configuration is not performed for external ports of PY CB DCB SW 10Gb 18/6/6.
    If configuration of a VLAN is necessary for an uplink port, configure it manually.
    For details on how to configure VLAN settings, refer to the manual of the relevant hardware.

See

For details on how to create network resources which automatically configure VLANs for LAN switch blade uplink ports, refer to "7.4.2 Changing VLANs Set for External Connection Ports of LAN Switch Blades" in the "User's Guide for Infrastructure Administrators (Resource Management) CE".

When Using Fujitsu PRIMERGY Converged Fabric Switch Blade (10 Gps 18/8+2) as an Ethernet Fabric

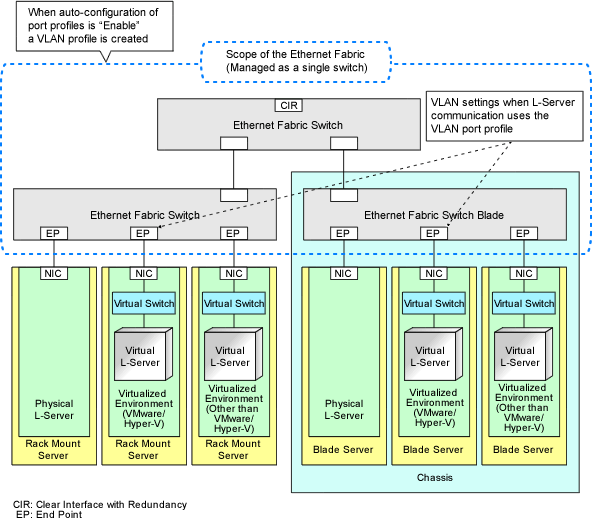

Refer to "9.4.1.9 Automatic Network Configuration for Ethernet Fabric Switches (Converged Fabric)".

9.4.1.2 Network Configuration for Blade Servers (Physical/Virtual L-Servers)

Automatic Network Configuration

When the NIC for an L-Server and a network resource are connected, the network is automatically configured.

The explanation given here is for a non-redundant configuration of a LAN switch blade. For automatic configuration items including redundant configuration, refer to "Table 9.1 Network Configurations for Blade Servers".

For details on the timing of automatic configuration, refer to "Table 2.5 Timing of Automatic Network Settings Execution (Switches)".

For the configurations that support automatic configuration, refer to the following:

See

  • For details on the rcxadm nicdefctl command, refer to "5.15 rcxadm nicdefctl" in the "Reference Guide (Command/XML) CE".

  • For details on the server NIC definitions, refer to "15.13 Server NIC Definition" in the "Reference Guide (Command/XML) CE".

Figure 9.16 Automatic Network Configuration for Blade Servers

Table 9.1 Network Configurations for Blade Servers

Physical L-Server

Virtual L-Server

VMware

Hyper-V

RHEL5-Xen

RHEL-KVM

OVM for x86 2.2

Solaris Zones

OVM for SPARC

Citrix XenServer

OVM for x86 3.x

Redundancy (*1)

Redundancy (*1)

Redundancy (*1)

Redundancy (*1)

Redundancy (*1)

Redundancy (*1)

Redundancy (*1)

Redundancy (*1)

Redundancy (*1)

Redundancy (*1)

Without

With

Without

With

Without

With

Without

With

Without

With

Without

With

Without

With

Without

With

Without

With

Without

With

A

Creating virtual switches and connecting to NICs (*2)

-

-

Yes (*3)

Yes

Yes (*3)

Yes (*4)

No

No

No

No

No

No

No

No

No

No

No

No

No

No

B

Automatic connection between L-Server virtual NICs and virtual switches (*5)

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

C

Automatic VLAN ID configuration for L-Server virtual NICs

-

-

Yes

Yes

Yes

Yes

No

No

No

No

No

No

No

No

No

No

No

No

No

No

D

Configurations for the server blade ports of LAN switch blades

Yes (*6)

Yes

Yes (*3, *7)

Yes (*7)

Yes (*3, *7)

Yes (*4, *7)

No

No

No

No

No

No

No

No

No

No

No

No

No

No

E

Automatic VLAN ID configuration for uplink ports that are connected to external L2 switches (*7)

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes: Configured in Resource Orchestrator
No: Not configured in Resource Orchestrator
-: None
*1: LAN redundancy.
For physical L-Servers, the NIC of the physical L-Server is the target of LAN redundancy.
For virtual L-Servers, the NIC connected to the virtual switch is the target of LAN redundancy.
*2: Replace as follows for each server virtualization software.

Table 9.2 Correspondence Table for Server Virtualization Software

VMware

Creating virtual switches and port groups

Hyper-V

Creating a virtual network

RHEL5-Xen
RHEL-KVM
OVM for x86 2.2

Creating a virtual bridge

Citrix XenServer

Creating a network on XenServer

OVM for x86 3.x

Creating a virtual machine network

OVM for SPARC

Creating a virtual switch

Information

  • When using VMware as server virtualization software, the following configurations are automatically performed:

    • Virtual switch creation

    • VLAN configuration for virtual switches

    • Teaming connection of virtual switches and NICs

  • When using Hyper-V as server virtualization software, the following configurations are automatically performed:

    • Virtual network creation

    • VLAN configuration for virtual networks

    Teaming connections of virtual networks and NICs are automatic if teaming settings are configured for NICs in advance.

*3: In order to configure the network automatically, it is necessary to create a server NIC definition suitable for the server to be configured, and then reflect the definition on the manager using the rcxadm nicdefctl commit command in advance.
For details on the server NIC definitions, refer to "15.13 Server NIC Definition" in the "Reference Guide (Command/XML) CE".
For details on the rcxadm nicdefctl command, refer to "5.15 rcxadm nicdefctl" in the "Reference Guide (Command/XML) CE".
When not using server NIC definitions, manually configure the network.
*4: Automatic configuration is possible for redundancy configurations with Intel PROSet or GLS.
*5: Replace as follows for each server virtualization software.

Table 9.3 Correspondence Table for Server Virtualization Software

VMware

Connections Virtual NICs of L-Servers and Port Groups of Virtual Switches

Hyper-V

Connections Virtual NICs of L-Servers and Virtual Networks

RHEL5-Xen
RHEL-KVM
OVM for x86 2.2

VLAN ID configuration for the L-Server virtual network interface and connection with virtual bridges which have been created manually in advance

Citrix XenServer

Connection of the L-Server virtual network interface with the network on XenServer

OVM for x86 3.x

Connection of the L-Server virtual network interface with the virtual machine network

OVM for SPARC

Connection of the L-Server virtual network interface with the virtual switch

Information

If VMware is used as the server virtualization software and the same VLAN ID is used for the service console and port group, the port group and L-Server can be connected by creating a VMware excluded port group definition file.
For details on VMware excluded port group definition files, refer to "15.14 VMware Exclusion Port Group Definition File" in the "Reference Guide (Command/XML) CE".

*6: Configure a port VLAN or a tagged VLAN. For details on how to configure VLANs, refer to "5.4.4.2 Configuring VLANs on Internal Connection Ports" in the "User's Guide for Infrastructure Administrators (Resource Management) CE".
*7: Configure a tagged VLAN.


In Resource Orchestrator, when a virtual L-Server is connected to the admin LAN that has the same subnet address as the admin server, to preserve security, virtual switches are not automatically created.

Ensure the network security of the communication route between the admin server and the virtual L-Server, and then create virtual switches.

Manual Network Configuration

For configurations other than the default blade server configuration that supports automatic network configuration, manually configure the network, referring to the following:

9.4.1.3 Network Configuration for Rack Mount or Tower Servers (Physical/Virtual L-Servers)

For rack mount or tower servers, make connections between L-Server virtual NICs and virtual switches.

Figure 9.17 Network Configuration for Rack Mount or Tower Servers

Table 9.4 Network Configurations for Rack Mount or Tower Servers

Physical L-Server

Virtual L-Server

VMware

Hyper-V

RHEL5-Xen

RHEL-KVM

OVM for x86 2.2

Solaris Zones

OVM for SPARC

Citrix XenServer

OVM for x86 3.x

Redundancy (*1)

Redundancy (*1)

Redundancy (*1)

Redundancy (*1)

Redundancy (*1)

Redundancy (*1)

Redundancy (*1)

Redundancy (*1)

Redundancy (*1)

Redundancy (*1)

Without

With

Without

With

Without

With

Without

With

Without

With

Without

With

Without

With

Without

With

Without

With

Without

With

A

Creating virtual switches and connecting to NICs (*2)

-

-

Yes

Yes

No

No

No

No

No

No

No

No

No

No

No

No

No

No

No

No

B

Automatic connection between L-Server virtual NICs and virtual switches (*3)

-

-

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

C

Configuration of VLAN IDs used by L-Server virtual NICs

-

-

Yes

Yes

Yes

Yes

No

No

No

No

No

No

No

No

No

No

No

No

No

No

D

Configuration of LAN switch ports for external L2 switches (*4)

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes: Configured in Resource Orchestrator
No: Not configured in Resource Orchestrator
*1: LAN redundancy.
For physical L-Servers, the NIC of the physical L-Server is the target of LAN redundancy.

For virtual L-Servers, the NIC connected to the virtual switch is the target of LAN redundancy.

*2: In order to configure the network automatically, it is necessary to create a server NIC definition suitable for the server to be configured, and then reflect the definition on the manager using the rcxadm nicdefctl commit command in advance.
For details on the server NIC definitions, refer to "15.13 Server NIC Definition" in the "Reference Guide (Command/XML) CE".
For details on the rcxadm nicdefctl command, refer to "5.15 rcxadm nicdefctl" in the "Reference Guide (Command/XML) CE".

Replace as follows for each server virtualization software.

Table 9.5 Correspondence Table for Server Virtualization Software

VMware

Creating virtual switches and port groups

Hyper-V

Creating a virtual network

RHEL5-Xen
RHEL-KVM
OVM for x86 2.2

Creating a virtual bridge

Citrix XenServer

Creating a network on XenServer

OVM for x86 3.x

Creating a virtual machine network

OVM for SPARC

Creating a virtual switch

Information

When using VMware as server virtualization software, the following configurations are automatically performed:

  • Virtual switch creation

  • VLAN configuration for virtual switches

  • Teaming connection of virtual switches and NICs

The model names of rack mount or tower servers that can perform virtual switch creation, VLAN configuration, and teaming connection are as follows:

  • RX100 S5/S6

  • RX200 S4/S5/S6/S7/S8

  • RX300 S4/S5/S6/S7/S8

  • RX600 S4/S5

  • RX900 S1

  • RX2520 M1

  • RX2530 M1/M2/M4

  • RX2540 M1/M2/M4

  • RX4770 M1/M2/M4

  • TX150 S6/S7

  • TX200 S5/S6

  • TX300 S4/S5/S6

*3: Replace as follows for each server virtualization software.

Table 9.6 Correspondence Table for Server Virtualization Software

VMware

Connections Virtual NICs of L-Servers and Port Groups of Virtual Switches

Hyper-V

Connections Virtual NICs of L-Servers and Virtual Networks

RHEL5-Xen
RHEL-KVM
OVM for x86 2.2

VLAN ID configuration for the L-Server virtual network interface and connection with virtual bridges which have been created manually in advance

Solaris Zones

Connection of the L-Server virtual network interface with the host network interface

Citrix XenServer

Connection of the L-Server virtual network interface with the network on XenServer

OVM for x86 3.x

Connection of the L-Server virtual network interface with the virtual machine network

OVM for SPARC

Connection of the L-Server virtual network interface with the virtual switch

Information

If VMware is used as the server virtualization software and the same VLAN ID is used for the service console and port group, the port group and L-Server can be connected by creating a VMware excluded port group definition file.

See

For details on VMware excluded port group definition files, refer to "15.14 VMware Exclusion Port Group Definition File" in the "Reference Guide (Command/XML) CE".

*4: Configured by network device automatic configuration.

9.4.1.4 IP Address Auto-Configuration (Virtual L-Servers)

[Physical Servers] [VMware] [Hyper-V] [KVM]
If a subnet address has been set for the network resource, the IP address can be automatically set when deploying an image to an L-Server.
The settings for the IP address, subnet mask, and default gateway are configured according to DHCP settings.

[Hyper-V]
If the guest OS type is Windows, and integration services are installed, IP addresses can be set automatically.

[KVM]
When the guest OS type is Linux, IP addresses can be automatically configured.

[Xen] [OVM for x86 2.2]
Automatic configuration of IP addresses is not supported.

If a subnet address is set for a network resource, set an IP address manually after deploying an image to an L-Server (Also set an IP address manually on the DNS server).
For details on how to check IP addresses, refer to the Note of "16.3.4 [Network] Tab" in the "User's Guide for Infrastructure Administrators (Resource Management) CE".

If no subnet address has been set, manually set a subnet address for operation on the DHCP server after deploying an image to an L-Server.

9.4.1.5 Automatic Configuration for L2 Switches

When an L-Server or a network device (a firewall or server load balancer) is deployed on an L-Platform, definitions such as interfaces can be automatically configured on the L2 switch on the communication route, using a script created in advance.

9.4.1.6 Available Network Configurations

Available network configurations and configuration methods in Resource Orchestrator are given below.

PRIMERGY Blade Servers

PRIMERGY Rack Mount Servers, PRIMERGY Tower Servers, or PRIMEQUEST Servers

Point

9.4.1.7 Network Settings for Physical L-Servers

When configuring NIC redundancy and tagged VLANs, or specifying a Red Hat Enterprise Linux image, the network on the OS is not automatically configured.
Collect an image with the preset script that configures the network at initial OS startup, and then create an L-Server using that image.

Physical L-Server network information (such as IP address, NIC redundancy, and tagged VLAN settings) is transferred to the OS as a network information file when the image is deployed to the OS.
For details on how to configure a network using a network information file, refer to "7.8 Network Redundancy and VLAN Settings of L-Servers" in the "Setup Guide CE".

When network configuration is not performed on the OS, create the L-Server then connect to it via the admin LAN or using the console, and configure the network on the OS on the L-Server.

Note

Depending on operating conditions of the network configuration script, a communication error may occur on the business application that is installed on the server.

Since this error cannot be detected by Resource Orchestrator, please check any network errors that occur on user applications to detect it.

When those errors occur, the server or the application must be restarted.

Restart the server using the network configuration script.

9.4.1.8 Modifying Network Resource Specifications

The following network resource specifications can be modified.

For details on how to modify network specifications, refer to "7.5 Modifying Network Resource Specifications" in the "User's Guide for Infrastructure Administrators (Resource Management) CE", and "15.6.2 Modification" in the "Reference Guide (Command/XML) CE".

9.4.1.9 Automatic Network Configuration for Ethernet Fabric Switches (Converged Fabric)

Resource Orchestrator manages all devices comprising an Ethernet fabric (Converged Fabric) as a single network device. To register them as a network device, it is necessary to perform the following operations.

When creating a network resource, a VLAN port profile is created for an Ethernet fabric switch (Converged Fabric) with port profile configuration enabled.

Creating a VLAN port profile enables the port profile migration function (hereinafter AMPP) on the L-Server.

AMPP works with L-Server migration and automatically migrates the VLAN settings of the physical port of the Ethernet fabric switch (Converged Fabric) to the physical port of the Ethernet fabric switch (Converged Fabric) adjacent to the migration target server.

Information

The target devices of automatic configuration using this function are as follows:

  • Fujitsu PRIMERGY Converged Fabric Switch Blade (10 Gbps 18/8+2)

  • Fujitsu Converged Fabric Switch

Figure 9.18 Automatic Network Configuration for Ethernet Fabric Switches (Converged Fabric)

Table 9.7 AMPP Availability for Virtual L-Servers

Profile

Physical L-Servers

Virtual L-Server

Rack Mount and Tower Servers

Blade Servers

Rack Mount and Tower Servers

Blade Servers

VMware, Hyper-V

Other

VMware, Hyper-V

Other

VLAN port

-

-

Yes

-

Yes

-

Yes: Configured in Resource Orchestrator
No: Not configured in Resource Orchestrator
-: None

Table 9.8 Network Configurations for Ethernet Fabric Switches (Converged Fabric)

Physical L-Servers

Virtual L-Server

VMware

Hyper-V

RHEL5-Xen

RHEL-KVM

OVM for x86 2.2

Solaris Zones

OVM for SPARC

Citrix XenServer

OVM for x86 3.x

Redundancy (*1)

Redundancy (*1)

Redundancy (*1)

Redundancy (*1)

Redundancy (*1)

Redundancy (*1)

Redundancy (*1)

Redundancy (*1)

Redundancy (*1)

Redundancy (*1)

Without

With

Without

With

Without

With

Without

With

Without

With

Without

With

Without

With

Without

With

Without

With

Without

With

[When port profile configuration is enabled]
Creation of VLAN profiles

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

[When port profile configuration is enabled]
VLAN configuration of the internal port for L-Server communications according to the link between the NIC of the L-Server and the VLAN port profile

-

-

Yes

Yes

Yes

Yes

-

-

-

-

-

-

-

-

-

-

-

-

-

-

Automatic VLAN ID configuration for uplink ports of LAN switch blades

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

Automatic VLAN ID configuration for uplink ports of Ethernet fabric switches (Converged Fabric)

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

Yes: Configured in Resource Orchestrator
No: Not configured in Resource Orchestrator
-: None

*1: LAN redundancy.

PreviousNext
Copyright 2010-2018 FUJITSU LIMITED
