This section explains the functions provided by ROR console.
ROR console has two parts: "operation windows for tenant administrators and tenant users" and "operation windows for infrastructure administrators".
Windows intended for Tenant Administrators and tenant users are provided for L-Platform and user information operations. These windows are configured by Tenant Administrators themselves, and have been provided to reduce the Infrastructure Administrator workload.
The operation window regarding L-Platform and user information and the dashboard window for monitoring resource operation status and usage rate of resource pools are provided for infrastructure administrators. These windows are provided to enable Infrastructure Administrators to display and operate all L-Platform and tenant information and to access important information quickly.
The ROR console displays are customized for the user's role, to provide appropriate functions to each user. For example, tabs that the current user cannot operate are not displayed.

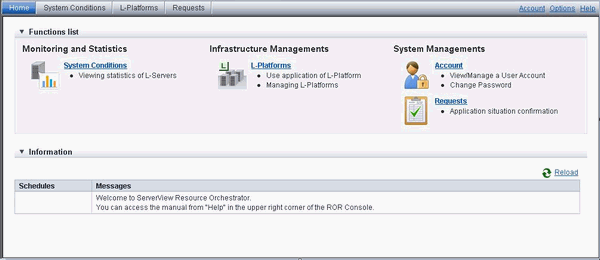

Figure 1.1 ROR Console
The table below shows the functions provided by the ROR console.
These functions correspond to the tabs displayed at the top of the ROR console.
Function | Overview | Tenant user |
|---|---|---|
Home | The window displayed immediately after login to the ROR console. A function list and notifications are displayed. | Yes |
System Conditions | Displays L-Server performance information and configuration information | Yes |
L-Platform | A window for managing L-Platform | Yes |
Request | A window for assessing and approving L-Platform usage applications and other applications from tenant users | Yes |
Account | A window for changing a logged in user's information and password | Yes |
Option | Sets the [Home] Tab as the window displayed at login. | Yes |
Help | Displays this product's manual | Yes |
Yes: Displayed (However, some functions may not be displayed according to the user's access rights. For details on privileges, check with the infrastructure administrator.)
No: Not displayed
Refer to "Chapter 3 Home", and subsequent chapters for information on these functions.
