4.1.3 Configuring Settings for L2 Switches

Configure the VLAN IDs of all network resources used on the L-Platform on the connection ports of the L2 switch connected to the NIC of the dedicated server for NS Appliances.

This operation is necessary when using rack mount servers.

For details on configuring settings, refer to L2 switch manuals.

Information

It is necessary to configure L2 switches for each dedicated server for NS Appliances.

When sharing an NS Appliance among multiple L-Platforms, it is necessary to set the VLAN IDs of all network resources used by each L-Platform.

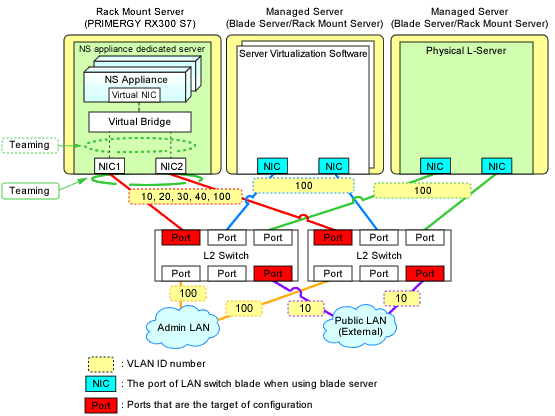

Figure 4.3 Configuration Targets of L2 Switches and Network Configuration after Configuration when Performing Auto-configuration Using User Customization Mode

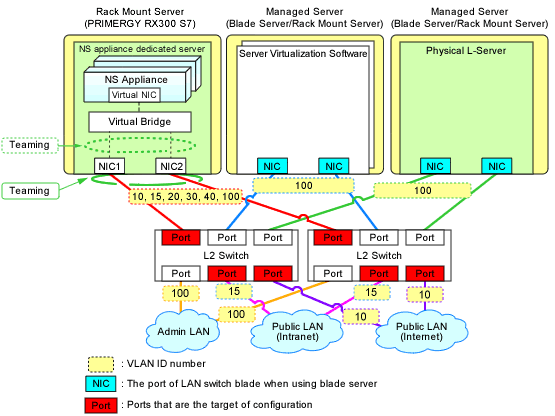

Figure 4.4 Configuration Targets of L2 Switches and Network Configuration after Configuration when Performing Auto-configuration Using Simple Configuration Mode
