Configure the VLAN IDs of all network resources used on the L-Platform on the internal connection ports of the LAN switch blades connected to the NIC of the dedicated server for NS Appliances.
This operation is necessary when using blade servers.
From the GUI:
Right-click the server the dedicated server for NS Appliance was created on from the ROR console server resource tree.
In the displayed menu, select [Modify]-[Network Settings].
In the displayed [Network Settings] window, configure the VLAN IDs to use.
Command
Execute VLAN configuration of switch blade using the rcxadm nsoptctl addvlan command.
For details on the rcxadm nsoptctl command, refer to "A.2 rcxadm nsoptctl".
For details, refer to "5.4.4.2 Configuring VLANs on Internal Connection Ports" in the "User's Guide for Infrastructure Administrators (Resource Management) CE".
Information
It is necessary to configure LAN switch blades for each dedicated server for NS Appliances.
When sharing an NS Appliance among multiple L-Platforms, it is necessary to set the VLAN IDs of all network resources used by each L-Platform.
Also set the VLAN IDs for the external connection ports of LAN switch blades connected to the external network as the public LAN.
For details, refer to "5.4.4.1 Configuring VLANs on External Connection Ports" in the "User's Guide for Infrastructure Administrators (Resource Management) CE".

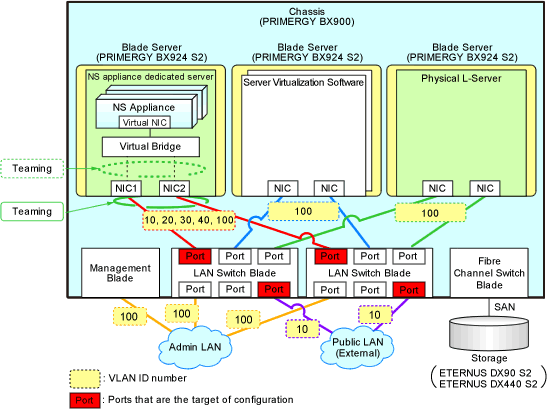

Figure 4.1 Configuration Targets of LAN Switch Blades and Network Configuration after Configuration when Performing Auto-configuration Using User Customization Mode

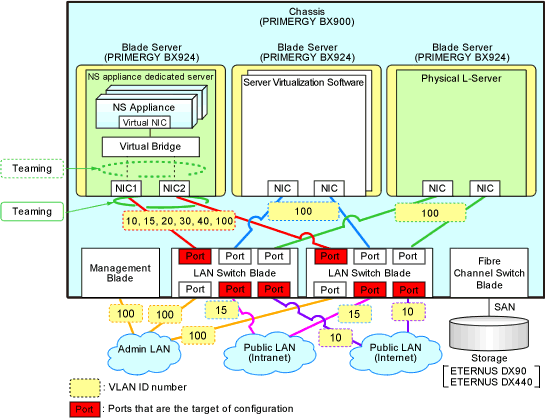

Figure 4.2 Configuration Targets of LAN Switch Blades and Network Configuration after Configuration when Performing Auto-configuration Using Simple Configuration Mode
