This section describes the information that is displayed in a logical map of the network view.
The logical map can be displayed using the view pointer.
The logical resources such as L-Platforms and L-Servers that are deployed using the functions of Resource Orchestrator and the information of connections between those logical resources are displayed.
Selecting a resource displays a blue frame around that resource.
Adjacent L-Servers and network resources are indicated by light blue frames.
When a selected resource is expanded, information about links between resources in the expanded resource is displayed.

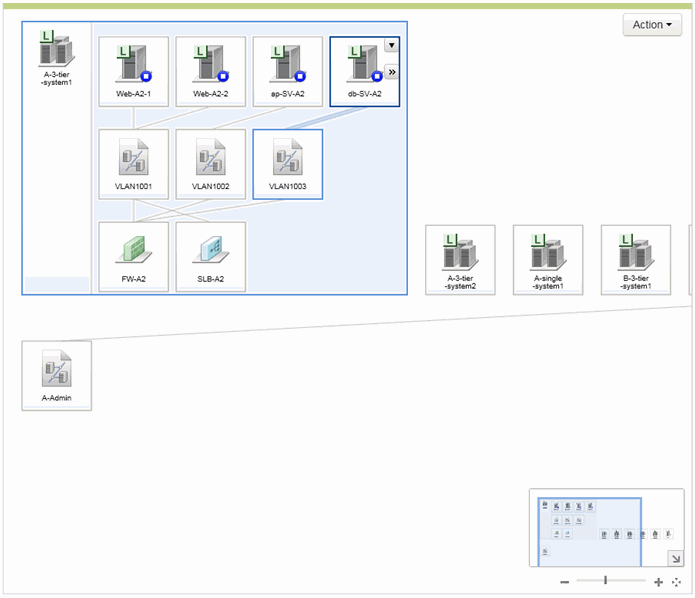

Figure 11.9 Display Example of Network View (Logical Map)

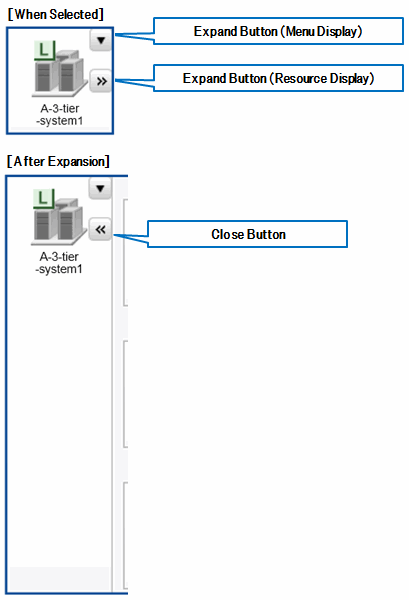

Figure 11.10 Display Example of Resources
When one of the following resources is selected, two buttons are displayed: one on the upper-right and one on the center-right of the icon.
When the upper right button ("▼") is clicked, or the icon is right-clicked, the menu is displayed.
When the button on the middle right (">>") is clicked, the content of the resource is expanded.
L-Platforms
L-Servers
When the button on the middle right ("<<") displayed in the icon of the expanded resource is clicked, the expander of each resource is closed.
