4.3 Chart Display

This section explains the charts for each resource pool.

The resource pool charts display resource pool use rates as polyline graphs for each resource pool. If there are multiple resource pools, the use rates of the display periods of each of the resource pools are added together, and the top five are displayed in order, starting with the one with the highest total.

The use rate graph displays the daily average. The displayed data will be updated every five minutes.

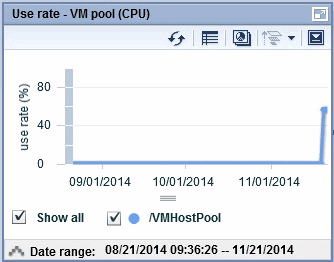

A VM pool (Memory) window example is shown below.

Detailed information can be displayed in other charts in the resource pool charts.

The data displayed in the detailed information will be updated every five minutes.

The table below shows the detailed information and usage scenarios. Refer to Step 2 under "4.2 Pool Conditions Display" for information on the operation method.

The table below shows the other charts.

Type	Display format	Detailed information	Usage scenario
Relationship chart (Usage state)	Table	Displays the total amount and the used amount of the resource pool. The units are as follows: VM pool (CPU): GHz VM pool (memory): GB Storage pool: GB Network pool: Number of networks Server pool: Number of physical servers Address pool: Number of addresses	Use this chart to check the number values (absolute values) for the used amount and number of networks/servers/addresses.
Relationship chart (Allocatable L-Servers) (*1)	Table	Displays the number of L-Servers that can be deployed to the resource pool (*2)	If there is insufficient free space or too few servers, use this chart to check the number of L-Servers that can be deployed.

Type

Display format

Detailed information

Usage scenario

Relationship chart (Usage state)

Table

Displays the total amount and the used amount of the resource pool.
The units are as follows:

VM pool (CPU): GHz
VM pool (memory): GB
Storage pool: GB
Network pool: Number of networks
Server pool: Number of physical servers
Address pool: Number of addresses

Use this chart to check the number values (absolute values) for the used amount and number of networks/servers/addresses.

Relationship chart (Allocatable L-Servers) (*1)

Table

Displays the number of L-Servers that can be deployed to the resource pool (*2)

If there is insufficient free space or too few servers, use this chart to check the number of L-Servers that can be deployed.

*1: The relationship chart that displays the number of deployable L-Servers is not displayed for network pools and address pools. L-Servers can be deployed even if the network pool and address pool are exhausted.

*2: For all storage pools that have thin provisioning function enabled, zero is displayed as the number of L-Servers that can be deployed, regardless of the L-Platform Template type. Specify thin provisioning function enable/disable separately for each storage pool.

VM pool (CPU) relationship chart windows are shown below.

Example: The number values (absolute values) for the used amount and number is shown below.

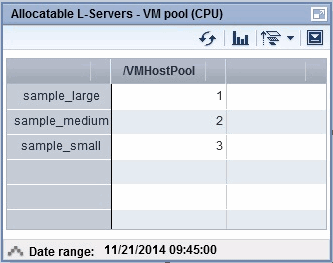

Example: L-Servers that can be deployed is shown below.
