Cloud Services Management V1.1.0 User's Guide for Platform Provider
FUJITSU Software

2.2.4 The Approval Process

In the process of addition, modification, and deletion of a user, a request is submitted and the status of the user changes to under request for the corresponding operation.

Use the following route to approve addition, modification, and deletion requested by a platform provider representative.

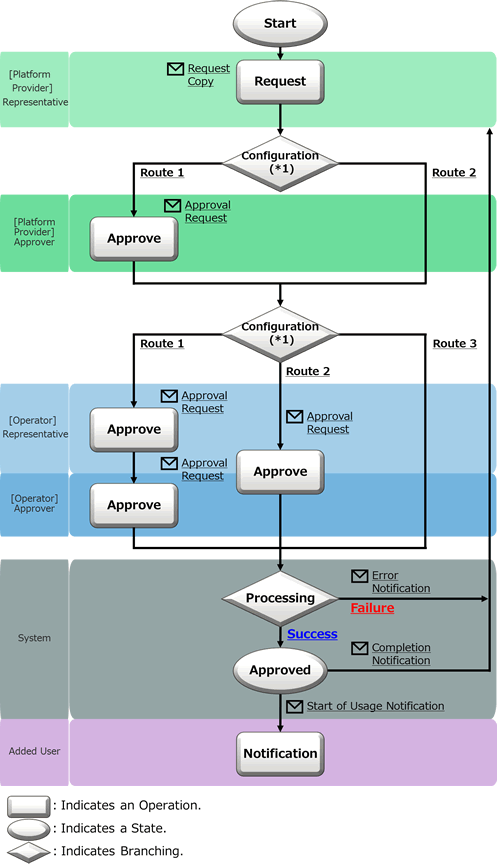

Figure 2.3 The User Information Approval Flow (for Platform Providers - Representative)

*1: The approval flow is defined according to the settings performed by the operators. Contact the operators.

In [Operation] in the diagram above, not only approval, but also rejection and cancellation operations can be performed. For details on operations related to and statuses of requests, refer to "Figure 5.1 Changes in Request Status".


Use the following route to approve addition, modification, and deletion requested by a platform provider approver.

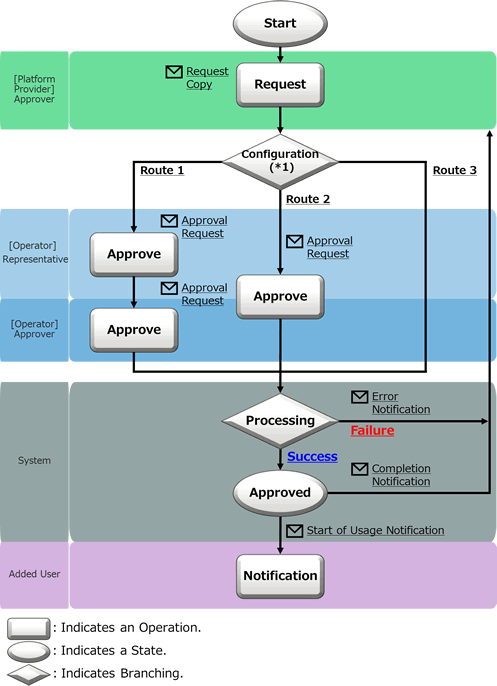

Figure 2.4 The User Information Approval Flow (for Platform Providers - Approver)

*1: The approval flow is defined according to the settings performed by the operators. Contact the operators.

In [Operation] in the diagram above, not only approval, but also rejection and cancellation operations can be performed. For details on operations related to and statuses of requests, refer to "Figure 5.1 Changes in Request Status".

Email Notifications Related to Approvals

After a request is submitted or intermediate approval is granted, a request for approval email is sent to all subsequent approvers in the approval flow.

In addition, a notification email with a copy of the request is sent to the user who performs the operation.

After the final approval is granted, the details of the addition or modification are reflected to the system. Upon reflection, a notification of approval completion email is sent to the requester. After that, a notification of availability email is sent to added users. When the reflection fails for some reason, an error notification email is sent to the requester (TO) and the request operator (CC).

Confirmation of Request Statuses

To confirm the approval statuses and details of requests for addition, modification, and deletion, view the [Request Management] window.

For details on how to perform the main operations in the [Request Management] window, refer to "Chapter 5 Request Management".
