PRIMECLUSTER Installation and Administration Guide 4.3

G.7.2 Configuring a Cluster System Between Guest OSes on One ESX Host

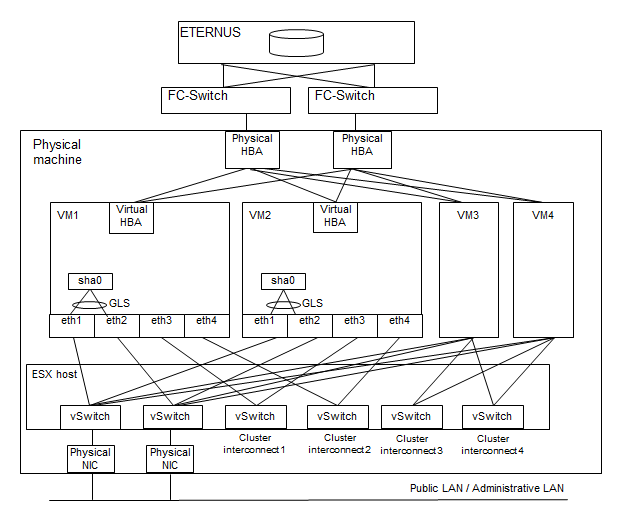

Figure G.3 Sample configuration of a cluster between guest OSes on one ESX host

Note

• Perform time synchronization with the guest OS set as an NTP client.

• Create at least two network systems for the cluster interconnect.

Used hardware

• RX300 S6 x 1

• FC-Switch x 2

• LAN card x 2

• Fibre channel card x 2

• Disk array unit x 1

Used software

• Red Hat Enterprise Linux

• PRIMECLUSTER 4.3

• VMware vSphere

• Microsoft Internet Explorer (installed on the operation management personal computer)

• Java SE Runtime Environment latest version (installed on the operation management personal computer)

G.7.2.1 Cluster Configuration Worksheet

Shown below is an example of the Cluster Configuration Worksheet.

G.7.2.2 GLS Setup Worksheet

Shown below is an example of the GLS Setup Worksheet.

Worksheet for NIC switching mode (virtual IP takeover)

G.7.2.3 GDS Configuration Worksheet

Shown below is an example of the GDS Configuration Worksheet.
