G.7.1 Configuring a Cluster System Between Guest OSes on Two ESX Hosts

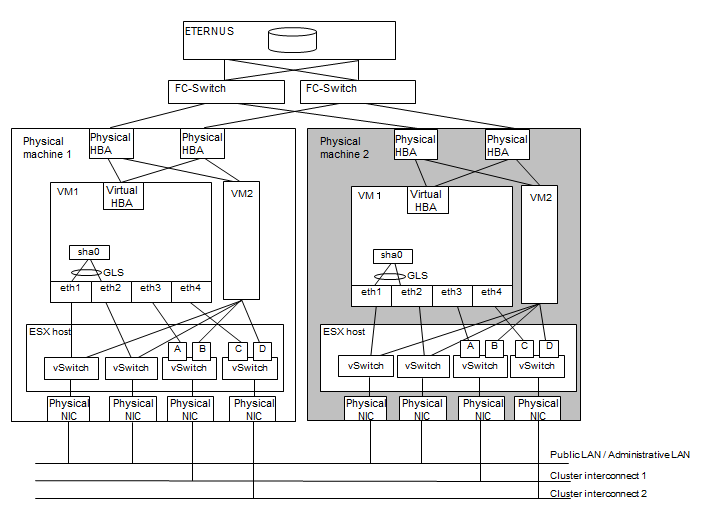

Figure G.2 Sample configuration of a cluster between guest OSes on two ESX hosts

Note

• Perform time synchronization with the guest OS set as an NTP client.

• For sharing a vSwitch by multiple clusters, allocate a port group to each cluster system via VLAN.

Used hardware

• RX300 S6 x 2

• FC-Switch x 2

• LAN card x 8

• Fibre channel card x 4

• Disk array unit x 1

Used software

• Red Hat Enterprise Linux

• PRIMECLUSTER 4.3

• VMware vSphere

• Microsoft Internet Explorer (installed on the operation management personal computer)

• Java SE Runtime Environment latest version (installed on the operation management personal computer)

G.7.1.1 Cluster Configuration Worksheet

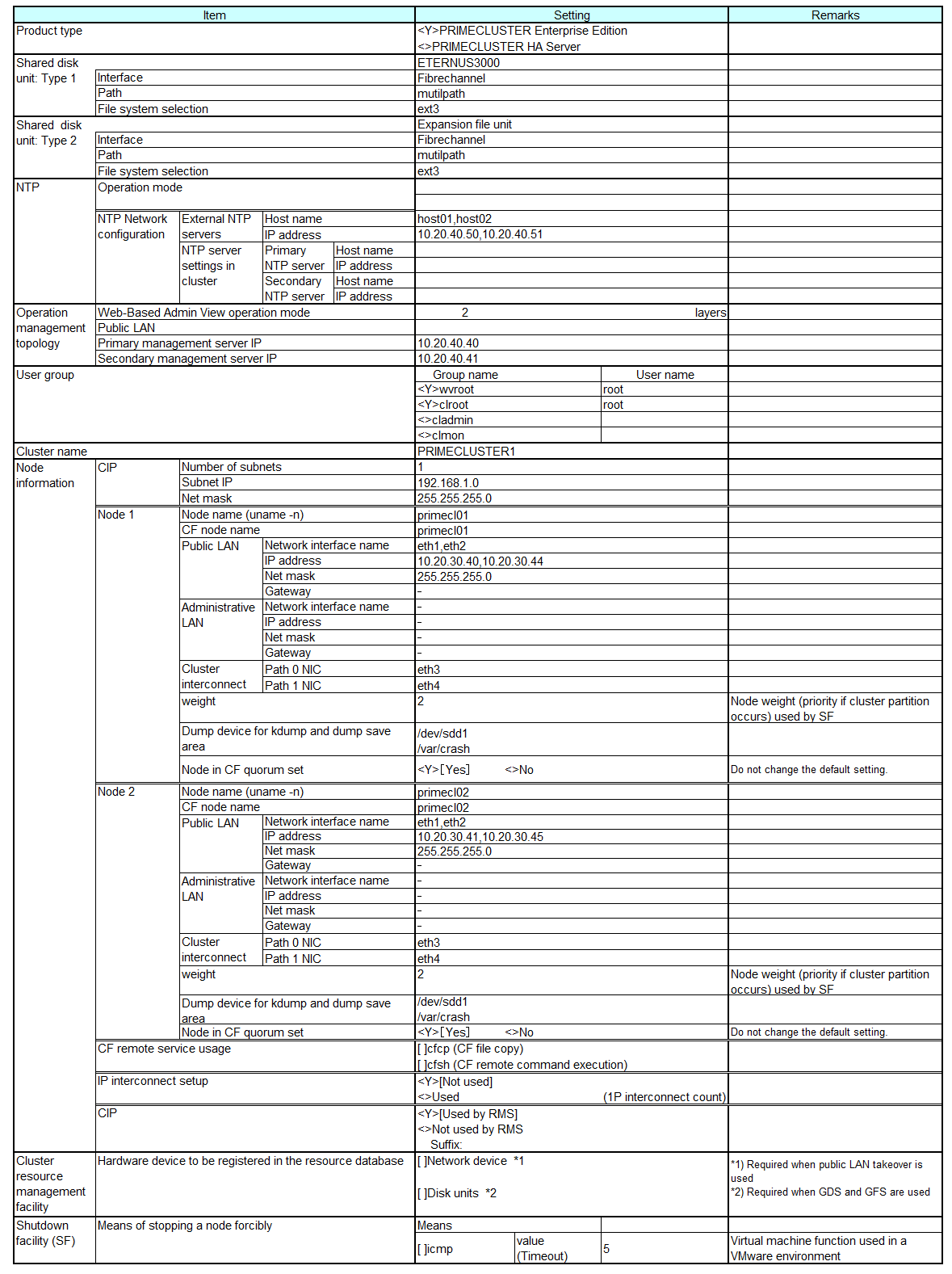

Shown below is an example of the Cluster Configuration Worksheet.

G.7.1.2 GLS Setup Worksheet

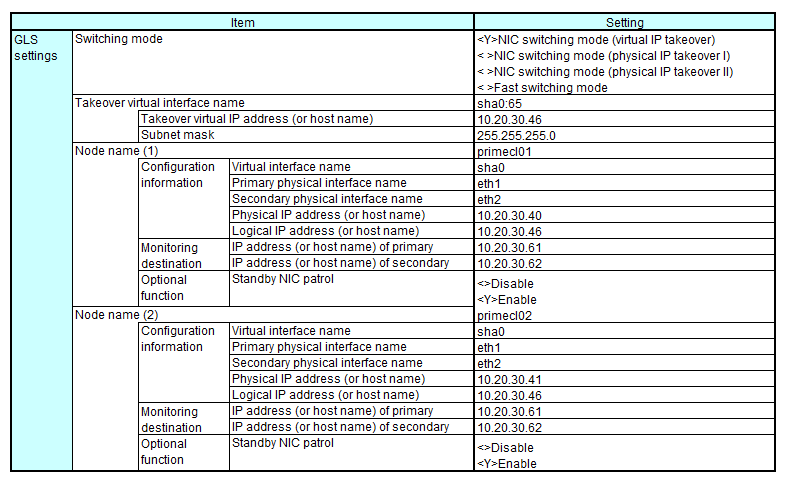

Shown below is an example of the GLS Setup Worksheet.

Worksheet for NIC switching mode (virtual IP takeover)

G.7.1.3 GDS Configuration Worksheet

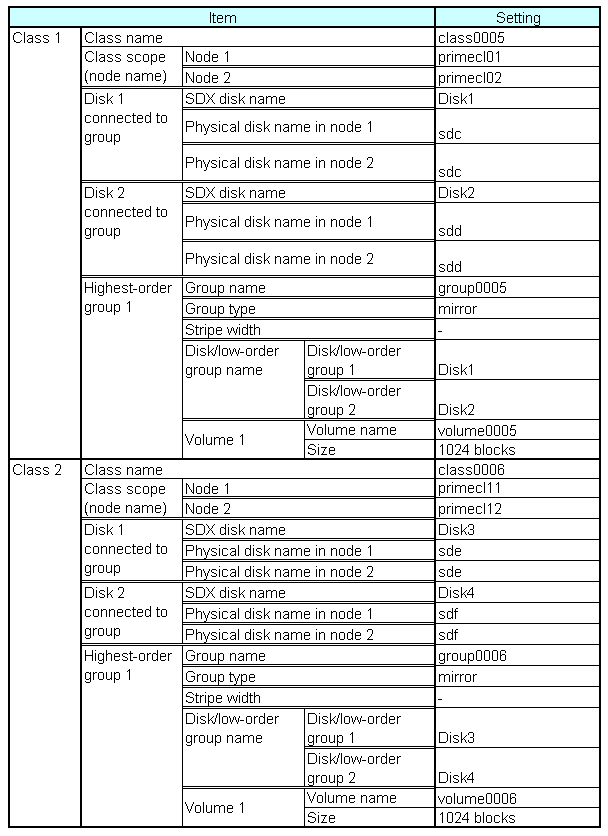

Shown below is an example of the GDS Configuration Worksheet.
