5.1.2 Setting Up the Shutdown Facility

This section describes the setup procedure of the shutdown facility for the PRIMERGY, PRIMEQUEST, and virtual machine environment.

The setup procedure for the shutdown facility is different depending on the model/configuration. Check the hardware model/configuration to set up the appropriate shutdown agent.

The following shows the shutdown agents required for each hardware model/configuration.

Table 5.2 Shutdown agent for PRIMERGY

Server model

SA_lkcd

SA_ipmi

SA_blade

BX620/920/960 series

Y

Y (*1)(*2)

Y

RX200/300/500/600 series

Y

Y

-

TX200/300 series

Y

Y

-

*1) For use in combination with ServerView Resource Orchestrator Virtual Edition in the BX620/920/960 series, set SA_ipmi.

*2) The combination of the BMC or iRMC user name and password must be the same on all blades.

Table 5.3 Shutdown agent for PRIMEQUEST

Server model

MMB

Panic

Reset

PRIMEQUEST

1000 series

SA_mmbp

SA_mmbr

Table 5.4 Shutdown agent for virtual machine environment (Xen environment)

Server model

Cluster configuration

Virtual machine function (Xen environment)

Guests in a unit

Guests in other units

vmSP

Panic

Reset

Panic

Reset

PRIMEQUEST

1000 series

SA_vmSPgp

SA_vmSPgr

SA_vmSPgp

SA_vmSPgr

Table 5.5 Shutdown agent for virtual machine environment (KVM environment)

Server model

Cluster configuration

Virtual machine function (KVM environment)

Guests in a unit

Guests in other units

libvirt

Panic

Reset

Panic

Reset

PRIMERGY

SA_libvirtgp

SA_libvirtgr

SA_libvirtgp

SA_libvirtgr

PRIMEQUEST

1000 series

SA_libvirtgp

SA_libvirtgr

SA_libvirtgp

SA_libvirtgr

Also, when using Host OS failover function, set the following shutdown agents. The SA_vmSPg, SA_vmSPgr, SA_libvirtgp, and SA_libvirtgr of the shutdown agent that are set on the guest OS are the same as those used in the virtual machine function. For details on SA_vmSPgp, SA_vmSPgr, SA_libvirtgp, and SA_libvirtgr, see "5.1.2.3.1 Setting up the shutdown daemon" and "5.1.2.5.2 libvirt". Set SA_vmchkhost according to the procedures described in "5.1.2.5.3 vmchkhost".

Table 5.6 Shutdown agent for Host OS failover function (Xen environment)

Server model

Cluster configuration

Virtual machine function (Xen environment)

Guests in other units (Host OS failover function)

MMB

vmSP

vmchkhost

Panic

Reset

Panic

Reset

Checking the status

PRIMEQUEST 1000 series

Host OS

SA_ mmbp

SA_mmbr

-

-

-

Guest OS

-

-

SA_vmSPgp

SA_vmSPgr

SA_vmchkhost

Table 5.7 Shutdown agent for Host OS failover function (KVM environment)

Server model

Cluster configuration

Virtual machine function (KVM environment)

Guests in other units (Host OS failover function)

libvirt

vmchkhost

Depending on server model

Panic

Reset

Checking the status

PRIMERGY

Host OS

See Table 5.2.

-

-

-

Guest OS

-

SA_libvirtgp

SA_libvirtgr

SA_vmchkhost

PRIMEQUEST 1000 series

Host OS

See Table 5.3

-

-

-

Guest OS

-

SA_libvirtgp

SA_libvirtgr

SA_vmchkhost

Note

When creating a redundant administrative LAN used in the shutdown facility by using GLS, use the logical IP address takeover function of the NIC switching mode, and for the administrative LAN used in the shutdown facility, set a physical IP address.

See

For details on the shutdown facility, see the following manuals:

  • "3.3.1.7 PRIMECLUSTER SF" in the "PRIMECLUSTER Concepts Guide"

  • "8 Shutdown Facility" in the "PRIMECLUSTER Cluster Foundation (CF) Configuration and Administration Guide"

5.1.2.1 Checking the Shutdown Agent Information

Check the information of the shutdown agent to be used.

Note

Check the shutdown agent information before cluster initialization.

MMB check items

If an MMB is being used, check the following settings:

Check the settings for the user who uses RMCP to control the MMB. Log in to MMB Web-UI, and check the settings from the "Remote Server Management" window of the "Network Configuration" menu.

If the above settings have not been set, set up the MMB so that the above settings are set.

Jot down the following information related to the MMB:

Note

The MMB units have two types of users:

  • User who controls all MMB units

  • User who uses RMCP to control the MMB

The user to be checked here is the user who uses RMCP to control the MMB. Be sure to check the correct type of user.

Virtual machine check items (Xen environment)

When setting up vmSP (Virtual Machine Service Provider) to the shutdown facility in a Xen environment, log in to the host OS using SSH in order to force stop the guest OS. To do this, you need to set up the following information:

For information on the user name and password for logging in to the host OS, record it you have set up in the following:

Virtual machine check items (KVM environment)

When setting up the shutdown facility in a KVM environment, log in to the hypervisor using SSH in order to force stop the guest OS. To do this, you need to set up the following information.

For information on the user name and password for logging in to the hypervisor, record it you have set up in the following:

5.1.2.2 Survival priority

If the cluster partition occurred due to a fault in the cluster interconnect, all the nodes would still be in the state of accessing the user resources. For details on the cluster partition, see "1.2.2.1 Protecting data integrity" in "PRIMECLUSTER Concepts Guide."

In order to guarantee the data consistency in the user resources, SF must determine the node groups of which nodes remain to survive and which nodes need to be forcibly stopped.

The weight assigned to each node group is referred to as "Survival priority" in PRIMECLUSTER.

The greater the weight of the node, the higher the survival priority. Conversely, the less the weight of the node, the lower the survival priority. If the multiple node groups have the same survival priority, the node group that includes the node with the alphabetical earliest node name will survive.

Survival priority can be calculated based on the following formula:

Survival priority = SF node weight + ShutdownPriority of userApplication

Note

When SF calculates the survival priority, each node will send its survival priority to the remote node via the administrative LAN. If any communication problem of the administrative LAN occurs, the survival priority will not be able to reach. In this case, the survival priority will be calculated only by the SF node weight.

SF node weight (Weight):

Weight of node. Default value = 1. Set this value while configuring the shutdown facility.

userApplication ShutdownPriority:

Set this attribute when userApplication is created. For details on how to change the settings, see "8.5 Changing the Operation Attributes of a userApplication."

See

For details on the ShutdownPriority attribute of userApplication, see "11.1 Attributes available to the user" in the "PRIMECLUSTER Reliant Monitor Services (RMS) with Wizard Tools Configuration and Administration Guide".

Survival scenarios

The typical scenarios that are implemented are shown below:

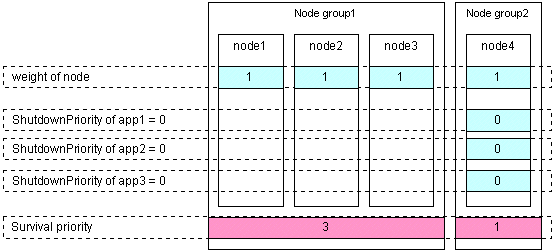

[Largest node group survival]

  • Set the weight of all nodes to 1 (default).

  • Set the attribute of ShutdownPriority of all user applications to 0 (default).

[Specific node survival]

  • Set the "weight" of the node to survive to a value more than double the total weight of the other nodes.

  • Set the ShutdownPriority attribute of all user applications to 0 (default).

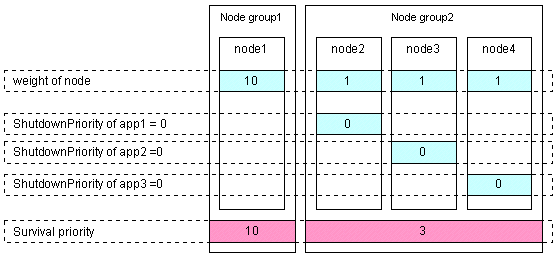

In the following example, node1 is to survive:

[Specific application survival]

  • Set the "weight" of all nodes to 1 (default).

  • Set the ShutdownPriority attribute of the user application whose operation is to continue to a value more than double the total of the ShutdownPriority attributes of the other user applications and the weights of all nodes.

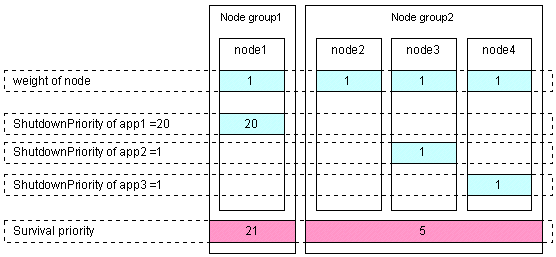

In the following example, the node for which app1 is operating is to survive:

[Node survival in a specific order]

  • Set the "weight" of the node to survive to a value more than double the total weight of the other nodes which have lower priority.

  • Set the ShutdownPriority attribute of all user applications to 0 (default).

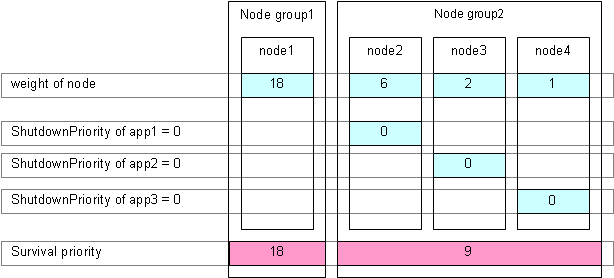

In the following example, node1, node2, node3, and node4 are to survive in this order:

[Host OS failover function]

  • Set the "weight" of nodes to a power-of-two value (1,2,4,8,16,...) in ascending order of survival priority in each cluster system.

  • The "weight" set to a guest OS should have the same order relation with a corresponding host OS.

    For example, when setting a higher survival priority to host1 than host2 between host OSes, set a higher survival priority to node1 (corresponding to host1) than node2-4 (corresponding to host2) between guest OSes.

  • Set the ShutdownPriority attribute of all user applications to 0 (default).

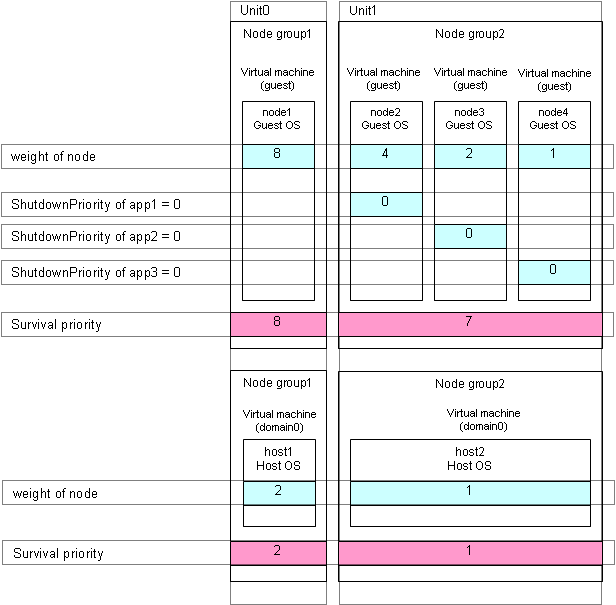

In the following example, node1, node2, node3, and node4 are to survive in this order:

5.1.2.3 Setting up the shutdown agent in PRIMERGY

This section describes the procedure for setting up the shutdown agent in PRIMERGY. To use this in a virtual machine environment, see "5.1.2.5 Setting up the shutdown agent in virtual machine environment."

Note

After setting up the shutdown agent, conduct a test for forced shutdown of cluster nodes to check that the correct nodes can be forcibly stopped. For details of the test for forced shutdown of cluster nodes, see "1.4 Test".

5.1.2.3.1 Setting up the shutdown daemon

Create /etc/opt/SMAW/SMAWsf/rcsd.cfg on all nodes as shown below:

CFNameX,weight=weight,admIP=myadmIP: agent=SA_xxx,timeout=20
CFNameX,weight=weight,admIP=myadmIP: agent=SA_xxx,timeout=20
CFNameX          : Specify the CF node name of the cluster host.
weight           : Specify the weight of the SF node.
myadmIP          : Specify the IP address of the administrative LAN on the local node.
                   Available IP addresses are IPv4 and IPv6 address.
                   IPv6 link local addresses are not available.
                   When specifying the IPv6 address, enclose it in blankets "[ ]".
                   (Example: [1080:2090:30a0:40b0:50c0:60d0:70e0:80f0])
SA_xxx           : Specify the name of the Shutdown Agent.
                    For the IPMI Shutdown Agent, specify SA_ipmi.
                    For the Blade Shutdown Agent, specify SA_blade.

Example: IPMI Shutdown Agent

node1, weight=1, admIP=10.20.30.100: agent=SA_ipmi, timeout=25
node2, weight=1, admIP=10.20.30.101: agent=SA_ipmi, timeout=25

Example: Blade Shutdown Agent

node1, weight=1, admIP=10.20.30.100: agent=SA_blade, timeout=20
node2, weight=1, admIP=10.20.30.101: agent=SA_blade, timeout=20

Note

  • For IPMI shutdown agent, set timeout to 25.

  • For using STP (Spanning Tree Protocol) in PRIMERGY, it is necessary to set the SF timeout value to the current value plus (+) 50 (seconds), taking into account the time STP needs to create the tree and an extra cushion. This setting also causes delays in failover times.

Information

When the "/etc/opt/SMAW/SMAWsf/rcsd.cfg" file is to be created, the "/etc/opt/SMAW/SMAWsf/rcsd.cfg.template" file can be used as a prototype.

5.1.2.3.2 IPMI

For the server with the BMC (Baseboard Management Controller) or iRMC (integrated Remote Management Controller) installed, configure the IPMI shutdown agent. You must configure the IPMI shutdown agent before you configure the kdump shutdown agent.

Create /etc/opt/SMAW/SMAWsf/SA_ipmi.cfg on all nodes as shown below:

Example 1:

When the IP address of iRMC of node1 is 10.20.30.50, the IP address of iRMC of node2 is 10.20.30.51.

node1  10.20.30.50:root:bmcpwd cycle
node2  10.20.30.51:root:bmcpwd cycle

Example 2:

When the IP address of iRMC of node1 is 1080:2090:30a0:40b0:50c0:60d0:70e0:80f0, the IP address of iRMC of node2 is 1080:2090:30a0:40b0:50c0:60d0:70e0:80f1.

node1 [1080:2090:30a0:40b0:50c0:60d0:70e0:80f0]:root:bmcpwd cycle
node2 [1080:2090:30a0:40b0:50c0:60d0:70e0:80f1]:root:bmcpwd cycle

Information

When the "/etc/opt/SMAW/SMAWsf/SA_ipmi.cfg" file is to be created, the "/etc/opt/SMAW/SMAWsf/SA_ipmi.cfg.template" file can be used as a prototype.

Note

  • Check if the setting contents of the /etc/opt/SMAW/SMAWsf/SA_ipmi.cfg file are correct. If there is an error in the setting contents, the shutdown facility cannot be performed normally.

  • Check if the IP address (ip-address) of IPMI (BMC or iRMC) corresponding to the cluster host's CF node name (CFNameX) of the /etc/opt/SMAW/SMAWsf/SA_ipmi.cfg file are set. If there is an error in the setting, a different node may be forcibly stopped.

  • If you have used symbols in the password specified when making the IPMI (BMC or iRMC) settings, it is unnecessary to add backslashes ("\"), indicating escape characters in front of the symbols.

    Example: If the password specified when making the IPMI (BMC or iRMC) settings is "bmcpwd#"

    node1 10.20.30.50:root:bmcpwd# cycle
node2 10.20.30.51:root:bmcpwd# cycle

  • Change the permission of the /etc/opt/SMAW/SMAWsf/SA_ipmi.cfg file to 600 by executing the following command.

    # chmod 600 /etc/opt/SMAW/SMAWsf/SA_ipmi.cfg
5.1.2.3.3 Blade

For the Blade server, configure the Blade shutdown agent. You must configure the Blade shutdown agent before you configure the kdump shutdown agent.

Create /etc/opt/SMAW/SMAWsf/SA_blade.cfg on all nodes as shown below:

(1) Cluster configuration within a single chassis

management-blade-ip IPaddress
community-string SNMPcommunity
CFName1 slot-no {cycle | leave-off}
CFName2 slot-no {cycle | leave-off}

(2) Cluster configuration across multiple chassis

community-string SNMPcommunity
management-blade-ip IPaddress
CFName1 slot-no {cycle | leave-off}
management-blade-ip IPaddress
CFName2 slot-no {cycle | leave-off}
IPaddress          : Specify the IP address of the management blade.
                     Available IP addresses are IPv4 and IPv6 address.
                     IPv6 link local addresses are not available.
                     When specifying the IPv6 address, enclose it in blankets "[ ]".
                     (Example: [1080:2090:30a0:40b0:50c0:60d0:70e0:80f0])
SNMPcommunity      : Specify the SNMP community.
CFNameX            : Specify the CF node name of the cluster host.
slot-no            : Specify the slot No. of the server blade.
cycle              : Reboot the node after forcibly stopping the node.
leave-off          : Power-off the node after forcibly stopping the node.

Example 1:

When the IP address of the management blade of node1 and node2 is 10.20.30.50, the slot number of node1 is 1 and the slot number of node2 is 2.

management-blade-ip 10.20.30.50
community-string public
node1 1 cycle
node2 2 cycle

Example 2:

When the IP address of the management blade of node1 is 10.20.30.50, and the slot number of node1 is 1.
Moreover, when the IP address of the management blade of node2 is 10.20.30.51, and the slot number of node2 is 2.

community-string public
management-blade-ip  10.20.30.50
node1 1 cycle
management-blade-ip  10.20.30.51
node2 2 cycle

Information

When the "/etc/opt/SMAW/SMAWsf/SA_blade.cfg" file is to be created, the "/etc/opt/SMAW/SMAWsf/SA_blade.cfg.template" file can be used as a prototype.

Note

  • Check if the setting contents of the /etc/opt/SMAW/SMAWsf/SA_blade.cfg file are correct. If there is an error in the setting contents, the shutdown facility cannot be performed normally.

  • Check if the IP address (IPaddress) of the management blade and the slot number (slot-no) of the server blade corresponding to the cluster host's CF node name (CFNameX) of the /etc/opt/SMAW/SMAWsf/SA_blade.cfg file are set. If there is an error in the setting, a different node may be forcibly stopped.

  • Change the permission of the /etc/opt/SMAW/SMAWsf/SA_blade.cfg file to 600 by executing the following command.

    # chmod 600 /etc/opt/SMAW/SMAWsf/SA_blade.cfg

Note

The rcsd.cfg, SA_ipmi.cfg and SA_blade.cfg files must be the same on all nodes. If not, operation errors might occur.

5.1.2.3.4 kdump

Set up the kdump shutdown agent when kdump is used to collect the crash dump.

5.1.2.3.5 Starting up the shutdown facility

Start or restart the shutdown facility on all nodes.

Use sdtool -s to confirm whether the shutdown daemon (rcsd) is active.

# sdtool -s

By executing sdtool -s on all nodes, the composition of the shutdown facility can be confirmed.

Note

Confirm the shutdown facility operates normally by the display result of the sdtool -s command.

There is a possibility that the mistake is found in the configuration setting of the agent or hardware when displayed as follows though the setting of the shutdown facility is completed.

  • "InitFailed" is displayed as the initial status.

  • "Unknown" or "TestFailed" is displayed as the test status.

Confirm whether the error message is output to/var/log/messages file. Then, take corrective actions according to the content of the output message.

5.1.2.4 Setting up the shutdown agent in PRIMEQUEST

This section describes the procedure for setting up the shutdown agent in PRIMEQUEST. To use this in a virtual machine environment, see "5.1.2.5 Setting up the shutdown agent in virtual machine environment."

Note

After setting up the shutdown agent, conduct a test for forced shutdown of cluster nodes to check that the correct nodes can be forcibly stopped. For details of the test for forced shutdown of cluster nodes, see "1.4 Test".

5.1.2.4.1 MMB

This section describes the procedure for setting up the MMB in the shutdown facility.

Check the information of the shutdown agent before setting up the shutdown facility.

Setting up the MMB Shutdown Facility

Registering MMB information

Note

Carry out the MMB information registration described here after "5.1.1 Setting Up CF and CIP" and before "Setting Up the Shutdown Daemon", which is described later.

  1. Execute the "clmmbsetup -a" command on all nodes, and register the MMB information.

    For instructions on using the "clmmbsetup" command, see the "clmmbsetup" manual page.

    # /etc/opt/FJSVcluster/bin/clmmbsetup -a mmb-user
Enter User's Password:
Re-enter User's Password:
#

    For mmb-user and User's Password, enter the following values that were checked in "5.1.2.1 Checking the Shutdown Agent Information."

    mmb-user

    User's name for controlling the MMB with RMCP

    User's Password

    User's password for controlling the MMB with RMCP.

    Note

    Only alphanumeric characters can be used for User's Password, but not symbols.

  2. Execute the "clmmbsetup -l" command on all nodes, and check the registered MMB information.

    If the registered MMB information was not output on all nodes in Step 1, start over from Step 1.

    # /etc/opt/FJSVcluster/bin/clmmbsetup -l
cluster-host-name  user-name
-----------------------------------
node1              mmb-user
node2              mmb-user
#
Setting up the shutdown daemon

On all nodes, create /etc/opt/SMAW/SMAWsf/rcsd.cfg with the following information:

CFNameX,weight=weight,admIP=myadmIP: agent=SA_xxx,timeout=20
CFNameX,weight=weight,admIP=myadmIP: agent=SA_xxx,timeout=20
CFNameX        :  Specify the CF node name of the cluster host.
weight         :  Specify the weight of the SF node.
myadmIP        :  Specify the IP address of the administrative LAN for the local node.
                  Available IP addresses are IPv4 and IPv6 address.
                  IPv6 link local addresses are not available.
                  When specifying the IPv6 address, enclose it in blankets "[ ]".
                   (Example: [1080:2090:30a0:40b0:50c0:60d0:70e0:80f0])
SA_xxx         :  Specify the name of the shutdown agent.
                   To set the node to panic status through the MMB
                   Specify "SA_mmbp".
                   To reset the node through the MMB
                   Specify "SA_mmbr".

Example) Shown below is a setup example for a 2-node configuration.

# cat /etc/opt/SMAW/SMAWsf/rcsd.cfg
node1,weight=2,admIP=fuji2:agent=SA_mmbp,timeout=20:agent=SA_mmbr,timeout=20
node2,weight=2,admIP=fuji3:agent=SA_mmbp,timeout=20:agent=SA_mmbr,timeout=20

Note

  • For the shutdown agents to be specified in the rcsd.cfg file, set both the SA_mmbp and SA_mmbr shutdown agents in that order.

  • Set the same contents in the rcsd.cfg file on all nodes. Otherwise, a malfunction may occur.

Information

When creating the /etc/opt/SMAW/SMAWsf/rcsd.cfg file, you can use the /etc/opt/SMAW/SMAWsf/rcsd.cfg.mmb.template file as a template.

Starting the MMB asynchronous monitoring daemon

  1. Starting the MMB asynchronous monitoring daemon

    Check that the MMB asynchronous monitoring daemon has been started on all nodes.

    # /etc/opt/FJSVcluster/bin/clmmbmonctl

    If "The devmmbd daemon exists." is displayed, the MMB asynchronous monitoring daemon has been started.

    If "The devmmbd daemon does not exist." is displayed, the MMB asynchronous monitoring daemon has not been started. Execute the following command to start the MMB asynchronous monitoring daemon.

    # /etc/opt/FJSVcluster/bin/clmmbmonctl start

  2. Starting the shutdown facility.

    Check that the shutdown facility has been started on all nodes.

    # sdtool -s

    If the shutdown facility has already been started, execute the following command to restart the shutdown facility on all nodes.

    # sdtool -e
    # sdtool -b

    If the shutdown facility has not been started, execute the following command to start the shutdown facility on all nodes.

    # sdtool -b

  3. Checking the status of the shutdown facility

    Check the status of the shutdown facility on all nodes.

    # sdtool -s

Information

Display results of the sdtool -s command

  • If "InitFailed" is displayed as the initial status, it means that a problem occurred during initialization of that shutdown agent.

  • If "TestFailed" is displayed as the test status, it means that a problem occurred while the agent was testing whether or not the node displayed in the cluster host field could be stopped. Some sort of problem probably occurred in the software, hardware, or network resources being used by that agent.

  • If "Unknown" is displayed as the stop or initial status, it means that the SF has still not executed node stop, path testing, or SA initialization. "Unknown" is displayed temporarily until the actual status can be confirmed.

  • If "TestFailed" or "InitFailed" is displayed, check the SA log file or /var/log/messages. The log file records the reason why SA testing or initialization failed. After the failure-causing problem is resolved and SF is restarted, the status display changes to InitWorked or TestWorked.

Note

  • If "sdtool -s" is executed immediately after the OS is started, "TestFailed" may be displayed as the test status in the local node. However, this status is displayed because the snmptrapd daemon is still being activated and does not indicate a malfunction. If "sdtool -s" is executed 10 minutes after the shutdown facility is started, TestWorked is displayed as the test status.

    In the following example, "TestFailed" is displayed test status for the local node (node1).

    # sdtool -s
Cluster Host    Agent         SA State      Shut State  Test State  Init State
------------    -----         --------      ----------  ----------  ----------
node1           SA_mmbp.so    Idle          Unknown     TestFailed  InitWorked
node1           SA_mmbr.so    Idle          Unknown     TestFailed  InitWorked
node2           SA_mmbp.so    Idle          Unknown     TestWorked  InitWorked
node2           SA_mmbr.so    Idle          Unknown     TestWorked  InitWorked

    The following messages may be displayed right after the OS is started by same reason as previously described.

    3084: Monitoring another node has been stopped.
SA SA_mmbp.so to test host nodename failed
SA SA_mmbr.so to test host nodename failed

    These messages are also displayed because the snmptrapd daemon is being activated and does not indicate a malfunction. The following message is displayed 10 minutes after the shutdown facility is started.

    3083: Monitoring another node has been started.

  • If a node is forcibly shut down by the SA_mmbr shutdown agent, the following message may be output. This message indicates that it takes time to shut down the node, not a malfunction.

    Fork SA_mmbp.so(PID pid) to shutdown host nodename
 :
SA SA_mmbp.so to shutdown host nodename failed
 :
Fork SA_mmbr.so(PID pid) to shutdown host nodename
 :
SA SA_mmbr.so to shutdown host nodename failed
 :
MA SA_mmbp.so reported host nodename leftcluster, state MA_paniced_fsnotflushed
 :
MA SA_mmbr.so reported host nodename leftcluster, state MA_paniced_fsnotflushed
 :
Fork SA_mmbp.so(PID pid) to shutdown host nodename
 :
SA SA_mmbp.so to shutdown host nodename succeeded

    If "sdtool -s" is executed immediately after the message above was output, KillWorked is displayed in Shut State of SA_mmbp.so. Then, KillFailed is displayed in Shut State of SA_mmbr.so.

    The following indicates the example when shutting down nodes from node1 to node2 and executing "sdtool -s" after the message above.

    # sdtool -s
Cluster Host    Agent                SA State      Shut State  Test State  Init State
------------    -----                --------      ----------  ----------  ----------
node1           SA_mmbp.so           Idle          Unknown     TestWorked  InitWorked
node1           SA_mmbr.so           Idle          Unknown     TestWorked  InitWorked
node2           SA_mmbp.so           Idle          KillWorked  TestWorked  InitWorked
node2           SA_mmbr.so           Idle          KillFailed  TestWorked  InitWorked

    To restore KillFailed that was displayed by "sdtool -s," follow the procedure below.

    # sdtool -e
# sdtool -b
# sdtool -s
Cluster Host    Agent                SA State      Shut State  Test State  Init State
------------    -----                --------      ----------  ----------  ----------
node1           SA_mmbp.so           Idle          Unknown     TestWorked  InitWorked
node1           SA_mmbr.so           Idle          Unknown     TestWorked  InitWorked
node2           SA_mmbp.so           Idle          Unknown     TestWorked  InitWorked
node2           SA_mmbr.so           Idle          Unknown     TestWorked  InitWorked

Setting the I/O Completion Wait Time

Set the wait time until I/O completion (WaitForIOComp) during failover triggered by a node failure (panic, etc.) according to the procedure described below.

  1. Prechecking the shared disk

    The standard setting for the I/O completion wait time during failover triggered by a node failure (for example, if a panic occurs during MMB asynchronous monitoring) is 0 seconds. However, if a shared disk that requires an I/O completion wait time is being used, this setting must be set to an appropriate value.

    Information

    ETERNUS Disk storage systems do not require an I/O completion wait time. Therefore, this setting is not required.

    Note

    If an I/O completion wait time is set, the failover time when a node failure (panic, etc.) occurs increases by that amount of time.

  2. Setting the I/O completion wait time

    Execute the following command, and set the wait time until I/O completion (WaitForIOComp) during failover triggered by a node failure (panic, etc.). For details about the "cldevparam" command, see the "cldevparam" manual page.

    Execute the command in any node that is part of the cluster system.

    # /etc/opt/FJSVcluster/bin/cldevparam -p WaitForIOComp value

    Alternatively, execute the following command and check the setting of the wait time until I/O processing is completed (WaitForIOComp).

    # /etc/opt/FJSVcluster/bin/cldevparam -p WaitForIOComp
 value

  3. Starting the shutdown facility

    Check that the shutdown facility has been started on all nodes.

    # sdtool -s

    If the shutdown facility has already been started, execute the following command to restart the shutdown facility on all nodes:

    # sdtool -r

    If the shutdown facility has not been started, execute the following command to start the shutdown facility on all nodes.

    # sdtool -b

  4. Checking the status of the shutdown facility

    Check the status of the shutdown facility on all nodes.

    # sdtool -s

5.1.2.5 Setting up the shutdown agent in virtual machine environment

This section describes the procedure for setting up the shutdown agent in a virtual machine environment.

Note

After setting up the shutdown agent, conduct a test for forced shutdown of cluster nodes to check that the correct nodes can be forcibly stopped. For details of the test for forced shutdown of cluster nodes, see "1.4 Test".

5.1.2.5.1 vmSP (Virtual Machine Service Provider)

This section describes the procedure for setting vmSP (Virtual Machine Service Provider) as the shutdown facility in a Xen environment.

Be sure to perform "5.1.2.1 Checking the Shutdown Agent Information" before setting up the shutdown facility.

Note

Be sure to perform the following operations from 1. to 6. on all guest OSes (nodes).

  1. Encrypt the password

    Execute the sfcipher command to encrypt passwords for the account FJSVvmSP of all host OSes, where guest OSes set as cluster nodes exist.

    For details on how to use the sfcipher command, see the manual page of "sfcipher."

    # sfcipher -c
Enter User's Password:
Re-enter User's Password:
D0860AB04E1B8FA3
#

  2. Setup the shutdown agent

    Set the shutdown agent. When the shutdown agent for PANIC (SA_vmSPgp) is used, create /etc/opt/SMAW/SMAWsf/SA_vmSPgp.cfg, and when the shutdown agent for RESET (SA_vmSPgr) is used, create /etc/opt/SMAW/SMAWsf/SA_vmSPgr.cfg as below.

    CFNameX domainX ip-address user passwd
    CFNameX domainX ip-address user passwd
    CFNameX    : Specify the CF node name of the cluster host.
domainX    : Specify the guest OS domain name.
ip-address : Specify the IP address of the host OS.
             Available IP address is IPv4 address.
user       : Specify the account FJSVvmSP of the host OS.
passwd     : A login password of the account FJSVvmSP of the host OS.
             Specify the encrypted password that you have checked in 1.

    Example) The following is a setup example.

    When the guest OS domain name of node1 is domain1, and the IP address of the host OS on which node1 operates is 10.20.30.50.
    Moreover, when the guest OS domain name of node2 is domain2, and the IP address of the host OS on which node2 operates is 10.20.30.51.

    # cat /etc/opt/SMAW/SMAWsf/SA_vmSPgp.cfg
node1 domain1 10.20.30.50 FJSVvmSP D0860AB04E1B8FA3
node2 domain2 10.20.30.51 FJSVvmSP D0860AB04E1B8FA3
    # cat /etc/opt/SMAW/SMAWsf/SA_vmSPgr.cfg
node1 domain1 10.20.30.50 FJSVvmSP D0860AB04E1B8FA3
node2 domain2 10.20.30.51 FJSVvmSP D0860AB04E1B8FA3

    Note

    • Check if the setting contents of the /etc/opt/SMAW/SMAWsf/SA_vmSPgp.cfg file and the /etc/opt/SMAW/SMAWsf/SA_vmSPgr.cfg file are correct. If there is an error in the setting contents, the shutdown facility cannot be performed normally.

    • Check if the domain name (domainX) of the guest OS and the IP address (ip-address) of the host OS corresponding to the cluster host's CF node name (CFNameX) of the /etc/opt/SMAW/SMAWsf/SA_vmSPgp.cfg file and the /etc/opt/SMAW/SMAWsf/SA_vmSPgr.cfg file are set. If there is an error in the setting, a different node may be forcibly stopped.

  3. Log in to the host OS

    The shutdown facility accesses the target node with SSH. Therefore, you need to authenticate yourself (create the RSA key) in advance, which is required when using SSH for the first time.
    On all guest OSes (nodes), log in to each host OS IP address (ip-address) set in the step 2. using each host OS user name (user) set in the step 2.

    # ssh -l FJSVvmSP XXX.XXX.XXX.XXX
The authenticity of host 'XXX.XXX.XXX.XXX (XXX.XXX.XXX.XXX)' can't be established.
RSA key fingerprint is xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx.
Are you sure you want to continue connecting (yes/no)? yes <- "Enter yes."
#

  4. Setup the shutdown daemon

    Create /etc/opt/SMAW/SMAWsf/rcsd.cfg as below.

    CFNameX,weight=weight,admIP=myadmIP:agent=SA_xxxx,timeout=35
    CFNameX,weight=weight,admIP=myadmIP:agent=SA_xxxx,timeout=35
    CFNameX       : Specify the CF node name of the cluster host.
weight        : Specify the weight of the SF node.
myadmIP       : Specify the IP address of the administrative LAN for your guest OS (node).
SA_xxxx       : Specify the name of the shutdown agent.
                Here, "SA_vmSPgp" or "SA_vmSPgr" is specified.

    Example) The following is a setup example.

    # cat /etc/opt/SMAW/SMAWsf/rcsd.cfg
node1,weight=2,admIP=fuji2:agent=SA_vmSPgp,timeout=35:agent=SA_vmSPgr,timeout=35
node2,weight=2,admIP=fuji3:agent=SA_vmSPgp,timeout=35:agent=SA_vmSPgr,timeout=35

    Note

    • For the shutdown agent set by the rcsd.cfg file, set both shutdown agents in the order of SA_vmSPgp to SA_vmSPgr.

    • The contents of the SA_vmSPgp.cfg, SA_vmSPgr.cfg, and rcsd.cfg files of all guest OSes (nodes) should be identical. If not, a malfunction will occur.

  5. Start the shutdown facility

    Check that the shutdown facility has already been started on all the nodes.

    # sdtool -s

    If the shutdown facility has already been started, execute the following to restart it on all the nodes.

    # sdtool -e
# sdtool -b

    If the shutdown facility has not been started, execute the following to start it on all the nodes.

    # sdtool -b

  6. Check the state of the shutdown facility

    Check the state of the shutdown facility.

    # sdtool -s

    Information

    About the displayed results

    • If "InitFailed" is displayed as the initial status, it means that a problem occurred during initialization of that shutdown agent.

    • If "TestFailed" is displayed as the test status, it means that a problem occurred while the agent was testing whether or not the node displayed in the cluster host field could be stopped. Some sort of problem probably occurred in the software, hardware, network resources, or the host OS being used by that agent.

    • When the maximum concurrent connections for SSH are "the number of cluster nodes" or less, the status of the shutdown facility may be displayed as InitFailed or TestFailed. Change the configuration to set up the maximum concurrent connections for SSH to be "the number of cluster nodes + 1"or more.

    • If "Unknown" is displayed as the stop or initial status, it means that the SF has still not executed node stop, path testing, or SA initialization. "Unknown" will be displayed temporarily until the actual status can be confirmed.

    • If "TestFailed" or "InitFailed" is displayed, check the SA log file or /var/log/messages. The log file records the reason why SA testing or initialization failed. After the failure-causing problem is resolved and SF is restarted, the status display changes to InitWorked or TestWorked.

5.1.2.5.2 libvirt

This section describes the procedure for setting libvirt as the shutdown facility in a KVM environment.

Be sure to perform "5.1.2.1 Checking the Shutdown Agent Information" before setting up the shutdown facility.

Note

Be sure to perform the following operations from 1. to 6. on all guest OSes (nodes).

  1. Encrypt the password

    Execute the sfcipher command to encrypt the password for a user for the shutdown facility.

    For details on how to use the sfcipher command, see the manual page of "sfcipher."

    # sfcipher -c
Enter User's Password:
Re-enter User's Password:
D0860AB04E1B8FA3
#

  2. Setup the shutdown agent

    Set the shutdown agent. When the shutdown agent for PANIC (SA_libvirtgp) is used, create /etc/opt/SMAW/SMAWsf/SA_libvirtgp.cfg, and when the shutdown agent for RESET (SA_libvirtgr) is used, create /etc/opt/SMAW/SMAWsf/SA_libvirtgr.cfg as below.

    CFNameX domainX ip-address user passwd
    CFNameX domainX ip-address user passwd
    CFNameX    : Specify the CF node name of the cluster host.
domainX    : Specify the guest OS domain name.
ip-address : Specify the IP address of the hypervisor.
              Available IP addresses are IPv4 and IPv6 address.
              IPv6 link local addresses are not available.
user       : Account of the hypervisor. Specify the user for the shutdown facility.
passwd     : A login password of the account specified by "user".
              Specify the encrypted password that you have checked in 1.

    Example) The following is a setup example.

    When the guest OS domain name of node1 is domain1, and the IP address of the hypervisor on which node1 operates is 10.20.30.50.
    Moreover, when the guest OS domain name of node2 is domain2, and the IP address of the hypervisor on which node2 operates is 10.20.30.51.

    # cat /etc/opt/SMAW/SMAWsf/SA_libvirtgp.cfg
node1 domain1 10.20.30.50 user D0860AB04E1B8FA3
node2 domain2 10.20.30.51 user D0860AB04E1B8FA3
    # cat /etc/opt/SMAW/SMAWsf/SA_libvirtgr.cfg
node1 domain1 10.20.30.50 user D0860AB04E1B8FA3
node2 domain2 10.20.30.51 user D0860AB04E1B8FA3

    Note

    • Check if the setting contents of the /etc/opt/SMAW/SMAWsf/SA_libvirtgp.cfg file and the /etc/opt/SMAW/SMAWsf/SA_libvirtgr.cfg file are correct. If there is an error in the setting contents, the shutdown facility cannot be performed normally.

    • Check if the domain name (domainX) of the guest OS and the IP address (ip-address) of the hypervisor corresponding to the cluster host's CF node name (CFNameX) of the /etc/opt/SMAW/SMAWsf/SA_libvirtgp.cfg file and the /etc/opt/SMAW/SMAWsf/SA_libvirtgr.cfg file are set. If there is an error in the setting, a different node may be forcibly stopped.

    • After forcibly stopping the node (guest OS) by SA_libvirtgp, the state of the guest OS may remain temporarily stopped (when there is no sufficient disk space in /var/crash on the host OS, and so on.). In this case, forcibly stop the guest OS with the virsh destroy command.

  3. Log in to the hypervisor

    The shutdown facility accesses the target node with SSH. Therefore, you need to authenticate yourself (create the RSA key) in advance, which is required when using SSH for the first time.
    On all guest OSes (nodes), log in to each hypervisor IP address (ip-address) set in the step 2. using each user for the shutdown facility.

    # ssh -l user XXX.XXX.XXX.XXX
The authenticity of host 'XXX.XXX.XXX.XXX (XXX.XXX.XXX.XXX)' can't be established.
RSA key fingerprint is xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx:xx.
Are you sure you want to continue connecting (yes/no)? yes <- "Enter yes."
#

  4. Setup the shutdown daemon

    Create /etc/opt/SMAW/SMAWsf/rcsd.cfg as below.

    CFNameX,weight=weight,admIP=myadmIP:agent=SA_xxxx,timeout=35
CFNameX,weight=weight,admIP=myadmIP:agent=SA_xxxx,timeout=35
    CFNameX       : Specify the CF node name of the cluster host.
weight        : Specify the weight of the SF node.
myadmIP       : Specify the IP address of the administrative LAN for your guest OS (node).
                Available IP addresses are IPv4 and IPv6 address.
                IPv6 link local addresses are not available.
                When specifying the IPv6 address, enclose it in blankets "[ ]".
                (Example: [1080:2090:30a0:40b0:50c0:60d0:70e0:80f0])
SA_xxxx       : Specify the name of the shutdown agent.
                Here, "SA_libvirtgp" or "SA_libvirtgr" is specified.

    Example) The following is a setup example.

    # cat /etc/opt/SMAW/SMAWsf/rcsd.cfg
node1,weight=1,admIP=10.20.30.100:agent=SA_libvirtgp,timeout=35:agent=SA_libvirtgr,timeout=35
node2,weight=1,admIP=10.20.30.101:agent=SA_libvirtgp,timeout=35:agent=SA_libvirtgr,timeout=35

    Note

    • For the shutdown agent set by the rcsd.cfg file, set both shutdown agents in the order of SA_libvirtgp to SA_libvirtgr.

    • The contents of the SA_libvirtgp.cfg, SA_libvirtgr.cfg, and rcsd.cfg files of all guest OSes (nodes) should be identical. If not, a malfunction will occur.

  5. Start the shutdown facility

    Check that the shutdown facility has already been started on all the nodes.

    # sdtool -s

    If the shutdown facility has already been started, execute the following to restart it on all the nodes.

    # sdtool -e
# sdtool -b

    If the shutdown facility has not been started, execute the following to start it on all the nodes.

    # sdtool -b

  6. Check the state of the shutdown facility

    Check the state of the shutdown facility.

    # sdtool -s

    Information

    About the displayed results

    • If "InitFailed" is displayed as the initial status, it means that a problem occurred during initialization of that shutdown agent.

    • If "TestFailed" is displayed as the test status, it means that a problem occurred while the agent was testing whether or not the node displayed in the cluster host field could be stopped. Some sort of problem probably occurred in the software, hardware, network resources, or the host OS being used by that agent.

    • When the maximum concurrent connections for SSH are "the number of cluster nodes" or less, the status of the shutdown facility may be displayed as InitFailed or TestFailed. Change the configuration to set up the maximum concurrent connections for SSH to be "the number of cluster nodes + 1"or more.

    • If "Unknown" is displayed as the stop or initial status, it means that the SF has still not executed node stop, path testing, or SA initialization. "Unknown" will be displayed temporarily until the actual status can be confirmed.

    • If "TestFailed" or "InitFailed" is displayed, check the SA log file, /var/log/messages, or /etc/sysconfig/libvirt-guests. The log file records the reason why SA testing or initialization failed. For /etc/sysconfig/libvirt-guests, check whether the following settings are made:

      After the failure-causing problem is resolved and SF is restarted, the status display changes to InitWorked or TestWorked.

5.1.2.5.3 vmchkhost

This section describes the procedure for setting up vmchkhost (Host OS check) as the shutdown agent in a virtual machine environment.

Set up this setting after setting vmSP (Virtual Machine Service Provider) or libvirt in the shutdown facility.

Note

Be sure to perform the following operations from 1. to 6. on all guest OSes (nodes).

Information

About a log file

A log file of the vmchkhost shutdown agent is output at the following:

  • /var/opt/SMAWsf/log/SA_vmchkhost.log

  1. Encrypt the password

    In a Xen environment, use the encrypted passwords for the account FJSVvmSP of all host OSes, which were used when you set vmSP (Virtual Machine Service Provider) to the shutdown facility.

    In a KVM environment, use the encrypted passwords of general users for the shutdown facility, which were used when you set libvirt to the shutdown facility.

  2. Set up the shutdown agent.

    Create /etc/opt/SMAW/SMAWsf/SA_vmchkhost.cfg as described in the following:

    guest-cfname host-cfname ip-address user password
    guest-cfname host-cfname ip-address user password
    guest-cfname      : CF node name of the guest OS.
host-cfname       : CF node name of the host OS.
ip-address        : An IP address of the host OS.
                    Available IP addresses are IPv4 and IPv6 address.
                    IPv6 link local addresses are not available.
user              : An account of the host OS.
                    For a Xen environment, FJSVvmSP is fixed.
                    For a KVM environment, specify the user which were created when you set
                    libvirt for the shutdown facility.
password          : A login password of the account specified by "user".
                    Specify the encrypted password that you have checked in 1.

    Example) The following is a setup example.

    When the CF node name of the host OS on which node1 (CF node name of the guest OS) operates is hostos1, the IP address of the host OS is 10.20.30.50, the CF node name of the host OS on which node2 (CF node name of the guest OS) operates is hostos2, and the IP address of the host OS is 10.20.30.51.

    For Xen environment:

    # cat /etc/opt/SMAW/SMAWsf/SA_vmchkhost.cfg
node1 hostos1 10.20.30.50 FJSVvmSP 3CA1wxVXKD8a93077BaEkA==
node2 hostos2 10.20.30.51 FJSVvmSP 3CA1wxVXKD8a93077BaEkA==

    For KVM environment:

    # cat /etc/opt/SMAW/SMAWsf/SA_vmchkhost.cfg
node1 hostos1 10.20.30.50 user D0860AB04E1B8FA3
node2 hostos2 10.20.30.51 user D0860AB04E1B8FA3

    Note

    • Check if the setting contents of the /etc/opt/SMAW/SMAWsf/SA_vmchkhost.cfg file are correct. If there is an error in the setting contents, the shutdown facility cannot be performed normally.

    • Check if the domain name (domainX) of the guest OS and the IP address (ip-address) of the host OS corresponding to the cluster host's CF node name (CFNameX) of the /etc/opt/SMAW/SMAWsf/SA_vmchkhost.cfg file are set. If there is an error in the setting, the shutdown facility cannot be performed normally.

  3. Log in to the host OS

    The shutdown facility accesses the target node with SSH. Therefore, you need to authenticate yourself (create the RSA key) in advance, which is required when using SSH for the first time.

    Check that you have already authenticated yourself (created the RSA key) when setting up vmSP (Virtual Machine Service Provider) or libvirt in the shutdown facility.

  4. Set up the shutdown daemon

    Create /etc/opt/SMAW/SMAWsf/rcsd.cfg as below.

    CFNameX,weight=weight,admIP=myadmIP:agent=SA_xxxx,timeout=35
CFNameX,weight=weight,admIP=myadmIP:agent=SA_xxxx,timeout=35
    CFNameX        :Specify the CF node name of the cluster host.
weight         :Specify the weight of the SF node.
myadmIP        :Specify the IP address of the administrative LAN for your guest OS (node).
                Available IP addresses are IPv4 and IPv6 address.
                IPv6 link local addresses are not available.
                When specifying the IPv6 address, enclose it in blankets "[ ]".
                (Example: [1080:2090:30a0:40b0:50c0:60d0:70e0:80f0])
SA_xxxx        :Specify the name of the shutdown agent.
                Here, "SA_vmchkhost" is specified.

    Example) The following is a setup example.

    For Xen environment:

    # cat /etc/opt/SMAW/SMAWsf/rcsd.cfg
node1,weight=2,admIP=fuji2:agent=SA_vmSPgp,timeout=35:agent=SA_vmSPgr,timeout=35:agent=SA_vmchkhost,timeout=35
node2,weight=1,admIP=fuji3:agent=SA_vmSPgp,timeout=35:agent=SA_vmSPgr,timeout=35:agent=SA_vmchkhost,timeout=35

    For KVM environment:

    # cat /etc/opt/SMAW/SMAWsf/rcsd.cfg
node1,weight=2,admIP=fuji2:agent=SA_libvirtgp,timeout=35:agent=SA_libvirtgr,timeout=35:agent=SA_vmchkhost,timeout=35
node2,weight=1,admIP=fuji3:agent=SA_libvirtgp,timeout=35:agent=SA_libvirtgr,timeout=35:agent=SA_vmchkhost,timeout=35

    Note

    • For the shutdown agent set by the rcsd.cfg file, set both shutdown agents in the order of SA_vmSPgp to SA_vmSPgr.

    • The contents of the SA_vmchkhost.cfg and rcsd.cfg files of all guest OSes (nodes) should be identical. If not, a malfunction will occur.

  5. Start the shutdown facility

    Check that the shutdown facility has already been started on all the nodes.

    # sdtool -s

    If the shutdown facility has already been started, execute the following to restart it on all the nodes.

    # sdtool -e
# sdtool -b

    If the shutdown facility has not been started, execute the following to start it on all the nodes.

    # sdtool -b

  6. Check the state of the shutdown facility

    Check the state of the shutdown facility.

    # sdtool -s

    Information

    Display results of the sdtool -s command

    • If "InitFailed" is displayed as the initial status, it means that a problem occurred during initialization of that shutdown agent.

    • If "TestFailed" is displayed as the test status, it means that a problem occurred while the agent was testing whether or not the node displayed in the cluster host field could be stopped. Some sort of problem probably occurred in the software, hardware, network resources, or host OS being used by that agent.

    • When the maximum concurrent connections for SSH are "the number of cluster nodes" or less, the status of the shutdown facility may be displayed as InitFailed or TestFailed. Change the configuration to set up the maximum concurrent connections for SSH to be "the number of cluster nodes + 1"or more.

    • If "Unknown" is displayed as the stop or initial status, it means that the SF has still not executed node stop, path testing, or SA initialization. "Unknown" is displayed temporarily until the actual status can be confirmed.

    • If "TestFailed" or "InitFailed" is displayed, check the SA log file or /var/log/messages. The log file records the reason why SA testing or initialization failed. After the failure-causing problem is resolved and SF is restarted, the status display changes to InitWorked or B242TestWorked.

PreviousNext
Copyright FUJITSU LIMITED 2008-2015
