ETERNUS SF AdvancedCopy Manager V16.2 Operation Guide

12.6.1 Operation Design

The configuration example when the Storage Cluster Continuous Copy function is used is shown in "Figure 12.4 Configuration Example When Using Storage Cluster Continuous Copy Function".

Perform an operational design by referring to the following procedure.

1. 4.2.2.1 Designing Server Configuration

2. 4.2.2.2 Designing Symfoware Database

3. 4.2.2.3 Determining Backup Method

4. 4.2.2.4 Determining Backup Target

5. 4.2.2.5 Preparing Backup Volumes

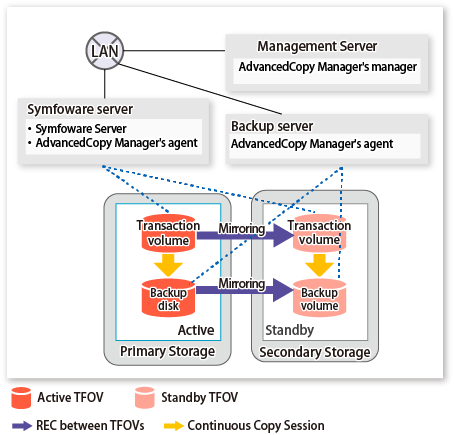

Figure 12.4 Configuration Example When Using Storage Cluster Continuous Copy Function

Point

• Locate the transaction volumes and the backup volumes in the same TFO group.

• Even when backing up log groups to multiple generations, locate all of the volumes in the same TFO group.
