This section describes how to notify the detected device information to the administration server (CS).
When connecting with CS network
If the PC installed with ADT connects with CS network, the automatically detected device information can be automatically notified to Systemwalker Desktop Patrol CS according to the task schedule set up during installation. Therefore, no other special setups are necessary except the "Scheduling of Automatic Detection" which is set during installation.
When disconnecting with CS network
If it is required to notify the device information detected offline when the PC installed with ADT does not connect with CS network, the offline export function in the PC installed with ADT can be used to export the device information in the format of CSV.
Notification procedure is shown below:
Select Start > All Programs > Systemwalker Desktop Patrol ADT > Export Detected Device Information Offline, or Apps > Systemwalker Desktop Patrol ADT > Export Detected Device Information Offline from ADT.

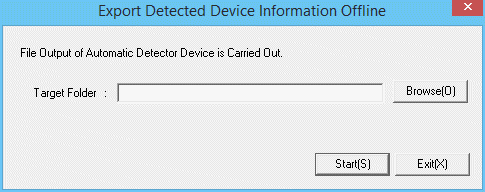

The following window appears.
Set the following information and click the Start button.
Item | Description |
|---|---|
Target Folder | The specified folder to which the device information will be exported. |
Device information will be exported in the following format to the target export folder.
Export Format: "ADT_yyyymmddhhMMssn.adt"
yyyymmddhhMMss: Execution date and time
n: Retry times for exporting multiple ADT information when filenames are identical.
Note
Do not modify export file name
Modification of export file name will result in failure in importing detected device information via CS, so, do not modify the export file name.
Hand over the exported file mentioned in "2." to the system administrator via the mobile medium.
