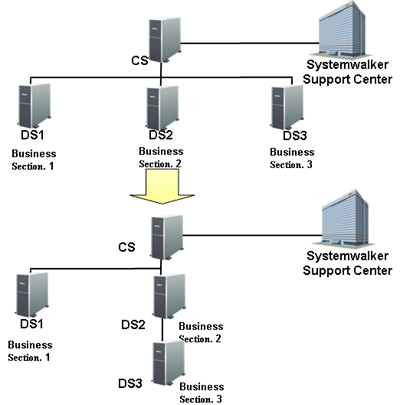

When hoping to move DS under CS or move DS under DS to other DS as shown in the following figure in system structure, the server can be moved.
The following is the example of moving DS3 to DS2.
Note
When moving DS in the following status, DS cannot be moved correctly.
CS cannot communicate with each DS normally.
DS has not been installed.
DS has been stopped.
Move DS after confirming the following items.
The network between DS to be moved or deleted and CS is OK.
DS has been installed and started already.
If DS cannot be moved correctly, restore the network between DS and CS. Or start it in case DS has been stopped. Thus, it will be restored automatically.
The procedures for moving the server are as follows:
Note
Do not operate DS when moving it
Do not operate DS before completing moving DS to be moved.
Display Environment Setup > CS/DS Settings and Status through the main menu.
Click the link of server name.
The following window is displayed.
Modify the following items.
Item | Content |
|---|---|
Higher CS/DS | Select the higher server to be modified in the list. |
Click the OK button.
Click Update to the Latest Information button the in the CS/DS Settings and Status - Settings of DS window to confirm that the higher server of DS has been modified.
