This section explains how to configure smart device CT (Android) settings.
Follow the steps below to configure the settings:
Start the installed smart device CT.
If the screen below is displayed when the installed smart device CT is started, tap (or click) Activate.
After you have activated, this screen will not be displayed following startup.
After starting the installed smart device CT, tap (or click) the menu button to display the options menu. Then tap Settings.

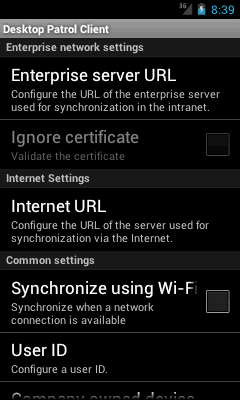

The setup screen will be displayed. Configure the following setting in accordance with the actual environment.
You must set Enterprise server URL or Internet URL.
Enterprise network settings
Item | Description |
|---|---|
Enterprise server URL | Specify the URL of the enterprise server to be used for synchronization within the intranet.
Enter one of the following URLs, and then tap OK:
Refer to "Port Number List" in the Systemwalker Desktop Patrol Reference Manual for details on the port number used. If the URL starts with "http://" the default value is 38080, and if the URL starts with "https://" it is 38181. If no URL is set, inventory information will not be synchronized in the enterprise network environment. |
Ignore certificate | Select this item when certificates will not be authenticated in the enterprise network. This option becomes available when you enter a URL beginning with "https://" for Enterprise server URL. By default, this item is not selected, so certificates will be authenticated. |
Internet settings
Item | Description |
|---|---|
Internet URL | Set the URL of the server to be used for synchronization via the Internet.
Enter the URL of the Web server (reverse proxy server) used for Internet connection starting with "http://" or "https://", and then tap OK. If no URL is set, inventory information will not be synchronized in the Internet environment. |
Common settings (optional settings)
Item | Description |
|---|---|
Synchronize using Wi-Fi connection | Select this item to synchronize inventory information only when the device is connected to a network by Wi-Fi. By default, this item is not selected, so inventory information will be synchronized when the device is connected to the network by Wi-Fi, 3G network, or other means. |
User ID | Register the user ID registered in user management of Systemwalker Desktop Patrol.
Registering the user ID enables you to identify, from the main menu, the smart device user and the department to which the user belongs. You can specify up to 20 halfwidth alphanumeric characters, and the following symbols: - @ . _ Alphabetic characters are case-sensitive. If you omit the user ID, "MobileUser" is displayed as the user ID in smart device information referenced from the main menu. |
Company owned device | Select this item when using a company owned device. By default, this item is selected, so clear it if you are using a personal device. The confirmation screen shown below is displayed only when this item is cleared. Tap I agree if you are using a device you bought and own yourself.
|
Tap (or click) Back.
The first time you configure this setting, the message Synchronize now? will be displayed. To start synchronization immediately, tap Yes. To start synchronization the next time automatic synchronization is implemented, tap No.
Point
Timing of inventory information synchronization
Inventory information is automatically synchronized once a day, but you can also synchronize it at any time during operations.
Refer to "How to Synchronize the Inventory Information" in the Systemwalker Desktop Patrol Operation Guide: for Administrators for details.
