This section describes how to construct Systemwalker Desktop Patrol database.
Note
When constructing the database, pay attention to the following restrictions and notes
Do not set compression and encryption for the drive and folder for constructing the database.
If the Systemwalker Centric Manager database has already been constructed, specify a different database directory to the Systemwalker Centric Manager database.
For the logon user name of Windows, specify within 18 characters, which has Administrator authority and begins with English letters.
Do not delete the Windows logon user for constructing database. After installation, when executing the operating environment extension, SWDTP_dbbk.exe (DTP data backup) command, SWDTP_dbrs.exe (DTP data restoration) command, dtplook.exe (log collection) command and dtpctlusr.exe (standard database user modification) command, Windows logon user for constructing operating environment or Windows logon user added through dtpctlusr.exe (standard database user modification) command is required.
If a database (SQL Server/Oracle) used in V11.0L10 or earlier has not been started, or is being started, the number of PCs may fail to be retrieved.
Wait a few moments, and re-execute after the old database (SQL Server/Oracle) is started.
Refer to "Required Hardware" in the Systemwalker Desktop Patrol User's Guide for details on a rough estimate of the database capacity.
The procedures for constructing Systemwalker Desktop Patrol database are as follows:
If executing custom installation, then execute from step 3.
Log on to Windows with the user that belongs to the Administrators group and the user that belongs to the Administrators group of domain or Domain Admins group in local computer.
If you are using other applications, close them.
Select Start > All Programs > Systemwalker Desktop Patrol > Operation Environment Maintenance Guide, or Apps > Systemwalker Desktop Patrol > Operation Environment Maintenance Guide.

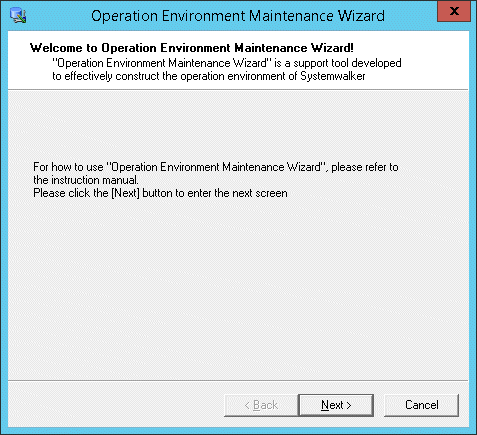

The Operation Environment Maintenance Wizard window is displayed. Click the Next button.

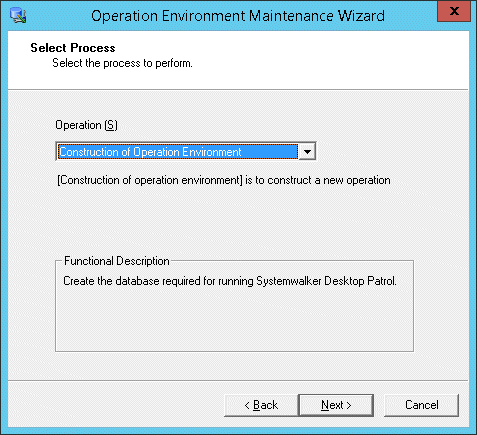

The Select Process window is displayed. Set Operation and click the Next button.
Here, select Construction of Operation Environment in Operation.

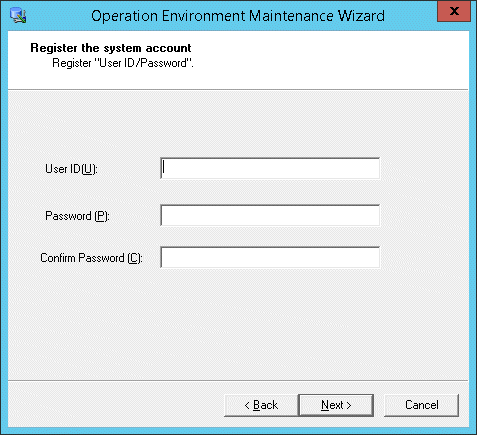

The Register the system account window is displayed, input system account information and click the Next button.
Item | Description |
|---|---|
User ID | Single-byte alphanumeric characters within 4-20 characters and the following single-byte symbols. Besides, it is case sensitive for English alphabets. "-", "@", ".", "_" |
Password | Single-byte alphanumeric characters within 4-12 characters, single-byte space and the following single-byte symbols. Besides, it is case sensitive for English letters. "-", "=", "*", "+", "'", "@", "~", "(", ")", "&", "$", "#", """, "!", "?", "%", "\", ".", ",", "/", ":", ";", "`", "[", "]", "|", "<", ">", "{", "_", "}" |
Confirm Password | Enter the password set above for confirmation. |
The system account registered here is the one for operating the main menu.
For system account, refer to the instructions in "Authority for Operation" of Systemwalker Desktop Patrol Operation Guide: for Administrators.

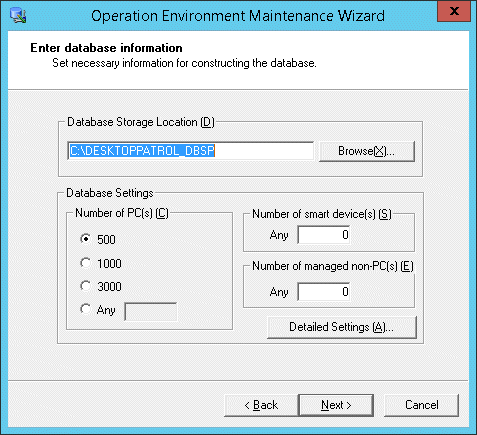

The Enter database information window is displayed. Set Database Storage Location and Database Settings.
Item | Description |
|---|---|
Database Storage Location | Path name of 64 characters at most can be specified in the database saving target. You cannot specify fullwidth characters, halfwidth spaces, tabs, and the following symbols: , ; ' # If the directory name specified in the database saving target is different from "DESKTOPPATROL_DBSP", "DESKTOPPATROL_DBSP" directory will be automatically created under the specified directory, and the database will be saved in it. |
Number of PC(s) | Select the correspondent number of PC(s). When specifying an arbitrary number, enter within 100-100,000. For the standard of database capacity, refer to "Hardware" of Systemwalker Desktop Patrol User's Guide. Note Number of PC(s) is a standard of number of PC(s) that can be managed Number of PC(s) is a standard of the number of PC(s) that can be managed in Systemwalker Desktop Patrol. According to the situation, it might be smaller than the specified number of PC(s). At this time, the capacity of Systemwalker standard database can be extended by performing "Extend Operation Environment". Point About version upgrade from V11.0L10 When performing version upgrade from V11.0L10, the approximate number in use currently will be displayed in number of PC(s). Modify the number of PC(s) as required. |
Number of smart device(s) | Specify the estimated number of smart devices to be managed by Systemwalker Desktop Patrol. You can specify a number from 0 to 100000. |
Number of managed non-PC(s) | Set the devices (devices) managed in Systemwalker Desktop Patrol. Number within 0-100000 can be set. |

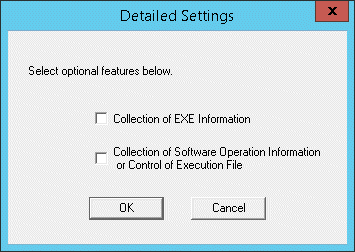

To perform Collection of EXE Information and Collection of Software Operation Information or Control of Execution File, click the Detailed Settings button. Access the next procedure if not to set.
Select the collected information and click the OK button.

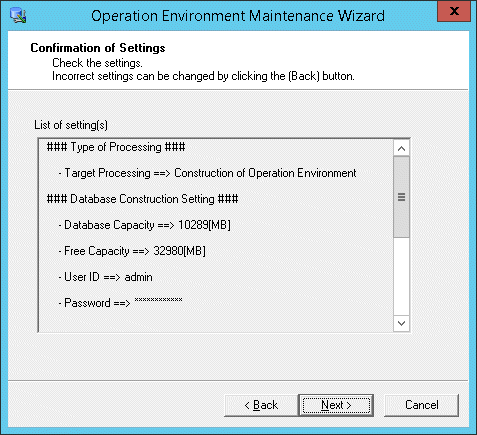

Click the Next button, the Confirmation of Settings window is displayed, confirm whether the content displayed in the confirmation window is correct, and click the Next button.
Display the Execute Processing window and start to create the database.
Besides, if Cancel is clicked to interrupt Construct Operation Environment, the interrupted Construct Operation Environment can be restarted by executing again Operation Environment Maintenance Guide.
The Process Competed window is displayed after the processing has been completed normally. Click the Finish button.
