Systemwalker Desktop Patrol Installation Guide

2.3.1 IIS Installation and Settings

Systemwalker Desktop Patrol manages by using Web browser.

Procedures for installing ISAPI extension when newly installing IIS

1. Select Administrative Tools > Server Manager from Control Panel.

2. The Server Manager window is displayed, click Add Roles.



3. The Before You Begin window of Add Roles Wizard is displayed, click the Next button.



4. The Select Server Roles window of Add Roles Wizard is displayed, select Web Server (IIS) and click the Next button.



5. The Web Server (IIS) window of Add Roles Wizard is displayed, click the Next button.

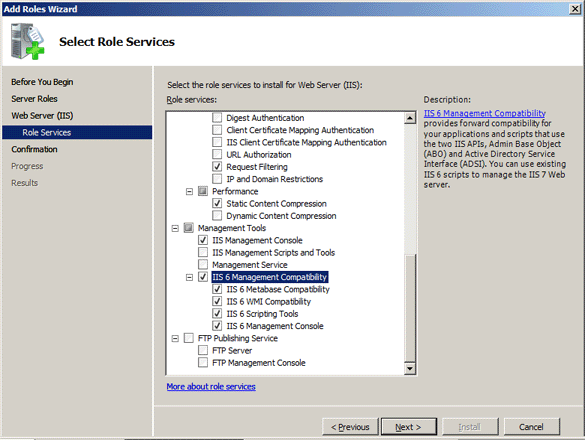

6. The Select Role Services window of Add Roles Wizard is displayed, select the following items and click the Next button.

   • Application Development > ISAPI Extensions

   • Management Tools > IIS 6 Management Compatibility

   Besides, if the following items have not been selected, select them.

   • Common HTTP Features > Static Content

   • Common HTTP Features > Default Document

   • Common HTTP Features > Directory Browsing

   • Common HTTP Features > HTTP Errors





7. The Confirm Installation Selections window of Add Roles Wizard is displayed. Click Install.



8. After installation has completed, click Close.




Procedure of installing ISAPI extension when IIS has been installed

1. Select Administrative Tools > Server Manager from Control Panel.

2. The Server Manager window is displayed, select Roles > Web Server (IIS) in the tree view.



3. The Web Server (IIS) window is displayed. Click Add Role Services.



4. The Select Role Services window of Add Role Service is displayed, select when the following items have not been selected and click the Next button.

   • Application Development > ISAPI Extensions.

   • Management Tools > IIS6 Management Compatibility

   Besides, if the following items have not been selected, select them.

   • Common HTTP Features > Static Content

   • Common HTTP Features > Default Document

   • Common HTTP Features > Directory Browsing

   • Common HTTP Features > HTTP Errors





5. The Confirm Installation Selections window is displayed. Click Install.



6. After the installation has completed, click Close.

Installation procedure for the ISAPI extensions when IIS is installed for the first time

1. When Windows Server(R) 2012 starts, it automatically starts Server Manager.
   If this does not happen, click the Server Manager icon at the bottom left of the window to start it.

   The Server Manager window will be displayed. In the Manage menu at the top-right of the window, click Add Roles and Features.



2. The Add Roles and Features Wizard will be displayed. In Installation Type, select Role-based or feature-based installation, and click Next.



3. In Server Selection, select Select a server from the server pool. Select the server to be installed from Server Pool, and click Next.



4. In Server Roles > Roles, ensure that Web Server (IIS) is selected.



5. A confirmation window will be displayed. Click Add Features.



6. In Select server roles, click Next.



7. In Select features, click Next.



8. In Web Server Role (IIS), click Next.



9. In Select role services, ensure that Web Server > Application Development > ISAPI Extensions is selected.



10. Ensure that the four features listed under Management Tools > IIS 6 Management Compatibility are selected, and click Next.

    Note

    Ensure that the following items are selected.

    • Web Server > Common HTTP Features > Static Content

    • Web Server > Common HTTP Features > Default Document

    • Web Server > Common HTTP Features > Directory Browsing

    • Web Server > Common HTTP Features > HTTP Errors



11. A confirmation window will be displayed. Click Install.



12. Once installation is completed, click Close.

Installation procedure for the ISAPI extensions when IIS is already installed

1. Click the Server Manager icon in the bottom-left of the window to start it.

2. The Server Manager window will be displayed. In the Manage menu in the top-right of the window, click Add Roles and Features.



3. The Add Roles and Features Wizard will be displayed. In Installation Type, click Next.



4. In Server Selection, click Next.



5. In Select role services, ensure that Web Server > Application Development > ISAPI Extensions is selected.



6. Ensure that the four features listed under Management Tools > IIS 6 Management Compatibility are selected, and click Next.

   Note

   Ensure that the following items are selected.

   • Web Server > Common HTTP Features > Static Content

   • Web Server > Common HTTP Features > Default Document

   • Web Server > Common HTTP Features > Directory Browsing

   • Web Server > Common HTTP Features > HTTP Errors



7. In Select features, click Next.



8. A confirmation window will be displayed. Click Install.



9. Once installation is completed, click Close.
