Systemwalker Operation Manager  User's Guide
FUJITSU Software

6.7.1 Automatic Update Interval for Window Displays

The following windows are automatically updated with the latest information at fixed intervals. The following table shows the default refresh intervals for each window.

Window title

Refresh interval

Gantt Chart window
Job Net Management window
Job Nets Management window
Monitor Group window
Group Management window
Multi-server Monitoring window

5 minutes

Monitor Job Net window

60 seconds

The refresh interval can be changed as follows:

For the Gantt Chart, Job Net Management, Monitor Group, and Group Management windows

You can change the refresh interval. To do so, select Auto Update Interval from the View menu, and specify the desired interval in the Specify Auto Update Interval window. Any changes made in this way will be applied to all servers.

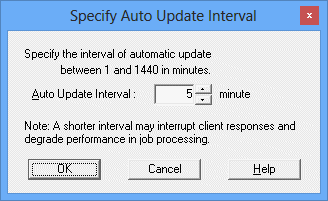

Figure 6.31 Specify Auto Update Interval window

Auto Update Interval:

Specifies the refresh interval. The value must be within the range of 1 to 1440 minutes.

For the Monitor Job Net window

You can change the refresh interval. To do so, select Auto Update Interval from the View menu, and specify the desired interval in the Specify Auto Update Interval window. Any changes made in this way will be applied to all servers.

Figure 6.32 Specify Auto Update Interval window

Auto Update Interval:

Specifies the refresh interval. The value must be within the range of 10 to 60 seconds.

For the Multi-server Monitoring and Job Nets Management windows

Select Specify Auto Update Interval from the Options menu of the window to be changed, and make the changes using the Specify Auto Update Interval window that is then displayed.

Figure 6.33 Specify Auto Update Interval window

Auto Update Interval:

Specifies the refresh interval. The value must be within the range of 1 to 1440 minutes.

Information

Suppressing the display of Specify Auto Update Interval window

You can suppress to display the Specify Auto Update Interval window.

To make settings so that the Specify Auto Update Interval window is not displayed on Systemwalker Operation Manager clients and multi-server monitoring clients, edit the definition in the following directory on the clients: Systemwalker Operation Manager installation directory\MpWalker.JM\mpjmcl\etc.

  • Edit the Jobschr.ini file (for Systemwalker Operation Manager clients) or the mltisvmn.ini file (for multi-server monitoring clients), as shown below.

    Section name: SET_LIMIT

    Key name: UPDATE_INTERVAL

    Value: 0 (Do not suppress.) or 1 (Suppress the display.)

    • An example to suppress the display of Specify Auto Update Interval window:

      [SET_LIMIT]
      UPDATE_INTERVAL=1
