This operation involves checking the progress of the patch distribution/application process, parameter configuration process, or script execution process.
Operation method
Log in to the management console.
Use either of the following methods to display the Task management window:
Select Task management from the menu in the management console.
Click the Task management link in the Home window.
When a task is selected to confirm the status from the list of tasks displayed, detailed information about the task is displayed at the bottom of the window.
By selecting an option from the Task Filters pull-down menu above the list, the tasks displayed in the list can be filtered according to the filter conditions.
If My Completed Tasks is selected from the Task Filters pull-down menu, a list of the tasks that the login user has completed in the past can be viewed.
The following tasks complete automatically and so a list of these tasks can be viewed by selecting My Completed Tasks from the Task Filters pull-down menu.
Patch distribution acceptance task
Patch application acceptance task
Parameter setting acceptance task
Script execution acceptance task
Patch distribution completion task
Patch application completion task
Parameter setting completion task
Script execution completion task
Click the Details tab, and then click the Status check tab in the Form panel.
In the Status check tab, the status of various items can be checked to see the progress of ongoing tasks, and history information for completed tasks. All tasks can be viewed in the Status check tab.
Confirmation item | Status | Meaning | Execution time | Executed by |
|---|---|---|---|---|
Patch distribution/application acceptance | Distribution accepted | A patch distribution request has been made and the request has been accepted, with a distribution acceptance task being processed automatically as normal. | Displays the date and time of the task execution. | Displays the user that performed the patch distribution/application. |
Application accepted | A patch application request has been made and the request has been accepted, with an application acceptance task being processed automatically as normal. | |||
Schedule cancelation | - (hyphen) | The task has either been skipped, or did not begin. Alternatively, signifies that no error has occurred. | ||
Cancel | Cancelation has been executed in a schedule cancelation task. | |||
Server error check | - (hyphen) | The task has either been skipped, or did not begin. Alternatively, signifies that no error has occurred. | ||
Normal (after retrying) | After a server error occurred, task processing was retried and completed normally. | |||
Abnormal (canceled) | A server error occurred and processing was canceled. | |||
Pre-execution script error check | - (hyphen) | The task has either been skipped, or did not begin. Alternatively, signifies that no error has occurred. | ||
Successful (after retrying) | After processing failed, a retry was performed and processing completed normally. | |||
Continued | An error occurred, but was ignored and processing continued. | |||
Failed (canceled) | An error occurred and processing was canceled. | |||
Patch distribution/application failure check | - (hyphen) | The task has either been skipped, or did not begin. Alternatively, signifies that no error has occurred. | ||
Successful (after auto retrying) | Even if processing fails once during the patch application processing, retries will be performed automatically. Processing was successful as a result of such a retry attempt. | |||
Successful (after retrying) | After processing failed, a retry was performed and processing completed normally. | |||
Continued | An error occurred, but was ignored and processing continued. | |||
Failed (canceled) | An error occurred and processing was canceled. | |||
Post-execution script error check | - (hyphen) | The task has either been skipped, or did not begin. Alternatively, signifies that no error has occurred. | ||
Successful (after retrying) | After processing failed, a retry was performed and processing completed normally. | |||
Continued | An error occurred, but was ignored and processing continued. | |||
Failed (canceled) | An error occurred and processing was canceled. | |||
OS restart failure check | - (hyphen) | The task has either been skipped, or did not begin. Alternatively, signifies that no error has occurred. | ||
Successful (after retrying) | After processing failed, a retry was performed and processing completed normally. | |||
Continued | An error occurred, but was ignored and processing continued. | |||
Failed (canceled) | An error occurred and processing was canceled. | |||
Patch distribution/application completion | - (hyphen) | The task has either been skipped, or did not begin. | ||
Distribution complete | Patch distribution has completed. | |||
Application complete | Patch application has completed. |
Confirmation item | Status | Meaning | Execution date and time | Executed by |
|---|---|---|---|---|
Parameter settings acceptance | Settings accepted | A parameter settings request has been made and the request has been accepted, with the settings acceptance task being processed automatically as normal. | Displays the date and time of task execution. | Displays the user who configured the parameter settings. |
Schedule cancelation | - (hyphen) | The task has either been skipped, or did not begin. Alternatively, signifies that no error has occurred. | ||
Cancel | Cancelation has been executed in a schedule cancelation task. | |||
Server error check | - (hyphen) | The task has either been skipped, or did not begin. Alternatively, signifies that no error has occurred. | ||
Normal (after retrying) | After a server error occurred, task processing was retried and completed normally. | |||
Abnormal (canceled) | A server error occurred and processing was canceled. | |||
Pre-execution script error check | - (hyphen) | The task has either been skipped, or did not begin. Alternatively, signifies that no error has occurred. | ||
Successful (after retrying) | After processing failed, a retry was performed and processing completed normally. | |||
Continued | An error occurred, but was ignored and processing continued. | |||
Failed (canceled) | An error occurred and processing was canceled. | |||
Parameter settings failure check | - (hyphen) | The task has either been skipped or did not begin. Alternatively, signifies that no error has occurred. | ||
Successful (after retrying) | After the parameter setting process failed, a retry was performed on the software for which the settings failed, as well as on the software for which settings had not yet been configured, and processing completed normally. | |||
Successful (after retrying all) | After the parameter setting process failed, a retry was performed on all software and processing completed normally. | |||
Continued | An error occurred, but was ignored and processing continued. | |||
Failed (canceled) | An error occurred and processing was canceled. | |||
Post-execution script error check | - (hyphen) | The task has either been skipped, or did not begin. Alternatively, signifies that no error has occurred. | ||
Successful (after retrying) | After processing failed, a retry was performed and processing completed normally. | |||
Continued | An error occurred, but was ignored and processing continued. | |||
Failed (canceled) | An error occurred and processing was canceled. | |||
OS restart failure check | - (hyphen) | The task has either been skipped, or did not begin. Alternatively, signifies that no error has occurred. | ||
Successful (after retrying) | After processing failed, a retry was performed and processing completed normally. | |||
Continued | An error occurred, but was ignored and processing continued. | |||
Failed (canceled) | An error occurred and processing was canceled. | |||
Parameter settings completion | - (hyphen) | The task has either been skipped, or did not begin. | ||
Settings complete | The parameter setting process is complete. |
Confirmation item | Status | Meaning | Execution date and time | Executed by |
|---|---|---|---|---|
Script execution acceptance | Execution accepted | A script execution request has been made and the request has been accepted, with the execution acceptance task being processed automatically as normal. | Displays the date and time of task execution. | Displays the user who executed the script. |
Schedule cancelation | - (hyphen) | The task has either been skipped, or did not begin. Alternatively, signifies that no error has occurred. | ||
Cancel | Cancelation has been executed in a schedule cancelation task. | |||
Server error check | - (hyphen) | The task has either been skipped, or did not begin. Alternatively, signifies that no error has occurred. | ||
Normal (after retrying) | After a server error occurred, task processing was retried and completed normally. | |||
Abnormal (canceled) | A server error occurred and processing was canceled. | |||
Script execution failure check | - (hyphen) | The task has either been skipped or did not begin. Alternatively, signifies that no error has occurred. | ||
Successful (after retrying) | After processing failed, a retry was performed and processing completed normally. | |||
Continued | An error occurred, but was ignored and processing continued. | |||
Failed (canceled) | An error occurred and processing was canceled. | |||
OS restart failure check | - (hyphen) | The task has either been skipped, or did not begin. Alternatively, signifies that no error has occurred. | ||
Successful (after retrying) | After processing failed, a retry was performed and processing completed normally. | |||
Continued | An error occurred, but was ignored and processing continued. | |||
Failed (canceled) | An error occurred and processing was canceled. | |||
Script execution completion | - (hyphen) | The task has either been skipped, or did not begin. | ||
Execution complete | The script execution process is complete. |

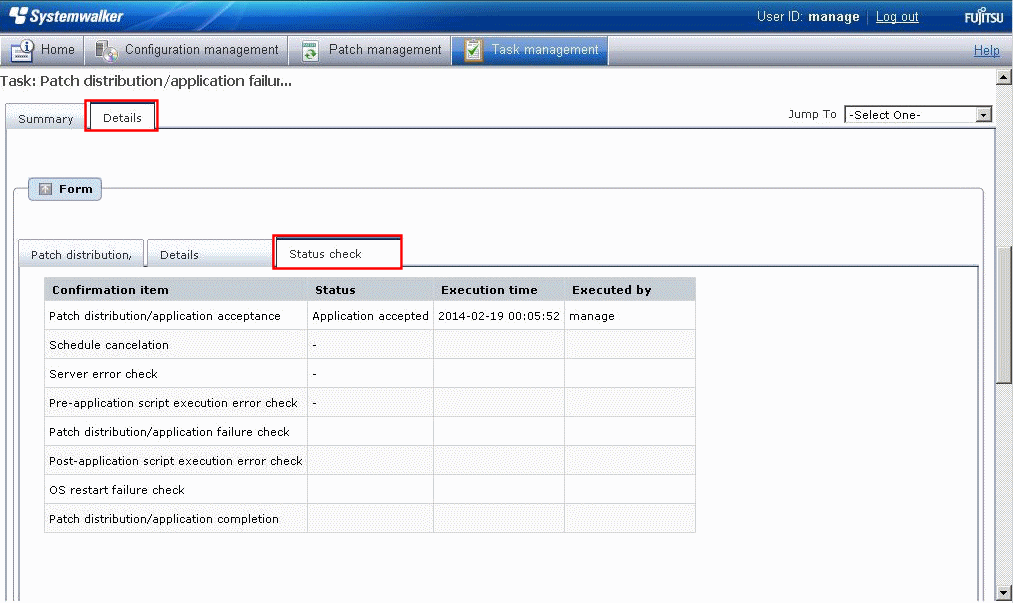

Figure 4.1 Example of the Status check tab when processing has been performed normally

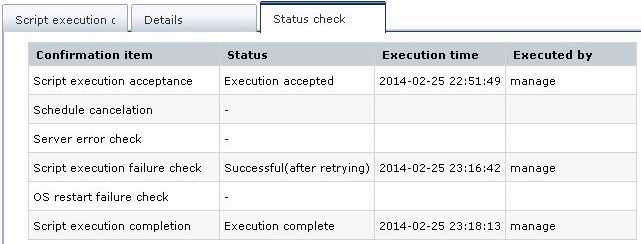

Figure 4.2 Example of the Status check tab when processing has been performed by retry operations
