Interstage Studio J Business Kit GUI Library Sample Guide

2.3.7 Object Control Facility Sample

The Object Control Facility Sample manages objects using Object Control Facility.

This sample can be referenced as a simple sample of the program handling mass objects.

The Object Control Facility Sample uses the following classes.

• JFCObjectLoaderManager

• JFCObjectLoader

Operation method

Proceed as follows to operate this sample.

1. Start the application.

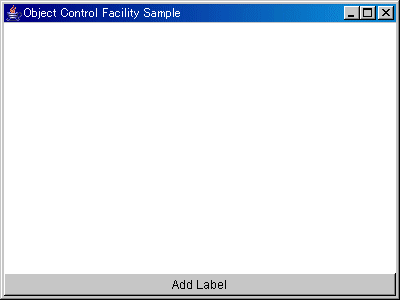

   Figure 2.14 Screen after stared



2. Pressing the [Add Label] displays the label on the screen.

   At the same time, [Label data] is set as the label's data internally.

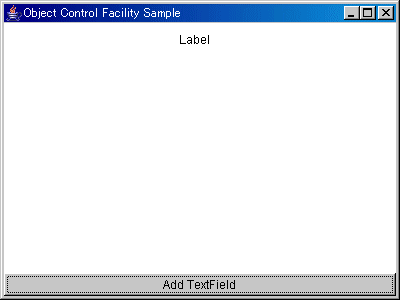

   Figure 2.15 Screen after added the label



3. Pressing the [Add TextField] displays the text field on the screen.

   The text field displays [Label data] that is the label's data.
   Also, at the same time, [TextField data] is set as the text field's data internally.

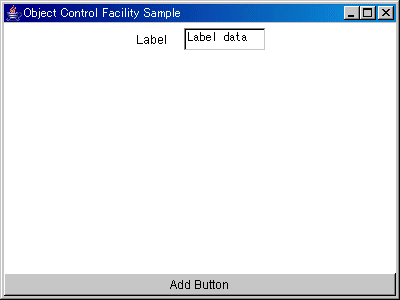

   Figure 2.16 Screen after added the text field



4. Pressing [Add Button] displays the button on the screen.

   The button displays [TextField data] that is the text field's data.

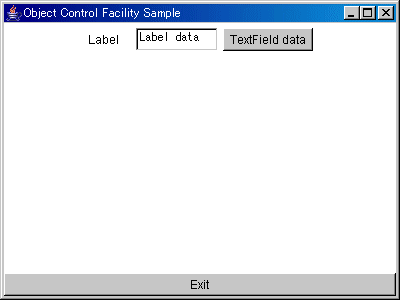

   Figure 2.17 Screen after added the button



5. Pressing [Exit] button to finish the sample.

Source codes

• Object Control Facility sample:"Sample Storage Destinations"/JFCObject/Sample.java

• Subclass of JFCObjectLoaderManager:"Sample Storage Destinations"/JFCObject/ObjectManager.java
