2.3 Limitation of Switchover Scopes

Define whether switchover scopes are limited.

Item

Description

Remarks

Limitation of switchover scopes

Limited

Switchover scopes cannot be limited when using Hyper-V as server virtualization software.

Not limited


Information

Regarding Limitation of Switchover Scopes

  • Specification of the target storage pools to replicate enables limitation of the scope to be recovered using the backup site. Refer to "Figure 2.7 Limitation of Switchover Scopes".

  • When specifying the target storage pools to replicate, the following resources cannot be recovered to the backup site.

    1. Disk resources or virtual storage resources registered in the storage pools which are not specified

    2. L-Platforms using the storage in step 1

    3. Images using the storage used in step 1

    4. Tenants which are only related to the storage pools in step 1

    For details on how to specify storage pools, refer to "3.3 Manager Installation and Configuration".

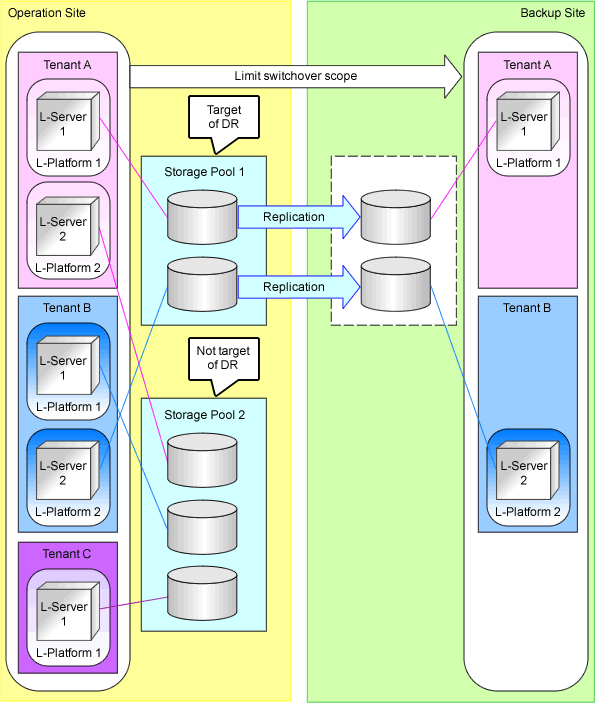

Figure 2.7 Limitation of Switchover Scopes
