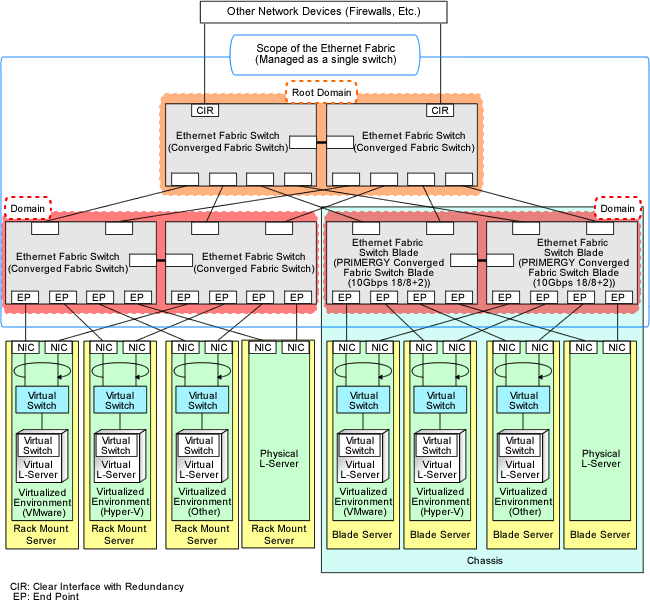

The configuration example of the Ethernet fabric configured using "Fujitsu PRIMERGY Converged Fabric Switch Blade (10 GPS 18/8+2)" and "Fujitsu CFX 2000 Series" is shown in "Figure H.1 Network Device Management Unit".
Resource Orchestrator manages all devices comprising an Ethernet fabric as a single network device.
For the port name to specify for the link information of the Network Configuration Information necessary for registration as a network device, specify a port with the type EP (End Point) and CIR (Clean Interface with Redundancy). For details on how to confirm the port name to specify, refer to "9.4.8.1 When Creating Network Configuration Information (XML Definition)".
For the admin IP address to specify when stating the network device information in the Network Configuration Information, specify the representative virtual IP address of the fabric.
Figure H.1 Network Device Management Unit
