This section explains the procedure for configuring the shutdown facility with the shutdown configuration wizard or CLI.
The configuration procedure for the shutdown facility varies depending on the machine type. Check the machine type of hardware and set an appropriate shutdown agent.
The following table shows the shutdown agent necessary by machine type.
Server machine type name | RCI | XSCF | RCCU | ALOM | ILOM | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panic | Reset | Panic | Reset | Console | Console | Console | Panic | Reset | |||||
PRIME | 200 | Y | Y | - | - | - | Y | - | - | - | |||
250 | XSCF | Y | Y | Y | Y | Y | - | - | - | - | |||
RCCU | Y | Y | - | - | - | Y | - | - | - | ||||
650 | Y | Y | - | - | - | Y | - | - | - | ||||
800 | Y | Y | - | - | - | - | - | - | - | ||||
900 | Y | Y | - | - | - | - | - | - | - | ||||
1000 | Y | Y | - | - | - | - | - | - | - | ||||
1500 | Y | Y | - | - | - | - | - | - | - | ||||
SPARC Enter | M3000 | Japan | Fujitsu | Y | Y | Y | Y | Y | - | - | - | - | |
Other than Fujitsu | - | - | Y(*6) | Y(*6) | Y(*6) | - | - | - | - | ||||
Other than Japan | - | - | Y(*7) | Y(*7) | Y(*7) | - | - | - | - | ||||
T1000 | - | - | - | - | - | - | Y(*3) | - | - | ||||
T5120 | - | - | - | - | - | - | - | Y(*3) | Y | ||||
SPARC | T3 series | - | - | - | - | - | - | - | Y(*3) | Y | |||
S-Series | - | - | - | - | - | Y | - | - | - | ||||
(*1) XSCF is used for the console.
(*2) RCCU is used for the console.
(*3) You cannot configure the shutdown configuration wizard. You configure with CLI.
(*4) When using ILOM Reset, you need to apply a patch for PRIMECLUSTER (914468-07 or later).
(*5) When using ILOM Reset, you need firmware for SPARC Enterprise server (System Firmware 7.1.6.d or later).
(*6) When using SPARC Enterprise M3000, M4000, M5000, M8000, or M9000 provided by companies other than Fujitsu in Japan, you need to apply a patch for PRIMECLUSTER (914468-05 or later).
(*7) When using SPARC Enterprise M3000, M4000, M5000, M8000, or M9000 with logos of both Fujitsu and Oracle provided in other than Japan, you need to apply a patch for PRIMECLUSTER (914468-07 or later).
Note
When you are operating the shutdown facility by using one of the following shutdown agents, do not use the console.
XSCF Panic
XSCF Reset
XSCF Console Break
RCCU Console Break
ILOM Panic
ILOM Reset
If you cannot avoid using the console, stop the shutdown facility of all nodes beforehand. After using the console, cut the connection with the console, start the shutdown facility of all nodes, and then check that the status is normal. For details on stop, start, and the state confirmation of the shutdown facility, see the manual page describing sdtool(1M).
In the /etc/inet/hosts file, you must describe IP addresses and host names of the administrative LAN used by the shutdown facility for all nodes. Check that IP addresses and host names of all nodes are described.
When you set up asynchronous RCI monitoring, you must specify the timeout interval (kernel parameter) in /etc/system for monitoring via SCF/RCI. Kernel parameters vary depending on the server type. Then check your server type so you can set the appropriate timeout interval.
To make the administrative LAN, used in the shutdown facility, redundant by GLS, use the physical IP address takeover function of NIC switching mode.
See
For details on the shutdown facility and the asynchronous monitoring function, refer to the following manuals:
"3.3.1.8 PRIMECLUSTER SF" in the "PRIMECLUSTER Concept Guide".
"8. Shutdown Facility" in "PRIMECLUSTER Cluster Foundation (CF) Configuration and Administration Guide".
The console used is different in dependence on the machine type. Check the hardware machine type and configure information of console.
For a PRIMEPOWER 250 or 450:
RCCU or XSCF
For a PRIMEPOWER 200, 400, 600, 650 or 850:
RCCU
For a S-Series:
RCCU
Note
Check the console information before initially configuring the cluster system.
Set the IP address of RCCU or XSCF to the same segment as the administrative LAN.
Checking RCCU
If RCCU is used for the console, record the following information on RCCU. Note, however, that you do not need to record if you use the console with the factory settings.
RCCU IP address or a RCCU host name registered in the "/etc/inet/hosts" file
User name to log in the RCCU control port
Password to log in the RCCU control port
Password to log in the RCCU control port using superuser access privileges.
See
For details on how to configure and check RCCU, see the instruction manual provided with RCCU.
Checking XSCF
Check the following settings concerning XSCF before setting the shutdown facility.
In XSCF, the telnet must be effective in connected permission protocol type from the outside.
The log in user account must be made for the shutdown facility, and group ID must be root.
Note
When the connection to XSCF is a serial port connection alone, it is not supported in the shutdown facility. Please use XSCF-LAN.
Moreover, record the following information on XSCF.
XSCF IP address or an XSCF host name registered in the "/etc/inet/hosts" file of the node
Log in user account and password for shutdown facility in XSCF
*1) When the network routing is set, IP address of XSCF need not be the same to management LAN segment of the cluster node.
See
For information on how to configure and confirm XSCF, see the "XSCF User's Guide".
The configuration procedure for the shutdown facility varies depending on the machine type. Check the hardware machine type and configure an appropriate shutdown agent.
For a PRIMEPOWER 250, or 450:
RCI Panic
XSCF Panic
Console Break
RCI Reset
XSCF Reset
For a PRIMEPOWER 200, 400, 600, 650, or 850:
RCI Panic
Console Break
RCI Reset
For a PRIMEPOWER 800, 900, 1000, 1500, 2000, or 2500:
RCI Panic
RCI Reset
For a S-Series:
Console Break
Starting up the shutdown configuration wizard

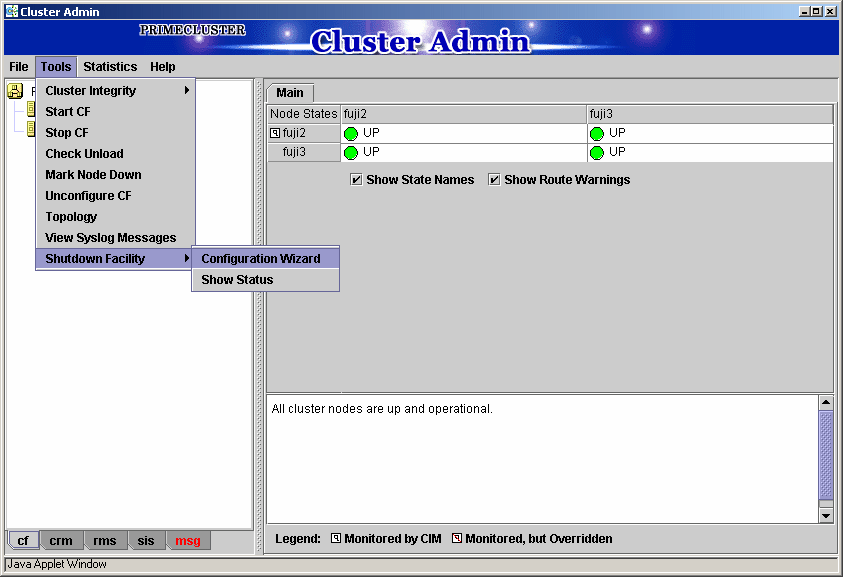

From the CF main window of the Cluster Admin screen, select the Tool menu and then Shutdown Facility -> Configuration Wizard. The shutdown configuration wizard will start.
Information
You can also configure the shutdown facility immediately after you complete the CF configuration with the CF wizard.

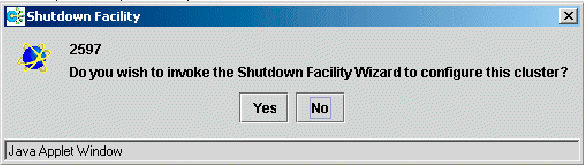

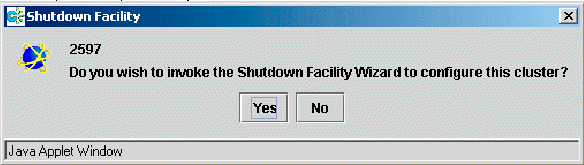

The following confirmation popup screen will appear. Click Yes to start the shutdown configuration wizard.
Selecting a configuration mode
You can select either of the following two modes to configure the shutdown facility:
Easy configuration (recommended)
Detailed configuration
This section explains how to configure the shutdown facility using Easy configuration (recommended). With this mode, you can configure the PRIMECLUSTER shutdown facility according to the procedure.

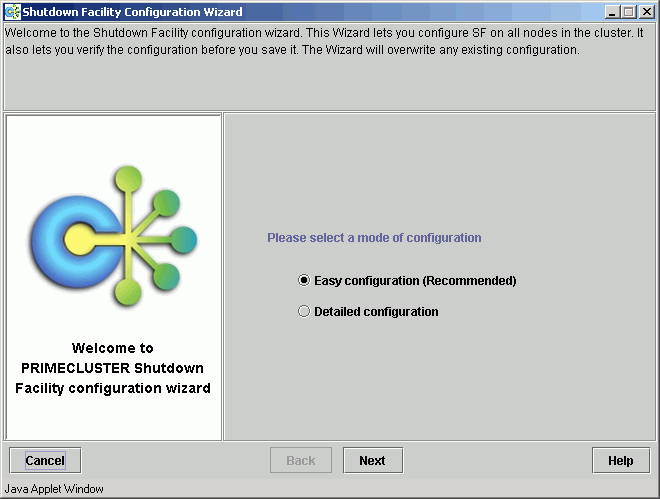

Figure 5.1 Selecting the SF configuration mode
Select Easy configuration (recommended) and then click Next.
Selecting a shutdown agent
After you confirm the hardware machine type, select an appropriate shutdown agent.

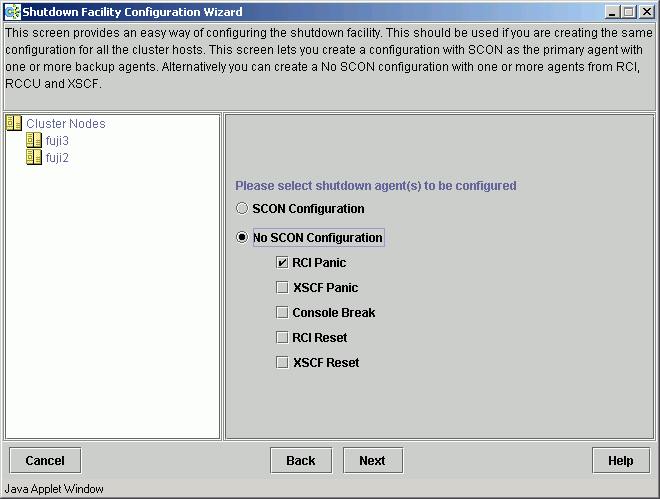

Figure 5.2 Selecting a shutdown agent
Select No SCON Configuration.
Then, select all the following shutdown agents depending on a hardware machine type.
For a PRIMEPOWER 250 or 450:
RCI Panic
XSCF Panic
Console Break
RCI Reset
XSCF Reset
* If you select Console Break, you can select RCCU or XSCF as the Console Break agent. To choose RCCU, you have to configure the RCCU unit in advance.
For a PRIMEPOWER 200, 400, 600, 650, or 850:
RCI Panic
Console Break
RCI Reset
For a PRIMEPOWER 800, 900, 1000, 1500, 2000, or 2500:
RCI Panic
RCI Reset
For a S-Series:
Console Break
* Select RCCU as Console Break agent after selecting Console Break.
Upon the completion of configuration, click Next.
Configuring XSCF
If you select XSCF Panic or XSCF Reset for the shutdown agent, the screen for configuring the XSCF will appear.
Enter the settings for XSCF that you recorded in "5.1.2.1.1 Checking Console Configuration".

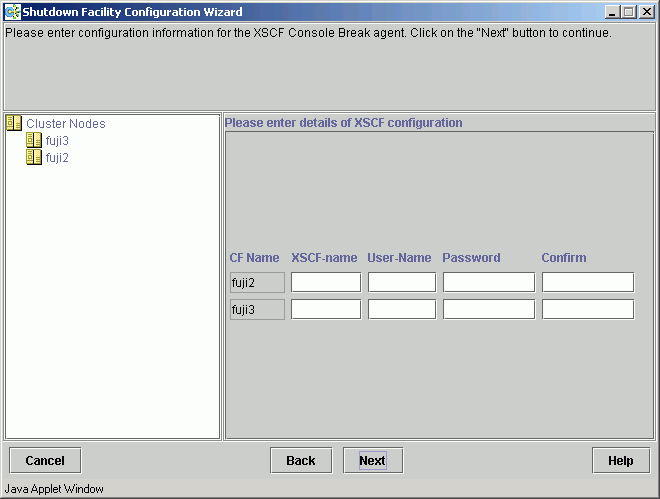

Figure 5.3 Configuring XSCF
Enter the IP address of XSCF or the host name of XSCF that is registered in the /etc/inet/hosts file.
Enter a user name to log in to the control port.
Enter a password to log in to the control port.
Once you have made all the necessary settings, click Next.
Configuring a Console Break agent
If you select Console Break as the shutdown agent, the screen used for selecting a Console Break agent will appear.
Figure 5.4 Selecting a Console Break agent
The selection to be made for the Console Break agent varies depending on the machine type to be set up. Confirm the hardware machine type and then set up an appropriate Console Break agent.
For a PRIMEPOWER 250 or 450:
RCCU or XSCF
For a PRIMEPOWER 200, 400, 600, 650, or 850:
RCCU
For a S-Series:
RCCU
Upon the completion of configuration, click Next.
Configuring RCCU
If you select RCCU as the Console Break agent, you must configure RCCU.
Enter the settings for RCCU that you recorded in "5.1.2.1.1 Checking Console Configuration".
If you wish to use RCCU with its factory settings, select Use Defaults.
Otherwise, uncheck Use Defaults, and then enter the user name, password, and superuser password.

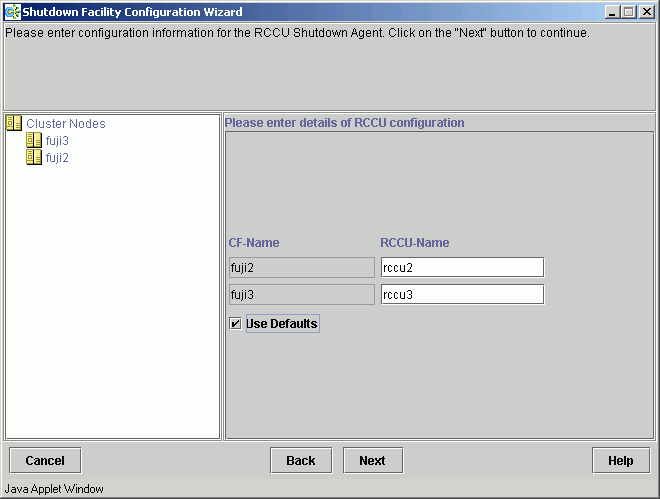

Figure 5.5 Configuring RCCU (Use Defaults)
Enter the IP address of RCCU or the host name of RCCU that is described in the /etc/inet/hosts file.
After you have completed this configuration, click Next.

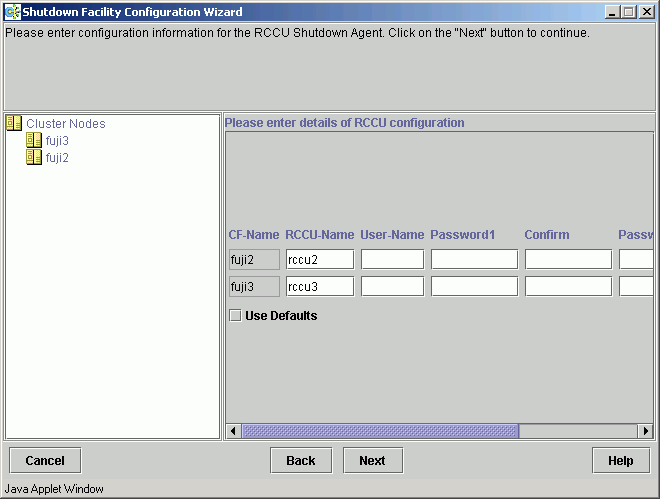

Figure 5.6 Configuring RCCU (Does not use default)
Enter the IP address of RCCU or the host name of RCCU that is described in the /etc/inet/hosts file.
Enter a user name to log in to the control port of RCCU.
Enter a password to log in to the control port of RCCU.
Enter the password that has been set for Password 1 for confirmation.
Enter a password to log in to the control port of RCCU with superuser access privileges.
Enter the password that has been set for Password 2 (Admin) for confirmation.
Upon the completion of configuration, click Next.
Configuring Wait for PROM
Note
Wait for PROM is currently not supported.
Uncheck the check box if checked, and then click the Next button.

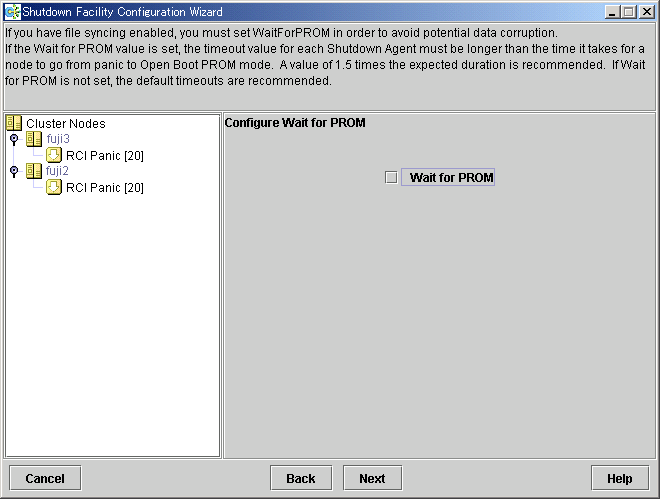

Figure 5.7 Configure Wait for PROM
Entering node weights and administrative IP addresses
Enter the weights of the nodes and the IP addresses for the administrative LAN.

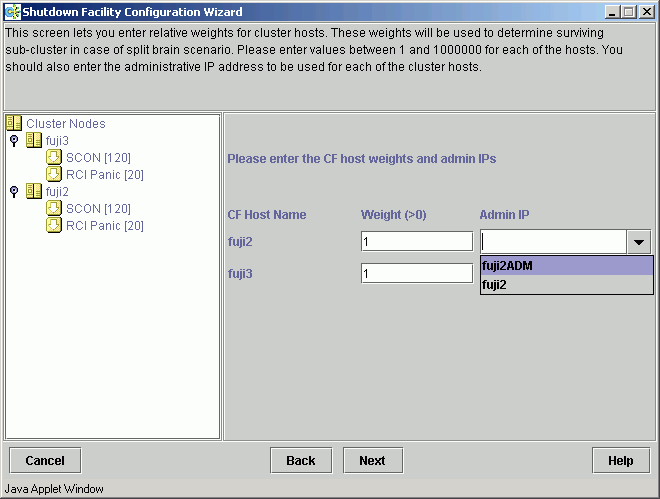

Figure 5.8 Entering node weights and administrative IP addresses
Enter the weight of the node that constitutes the cluster. Weight is used to identify the survival priority of the node group that constitutes the cluster. Possible values for each node range from 1 to 300.
For details on survival priority and weight, refer to the explanations below.
Enter an IP address directly or click the tab to select the host name that is assigned to the administrative IP address.
Once you have completed this configuration, click Next.
Even if a cluster partition occurs due to a failure in the cluster interconnect, all the nodes will still be able to access the user resources. For details on the cluster partition, see "2.2.2.1 Protecting data integrity" in the "PRIMECLUSTER Concept Guide".
To guarantee the consistency of the data constituting user resources, you have to determine the node groups to survive and those that are to be forcibly stopped.
The weight assigned to each node group is referred to as a "Survival priority" under PRIMECLUSTER.
The greater the weight of the node, the higher the survival priority. Conversely, the less the weight of the node, the lower the survival priority. If multiple node groups have the same survival priority, the node group that includes a node with the name that is first in alphabetical order will survive.
Survival priority can be found in the following calculation:
Survival priority = SF node weight + ShutdownPriority of userApplication
Weight of node. Default value = 1. Set this value while configuring the shutdown facility.
Set this attribute when userApplication is created. For details on how to change the settings, see "8.1.2 Changing the Operation Attributes of a Cluster Application".
See
For details on the ShutdownPriority attribute of userApplication, see "6.6.5 Attributes".
The typical scenarios that are implemented are shown below:
Set the weight of all nodes to 1 (default).
Set the attribute of ShutdownPriority of all user applications to 0 (default).
Set the "weight" of the node to survive to a value more than double the total weight of the other nodes.
Set the ShutdownPriority attribute of all user applications to 0 (default).

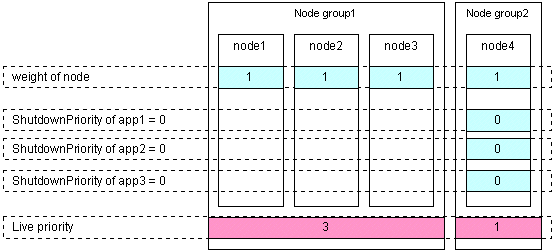

In the following example, node1 is to survive:
Set the "weight" of all nodes to 1 (default).
Set the ShutdownPriority attribute of the user application whose operation is to continue to a value more than double the total of the ShutdownPriority attributes of the other user applications and the weights of all nodes.

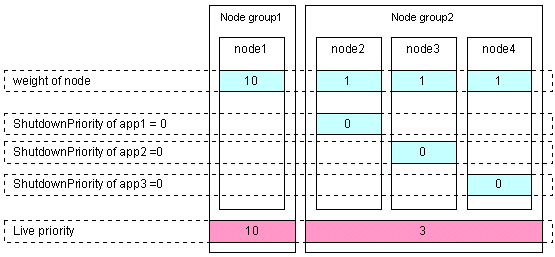

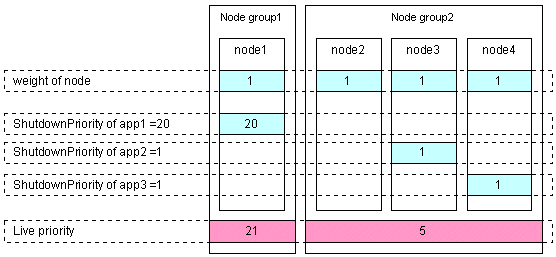

In the following example, the node for which app1 is operating is to survive:
Saving the configuration
Confirm and then save the configuration. In the left-hand panel of the window, those nodes that constitute the cluster are displayed, as are the shutdown agents that are configured for each node.

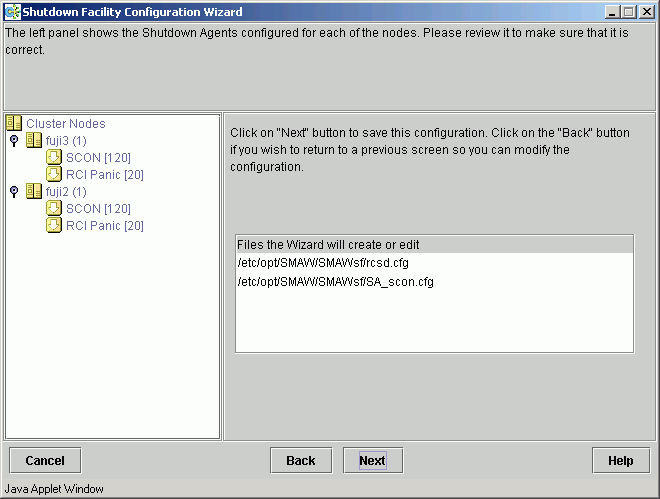

Figure 5.9 Saving the configuration
Click Next. A popup screen will appear for confirmation. Select Yes to save the setting.
Displaying the configuration of the shutdown facility
If you save the setting, a screen displaying the configuration of the shutdown facility will appear. On this screen, you can confirm the configuration of the shutdown facility on each node by selecting each node in turn.
Information
You can also view the configuration of the shutdown facility by selecting Shutdown Facility -> Show Status from the Tool menu.

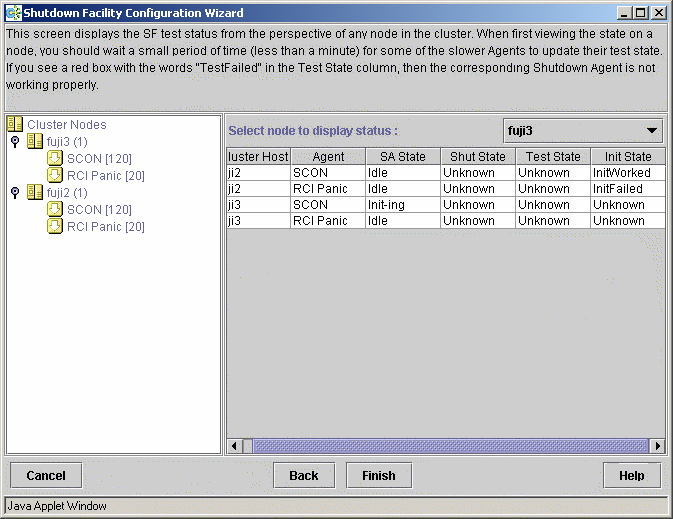

Figure 5.10 Show Status
"Unknown" is shown during normal system operation. If an error occurs and the shutdown facility stops the relevant node successfully, "Unknown" will change to "KillWorked".
Indicates the state in which the path to shut down the node is tested when a node error occurs. If the test of the path has not been completed, "Unknown" will be displayed. If the configured shutdown agent operates normally, "Unknown" will be changed to "TestWorked".
Indicates the state in which the shutdown agent is initialized.
To exit the configuration wizard, click Finish. Click Yes in the confirmation popup screen that appears.
Note
Confirm that the shutdown facility is operating normally.
If "InitFailed" is displayed in the Initial state even when the configuration of the shutdown facility has been completed or if "Unknown" is displayed in the Test state or "TestFailed" is highlighted in red, the agent or hardware configuration may contain an error. Check the /var/adm/messages file and the console for an error message. Then, apply appropriate countermeasures as instructed the message that is output.
See
For details on how to respond to the error messages that may be output, see the following manual.
"12.12 Monitoring Agent messages" in the "PRIMECLUSTER Cluster Foundation (CF) Configuration and Administration Guide".
Confirm that the timeout value for each shutdown agent is as shown below. You can confirm the timeout value in the left-hand panel of the shutdown configuration wizard screen.
<How to calculate a timeout value>
For RCCU or XSCF
4 or fewer nodes
Timeout value = 20 (seconds)
5 or more nodes
Timeout value = 6 x number of cluster nodes + 2 (seconds)
Example) For 5 nodes: 6 x 5 + 2 = 32 (seconds)
For RCI
Timeout value = 20 (seconds)
If the value has not been set as explained above, set a timeout value as follows.
Setting a timeout value
In the CF main window of Cluster Admin, select Shutdown Facility -> Configuration Wizard from the Tool menu and then start the configuration wizard.
Figure 5.11 Selecting a configuration mode
Select Detailed configuration, and then click Next.

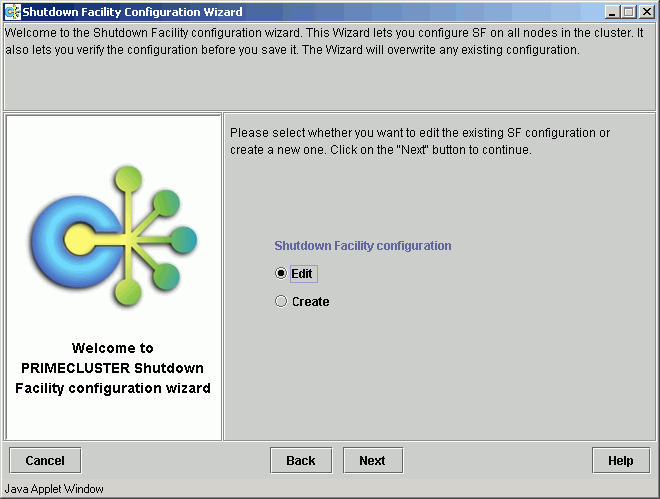

Select Edit, and then click Next.

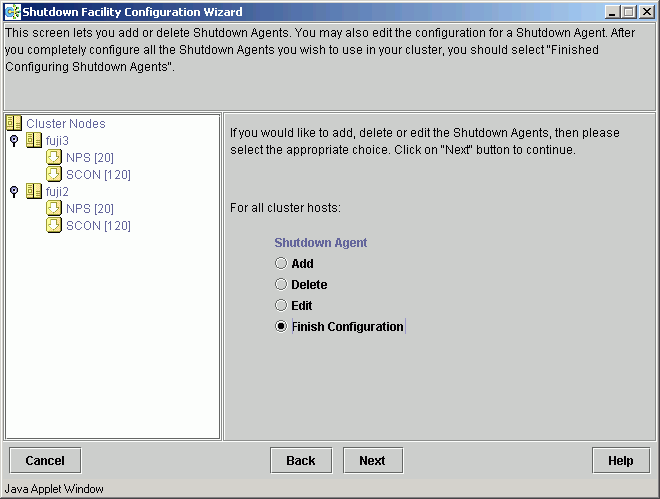

Select Finish configuration, and then click Next.

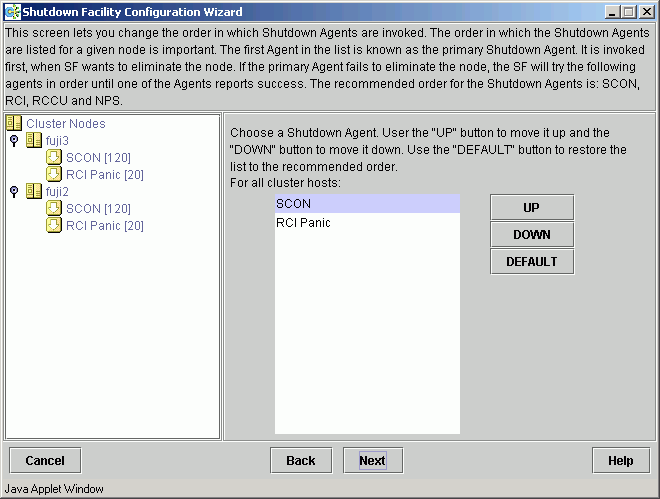

Figure 5.12 Changing the Shutdown Agent order
Click Next.
Note
Do not change the order in which shutdown agents are invoked.

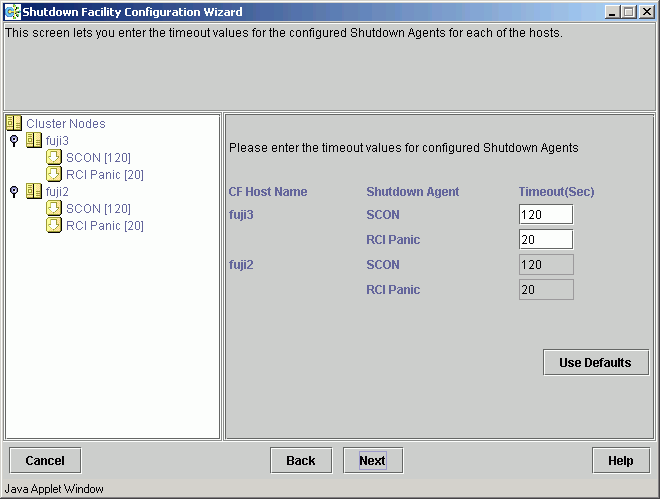

Figure 5.13 Timeout value
Enter the timeout values in seconds. The default value is 20 seconds.
Once you have completed the configuration, click Next.
The "Entering node weights and administrative IP addresses" screen will appear. Click Next and then save the settings.
In SPARC Enterprise M3000, M4000, M5000, M8000, and M9000, XSCF is used. The connection method to XSCF as the shutdown facility can be selected from SSH or the telnet.
Default connection is SSH.
Please confirm the following settings concerning XSCF before setting the shutdown facility.
Commonness
The log in user account must be made excluding root for the shutdown facility, and the platadm authority must be given.
At the SSH connection
In XSCF, SSH must be effective in connected permission protocol type from the outside.
User inquiries of the first SSH connection (such as generation of the RSA key) must be completed by connecting to XSCF from all the cluster nodes via SSH using the log in user account for the shutdown facility.
At the telnet connection
In XSCF, telnet must be effective in connected permission protocol type from the outside.
Note
When the connection to XSCF is a serial port connection alone, it is not supported in the shutdown facility. Please use XSCF-LAN.
Moreover, record the following information on XSCF.
XSCF IP address or an XSCF host name registered in the "/etc/inet/hosts" file of the node
Log in user account and password for shutdown facility in XSCF
*1) When the network routing is set, IP address of XSCF need not be the same to management LAN segment of the cluster node.
See
For information on how to configure and confirm XSCF, see the "XSCF User's Guide".
The required shutdown agent and the configuration procedure for the shutdown agent vary depending on the hardware machine type.
Check the following combinations of the hardware machine types and shutdown agents, and then set up an appropriate shutdown agent.
SPARC Enterprise M3000, M4000, M5000, M8000, and M9000 provided by companies other than Fujitsu in Japan
SPARC Enterprise M3000, M4000, M5000, M8000, and M9000 with logos of both Fujitsu and Oracle provided in other than Japan
XSCF Panic
Console Break
XSCF Reset
SPARC Enterprise M3000, M4000, M5000, M8000, and M9000 other than above
RCI Panic
XSCF Panic
Console Break
RCI Reset
XSCF Reset
Setting up the operation environment for the asynchronous monitoring
This setting is required only for the following cases:
SPARC Enterprise M3000, M4000, M5000, M8000, and M9000 provided by companies other than Fujitsu in Japan
SPARC Enterprise M3000, M4000, M5000, M8000, and M9000 with logos of both Fujitsu and Oracle provided in other than Japan
You need to set up the operation environment for the asynchronous monitoring beforehand.
Execute the following command in any one of the nodes in the cluster system.
# /etc/opt/FJSVcluster/bin/cldevparam -p VendorType 1 |
Execute the following command in all nodes to confirm that the setting is correct.
# /etc/opt/FJSVcluster/bin/cldevparam -p VendorType 1 # |
Starting up the shutdown configuration wizard
From the CF main window of the Cluster Admin screen, select the Tool menu and then Shutdown Facility -> Configuration Wizard. The shutdown configuration wizard will start.
Information
You can also configure the shutdown facility immediately after you complete the CF configuration with the CF wizard.
The following confirmation popup screen will appear. Click Yes to start the shutdown configuration wizard.
Selecting a configuration mode
You can select either of the following two modes to configure the shutdown facility:
Easy configuration (recommended)
Detailed configuration
This section explains how to configure the shutdown facility using Easy configuration (recommended). With this mode, you can configure the PRIMECLUSTER shutdown facility according to the procedure.
Figure 5.14 Selecting the SF configuration mode
Select Easy configuration (recommended) and then click Next.
Selecting a shutdown agent
After you confirm the hardware machine type, select an appropriate shutdown agent.
Figure 5.15 Selecting a shutdown agent
Select No SCON Configuration.
Then, select all the following shutdown agents depending on the hardware machine type.
SPARC Enterprise M3000, M4000, M5000, M8000, and M9000 provided by companies other than Fujitsu in Japan
SPARC Enterprise M3000, M4000, M5000, M8000, and M9000 with logos of both Fujitsu and Oracle provided in other than Japan
XSCF Panic
Console Break
XSCF Reset
SPARC Enterprise M3000, M4000, M5000, M8000, and M9000 other than above
RCI Panic
XSCF Panic
Console Break
RCI Reset
XSCF Reset
Upon the completion of configuration, click Next.
Configuring XSCF
If you select XSCF Panic or XSCF Reset for the shutdown agent, the screen for configuring the XSCF will appear.
Enter the settings for XSCF that you recorded in "5.1.2.2.1 Checking Console Configuration".
Figure 5.16 Configuring XSCF
Enter the IP address of XSCF or the host name of XSCF that is registered in the /etc/inet/hosts file.
Enter a user name to log in to the control port.
Enter a password to log in to the control port.
Upon the completion of configuration, click Next.
Configuring a Console Break agent
If you select Console Break as the shutdown agent, the screen used for selecting a Console Break agent will appear.
If you use the SPARC Enterprise M3000, M4000, M5000, M8000, or M9000, select XSCF of Console Break agent.
Figure 5.17 Selecting a Console Break agent
Upon the completion of configuration, click Next.
Configuring Wait for PROM
Note
Wait for PROM is currently not supported.
Uncheck the check box if checked, and then click Next.
Figure 5.18 Configure Wait for PROM
Entering node weights and administrative IP addresses
Enter the weights of the nodes and the IP addresses for the administrative LAN.
Figure 5.19 Entering node weights and administrative IP addresses
Enter the weight of the node that constitutes the cluster. Weight is used to identify the survival priority of the node group that constitutes the cluster. Possible values for each node range from 1 to 300.
For details on survival priority and weight, refer to the explanations below.
Enter an IP address directly or click the tab to select the host name that is assigned to the administrative IP address.
Upon the completion of configuration, click Next.
Even if a cluster partition occurs due to a failure in the cluster interconnect, all the nodes will still be able to access the user resources. For details on the cluster partition, see "2.2.2.1 Protecting data integrity" in the "PRIMECLUSTER Concept Guide".
To guarantee the consistency of the data constituting user resources, you have to determine the node groups to survive and those that are to be forcibly stopped.
The weight assigned to each node group is referred to as a "Survival priority" under PRIMECLUSTER.
The greater the weight of the node, the higher the survival priority. Conversely, the less the weight of the node, the lower the survival priority. If multiple node groups have the same survival priority, the node group that includes a node with the name that is first in alphabetical order will survive.
Survival priority can be found in the following calculation:
Survival priority = SF node weight + ShutdownPriority of userApplication
Weight of node. Default value = 1. Set this value while configuring the shutdown facility.
Set this attribute when userApplication is created. For details on how to change the settings, see "8.1.2 Changing the Operation Attributes of a Cluster Application".
See
For details on the ShutdownPriority attribute of userApplication, see "6.6.5 Attributes".
The typical scenarios that are implemented are shown below:
Set the weight of all nodes to 1 (default).
Set the attribute of ShutdownPriority of all user applications to 0 (default).
Set the "weight" of the node to survive to a value more than double the total weight of the other nodes.
Set the ShutdownPriority attribute of all user applications to 0 (default).
In the following example, node1 is to survive:
Set the "weight" of all nodes to 1 (default).
Set the ShutdownPriority attribute of the user application whose operation is to continue to a value more than double the total of the ShutdownPriority attributes of the other user applications and the weights of all nodes.
In the following example, the node for which app1 is operating is to survive:
Saving the configuration
Confirm and then save the configuration. In the left-hand panel of the window, those nodes that constitute the cluster are displayed, as are the shutdown agents that are configured for each node.
Figure 5.20 Saving the configuration
Click Next. A popup screen will appear for confirmation. Select Yes to save the setting.
Displaying the configuration of the shutdown facility
If you save the setting, a screen displaying the configuration of the shutdown facility will appear. On this screen, you can confirm the configuration of the shutdown facility on each node by selecting each node in turn.
Information
You can also view the configuration of the shutdown facility by selecting Shutdown Facility -> Show Status from the Tool menu.
Figure 5.21 Show Status
"Unknown" is shown during normal system operation. If an error occurs and the shutdown facility stops the relevant node successfully, "Unknown" will change to "KillWorked".
Indicates the state in which the path to shut down the node is tested when a node error occurs. If the test of the path has not been completed, "Unknown" will be displayed. If the configured shutdown agent operates normally, "Unknown" will be changed to "TestWorked".
Indicates the state in which the shutdown agent is initialized.
To exit the configuration wizard, click Finish. Click Yes in the confirmation popup screen that appears.
Note
Confirm that the shutdown facility is operating normally.
If "InitFailed" is displayed in the Initial state even when the configuration of the shutdown facility has been completed or if "Unknown" is displayed in the Test state or "TestFailed" is highlighted in red, the agent or hardware configuration may contain an error. Check the /var/adm/messages file and the console for an error message. Then, apply appropriate countermeasures as instructed the message that is output.
If connection to XSCF is telnet, the test state becomes TestFailed at this point in time. Confirm that the shutdown facility is operating normally, after the "Setting of the connection method to the XSCF".
See
For details on how to respond to the error messages that may be output, see the following manual.
"12.12 Monitoring Agent messages" in the "PRIMECLUSTER Cluster Foundation (CF) Configuration and Administration Guide".
Confirm that the timeout value for each shutdown agent is as shown below. You can confirm the timeout value in the left-hand panel of the shutdown configuration wizard screen.
<How to calculate a timeout value>
For XSCF Panic/XSCF Break
4 or fewer nodes
Timeout value = 20 (seconds)
5 or more nodes
Timeout value = 6 x number of cluster nodes + 2 (seconds)
Example) For 5 nodes: 6 x 5 + 2 = 32 (seconds)
For XSCF Reset
4 or fewer nodes
Timeout value = 40 (seconds)
5 or more nodes
Timeout value = 6 x number of cluster nodes + 22 (seconds)
Example) For 5 nodes: 6 x 5 + 22 = 52 (seconds)
For RCI
Timeout value = 20 (seconds)
If the value has not been set as explained above, set a timeout value as follows.
Setting a timeout value
In the CF main window of Cluster Admin, select Shutdown Facility -> Configuration Wizard from the Tool menu and then start the configuration wizard.
Figure 5.22 Selecting a configuration mode
Select Detailed configuration, and then click Next.
Select Edit, and then click Next.
Select Finish Configuration, and then click Next.
Figure 5.23 Changing the Shutdown Agent order
Click Next.
Note
Do not change the order in which shutdown agents are invoked.
Figure 5.24 Timeout value
Change the timeout values to the values (in seconds) calculated by the formula in <How to calculate a timeout value>. The default value is displayed as 20 seconds.
Upon the completion of configuration, click Next.
The "Entering node weights and administrative IP addresses" screen will appear. Click Next and then save the settings.
The default of setting of the connection method to the XSCF is SSH connection, in the SPARC Enterprise M3000, M4000, M5000, M8000, or M9000. The procedure when changing to the telnet connection is the following.
Change of the connection method
Execute the following command in all nodes to change a connection method.
# /etc/opt/FJSVcluster/bin/clrccusetup -m -t telnet |
Example)
# /etc/opt/FJSVcluster/bin/clrccusetup -m -t telnet <RETURN> # /etc/opt/FJSVcluster/bin/clrccusetup -l <RETURN> Device-name cluster-host-name IP-address host-name user-name connection-type ------------------------------------------------------------------------------- xscf fuji2 xscf2 1 xuser telnet xscf fuji3 xscf3 1 xuser telnet |
Starting up the shutdown facility
Execute the following command in each node, and confirm the shutdown facility has started.
# /opt/SMAW/bin/sdtool -s |
If the state of configuration of shutdown facility is displayed, shutdown facility is started.
If "The RCSD is not running" is displayed, shutdown facility is not started.
If shutdown facility is started, execute the following command, and restart the shutdown facility.
# /opt/SMAW/bin/sdtool -r |
If shutdown facility is not started, execute the following command, and start the shutdown facility.
# /opt/SMAW/bin/sdtool -b |
ALOM in console can be used by SPARC Enterprise T1000 or T2000.
Confirm the following settings concerning ALOM before setting the shutdown facility.
The log in user account must be made for the shutdown facility, and c level (console access) authority must be given.
In connected permission protocol type from the outside, the telnet must be effective.
The following ALOM composition variables must not have been changed from default.
if_emailalerts : false(default)
sc_clieventlevel : 2(default)
sc_cliprompt : sc(default)
Note
Connected permission from the outside to ALOM is default and SSH. In that case, it is not supported in the shutdown facility.
When the connection to ALOM is a serial port connection alone, it is not supported in the shutdown facility.
Moreover, record the following information on ALOM.
ALOM IP address(*1) or an ALOM host name registered in the "/etc/inet/hosts" file.
User name used to log in the ALOM.
Password used to log in the ALOM.
*1) When the network routing is set, Internet Protocol address of ALOM need not be the same to management LAN segment of the cluster node.
See
For information on how to configure and confirm ALOM, see the "Advanced Lights out Management (ALOM) CMT Guide".
You cannot execute the setting of the shutdown facility of SPARC Enterprise T1000 or T2000 in the shutdown configuration Wizard.
The following confirmation popup screen will appear, immediately after you complete the CF configuration with the CF wizard. Click <No> to end the shutdown configuration wizard.
Set up the shutdown facility according to the following procedure:
Configuring the shutdown facility
Create the "/etc/opt/SMAW/SMAWsf/rcsd.cfg" by the following contents in all nodes.
CFNameX,weight=weight,admIP=myadmIP:agent=SA_sunF,timeout=timeout CFNameX,weight=weight,admIP=myadmIP:agent=SA_sunF,timeout=timeout |
For the CF node name of the cluster host.
For the Weight of node.
For the IP address of the Administrative LAN of the own node.
For the name of shutdown agent.
You appoint "SA_sunF" of the ALOM shutdown agent, in SPARC Enterprise T1000 or T2000.
For the timeout duration of the shutdown agent.
For the 40 seconds in SPARC Enterprise T1000 or T2000.
Example)
node1,weight=1,admIP=10.20.30.100:agent=SA_sunF,timeout=40 node2,weight=1,admIP=10.20.30.200:agent=SA_sunF,timeout=40 |
Even if a cluster partition occurs due to a failure in the cluster interconnect, all the nodes will still be able to access the user resources. For details on the cluster partition, see "2.2.2.1 Protecting data integrity" in the "PRIMECLUSTER Concept Guide".
To guarantee the consistency of the data constituting user resources, you have to determine the node groups to survive and those that are to be forcibly stopped.
The weight assigned to each node group is referred to as a "Survival priority" under PRIMECLUSTER.
The greater the weight of the node, the higher the survival priority. Conversely, the less the weight of the node, the lower the survival priority. If multiple node groups have the same survival priority, the node group that includes a node with the name that is first in alphabetical order will survive.
Survival priority can be found in the following calculation:
Survival priority = SF node weight + ShutdownPriority of userApplication
Weight of node. Default value = 1. Set this value while configuring the shutdown facility.
Set this attribute when userApplication is created. For details on how to change the settings, see "8.1.2 Changing the Operation Attributes of a Cluster Application".
See
For details on the ShutdownPriority attribute of userApplication, see "6.6.5 Attributes".
The typical scenarios that are implemented are shown below:
Set the weight of all nodes to 1 (default).
Set the attribute of ShutdownPriority of all user applications to 0 (default).
Set the "weight" of the node to survive to a value more than double the total weight of the other nodes.
Set the ShutdownPriority attribute of all user applications to 0 (default).
In the following example, node1 is to survive:
Set the "weight" of all nodes to 1 (default).
Set the ShutdownPriority attribute of the user application whose operation is to continue to a value more than double the total of the ShutdownPriority attributes of the other user applications and the weights of all nodes.
In the following example, the node for which app1 is operating is to survive:
Configuring the ALOM shutdown agent
Enter the settings for ILOM that you recorded in "5.1.2.3.1 Checking Console Configuration".
Create the "/etc/opt/SMAW/SMAWsf/rcsd.cfg" by the following contents in all nodes.
SystemContorollerTag SystemControllerHostName SystemControllerLogin PWord void void CFBAMEX SystemContorollerTag SystemControllerHostName SystemControllerLogin PWord void void CFBAMEX |
Type of system controller.
If it is the ALOM shutdown agent, set "system-controller-alom-2k".
IP address of ALOM.
For the admin user name that you defined at the time of ALOM setting.
For the admin user password that you defined at the time of ALOM setting.
For the CF node name of the cluster host.
Example)
system-controller-alom-2k 10.20.30.100 admin admin01 void void node1 system-controller-alom-2k 10.20.30.200 admin admin01 void void node2 |
Starting up the shutdown facility
Execute the following command in each node, and confirm the shutdown facility has started.
# /opt/SMAW/bin/sdtool -s |
If the state of configuration of shutdown facility is displayed, shutdown facility is started.
If "The RCSD is not running" is displayed, shutdown facility is not started.
If shutdown facility is started, execute the following command, and restart the shutdown facility.
# /opt/SMAW/bin/sdtool -r |
If shutdown facility is not started, execute the following command, and start the shutdown facility.
# /opt/SMAW/bin/sdtool -b |
Displaying the configuration of the shutdown facility
Execute the following command in each node, and confirm the configuration of the shutdown facility.
# /opt/SMAW/bin/sdtool -s Cluster Host Agent SA State Shut State Test State Init State ------------------------------------------------------------------------------- node1 SA_sunF Idle Unknown TestWorked InitWorked node2 SA_sunF Idle Unknown TestWorked InitWorked |
"Unknown" is shown during normal system operation. If an error occurs and the shutdown facility stops the relevant node successfully, "Unknown" will change to "KillWorked".
Indicates the state in which the path to shut down the node is tested when a node error occurs. If the test of the path has not been completed, "Unknown" will be displayed. If the configured shutdown agent operates normally, "Unknown" will be changed to "TestWorked".
Indicates the state in which the shutdown agent is initialized.
Note
Confirm that the shutdown facility is operating normally.
In the following cases, there is a possibility that the mistake is found in the configuration setting of the agent or hardware.
An initial state was displayed as "InitFailed" though the setting of the shutdown facility was completed.
The test was displayed as "Unknown" or "TestFailed" though the setting of the shutdown facility was completed.
Confirm whether the error message is output to /var/adm/messages file and the console output screen.
Afterwards, correspond according to the content of the output message.
In SPARC Enterprise T5120, T5220, T5140, T5240, T5440, or SPARC T3 series, ILOM is used.
Check the following settings concerning ILOM before setting the shutdown facility.
The log in user account is made for the shutdown facility, and CLI mode of that is set to the default mode (*1).
User inquiries of the first SSH connection (such as generation of the RSA key) are completed by connecting to ILOM from all the cluster nodes via SSH using the log in user account for the shutdown facility.
If you are using ILOM 3.0, please check the following settings as well.
The log in user account for the shutdown facility must be set to one of the following privileges:
If the keyswitch_state parameter is set to normal
Console, Reset and Host Control, Read Only (cro)
Operator(*2)
If the keyswitch_state parameter is set to locked
Admin (a)
Administrator(*2)
If a necessary privilege is not set, TestFailed or KillFailed of shutdown agent would be occurred.
The log in user account for the shutdown facility must not be using SSH host-based key authentication.
Moreover, record the following information on ILOM.
ILOM IP address(*3)
Log in user account and password for shutdown facility in ILOM
*1) You can check if CLI mode of the log in user account is set to the default mode by the following procedure.
Log in CLI of ILOM.
Check prompt status.
Prompt status that is set to the default mode.
->
Prompt status that is set to alom mode.
sc>
*2) Due to compatibility of ILOM 3.0 with ILOM 2.x, this operation is also available for users with administrator or operator privileges from ILOM 2.x.
*3) When the network routing is set, IP address of ILOM need not be the same to management LAN segment of the cluster node.
See
For details on how to make and check ILOM settings, please refer to the following documentation.
For ILOM 2.x:
"Integrated Lights Out Manager User's Guide"
For ILOM 3.0:
"Integrated Lights Out Manager (ILOM) 3.0 Concepts Guide"
"Integrated Lights Out Manager (ILOM) 3.0 Web Interface Procedures Guide"
"Integrated Lights Out Manager (ILOM) 3.0 CLI Procedures Guide"
"Integrated Lights Out Manager (ILOM) 3.0 Getting Started Guide"
Configuring the shutdown facility
Create the "/etc/opt/SMAW/SMAWsf/rcsd.cfg" by the following contents in all nodes.
CFNameX,weight=weight,admIP=myadmIP:agent=SA_ilomp,timeout=timeout:agent=SA_ilomr,timeout=timeout CFNameX,weight=weight,admIP=myadmIP:agent=SA_ilomp,timeout=timeout:agent=SA_ilomr,timeout=timeout |
For the CF node name of the cluster host.
For the Weight of node.
For the IP address of the Administrative LAN of the own node.
For the name of shutdown agent.
You appoint the ILOM shutdown agent in the order of "SA_ilomp" and "SA_ilomr", in SPARC Enterprise T5120, T5220, T5140, T5240, T5440, or SPARC T3 series.
For the timeout duration of the shutdown agent.
For the 70 seconds in SPARC Enterprise T5120, T5220, T5140, T5240, T5440, or SPARC T3 series.
Example)
node1,weight=1,admIP=10.20.30.100:agent=SA_ilomp,timeout=70:agent=SA_ilomr,timeout=70 node2,weight=1,admIP=10.20.30.200:agent=SA_ilomp,timeout=70:agent=SA_ilomr,timeout=70 |
Even if a cluster partition occurs due to a failure in the cluster interconnect, all the nodes will still be able to access the user resources. For details on the cluster partition, see "2.2.2.1 Protecting data integrity" in the "PRIMECLUSTER Concept Guide".
To guarantee the consistency of the data constituting user resources, you have to determine the node groups to survive and those that are to be forcibly stopped.
The weight assigned to each node group is referred to as a "Survival priority" under PRIMECLUSTER.
The greater the weight of the node, the higher the survival priority. Conversely, the less the weight of the node, the lower the survival priority. If multiple node groups have the same survival priority, the node group that includes a node with the name that is first in alphabetical order will survive.
Survival priority can be found in the following calculation:
Survival priority = SF node weight + ShutdownPriority of userApplication
Weight of node. Default value = 1. Set this value while configuring the shutdown facility.
Set this attribute when userApplication is created. For details on how to change the settings, see "8.1.2 Changing the Operation Attributes of a Cluster Application".
See
For details on the ShutdownPriority attribute of userApplication, see "6.6.5 Attributes".
The typical scenarios that are implemented are shown below:
Set the weight of all nodes to 1 (default).
Set the attribute of ShutdownPriority of all user applications to 0 (default).
Set the "weight" of the node to survive to a value more than double the total weight of the other nodes.
Set the ShutdownPriority attribute of all user applications to 0 (default).
In the following example, node1 is to survive:
Set the "weight" of all nodes to 1 (default).
Set the ShutdownPriority attribute of the user application whose operation is to continue to a value more than double the total of the ShutdownPriority attributes of the other user applications and the weights of all nodes.
In the following example, the node for which app1 is operating is to survive:
Configuring a ILOM shutdown agent
Enter the settings for ILOM that you recorded in "5.1.2.4.1 Checking Console Configuration".
Execute the clrccusetup(1M) command in all nodes, and register the console information of local node.
Example)
# /etc/opt/FJSVcluster/bin/clrccusetup -a ilom 10.20.30.51 admin <RETURN> Enter User's Password: Re-enter User's Password: # /etc/opt/FJSVcluster/bin/clrccusetup -l Device-name cluster-host-name IP-address host-name user-name ------------------------------------------------------------------------------- ilom node1 10.20.30.50 - admin ilom node1 10.20.30.51 - admin |
Starting up the console asynchronous monitoring
Execute the command in each node, and register the console information of local node.
# /etc/opt/FJSVcluster/bin/clrccumonctl |
If "The devrccud daemon exixts." is displayed, the console asynchronous monitoring daemon is started.
If "The devrccud daemon does not exixts." is displayed, the console asynchronous monitoring daemon is not started. Execute the following command, and start the console asynchronous monitoring daemon.
# /etc/opt/FJSVcluster/bin/clrccumonctl start |
Starting up the shutdown facility
Execute the following command in each node, and confirm the shutdown facility has started.
# /opt/SMAW/bin/sdtool -s |
If the state of configuration of shutdown facility is displayed, shutdown facility is started.
If "The RCSD is not running" is displayed, shutdown facility is not started.
If shutdown facility is started, execute the following command, and restart the shutdown facility.
# /opt/SMAW/bin/sdtool -r |
If shutdown facility is not started, execute the following command, and start the shutdown facility.
# /opt/SMAW/bin/sdtool -b |
Displaying the configuration of the shutdown facility
Execute the following command in each node, and confirm the configuration of the shutdown facility.
# /opt/SMAW/bin/sdtool -s Cluster Host Agent SA State Shut State Test State Init State ------------------------------------------------------------------------------- node1 SA_ilomp.so Idle Unknown TestWorked InitWorked node1 SA_ilomr.so Idle Unknown TestWorked InitWorked node2 SA_ilomp.so Idle Unknown TestWorked InitWorked node2 SA_ilomr.so Idle Unknown TestWorked InitWorked |
"Unknown" is shown during normal system operation. If an error occurs and the shutdown facility stops the relevant node successfully, "Unknown" will change to "KillWorked".
Indicates the state in which the path to shut down the node is tested when a node error occurs. If the test of the path has not been completed, "Unknown" will be displayed. If the configured shutdown agent operates normally, "Unknown" will be changed to "TestWorked".
Indicates the state in which the shutdown agent is initialized.
Note
Confirm that the shutdown facility is operating normally on the display result of the sdtool -s command.
In the following cases, there is a possibility that the mistake is found in the configuration setting of the agent or hardware.
An initial state was displayed as "InitFailed" though the setting of the shutdown facility was completed.
The test was displayed as "Unknown" or "TestFailed" though the setting of the shutdown facility was completed.
Confirm whether the error message is output to /var/adm/messages file and the console output screen.
Afterwards, correspond according to the content of the output message.
If you connected to ILOM, do not do three connections or more at the same time.
If unavoidable, stop the shutdown facility of all nodes beforehand. Then, confirm the normal of shutdown facility started in all nodes after the cut connection. For details on stop, start, and the state confirmation of the shutdown facility, see the manual page describing sdtool(1M).
