2.1.2 Setting up Systemwalker Software Configuration Manager

If necessary, set up the product on a Windows or a Linux machine.

[Windows]

Perform the setup by opening a new command prompt and executing the following command:

<Systemwalker Software Configuration Manager installation directory>\SWCFMGM\bin\swcfmg_setup -s

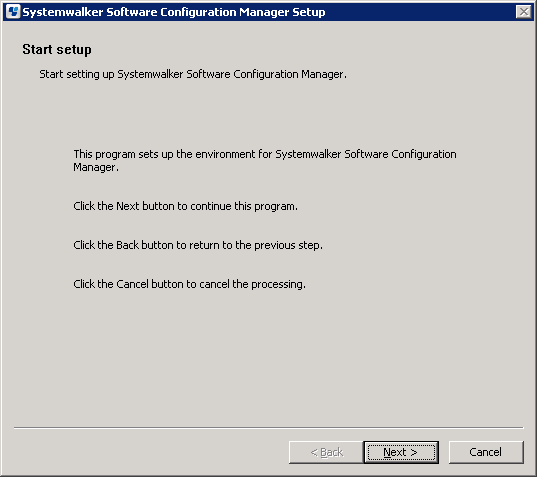

  1. The setup start window will be displayed.

  2. Click the Next button.

    The following window will be displayed:

    1. To use a WSUS server, perform the following operations:

      Specify the IP address of the WSUS server, and then click the Add button. Add the IP addresses for all the servers to be registered as WSUS servers. Up to 10 WSUS servers can be linked to this product.

      To remove an IP addresses that has been added, select the IP address in the list, and then click the Delete button.

    2. If no WSUS servers are to be used, clear the Use checkbox.

  3. Click the Next button.

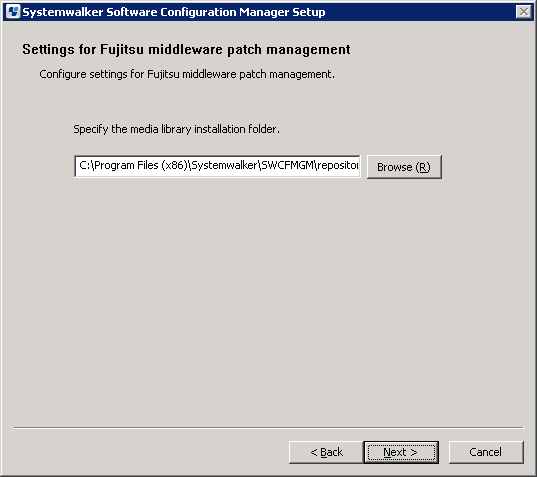

    The following window will be displayed:

    Set up patch management for Fujitsu middleware. Enter the following items:

    Input item

    Default value

    Media library installation folder

    <Systemwalker Software Configuration Manager installation directory>\SWCFMGM\repository

  4. Click the Next button.

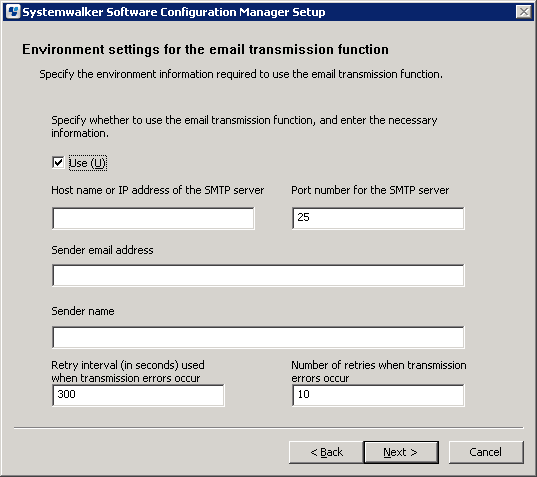

    The following window will be displayed:

  5. Specify the information required when the email transmission function is used.

    1. To use the email transmission function, set the following items:

      Input item

      Default value

      Host name or IP address of the SMTP server

      None

      Port number for the SMTP server

      25

      Sender email address

      None

      Sender name

      None

      Retry interval (in seconds) used when transmission errors occur

      300

      Number of retries when transmission errors occur

      10

      Point

      Set the Retry interval (in seconds) used when transmission errors occur and Number of retries when transmission errors occur items to match the operation policy, such as the target time for recovering from problems.

      If there is no clear operation policy, use the default values.

    2. If the email transmission function is not to be used, clear the Use checkbox.

  6. Click the Next button.

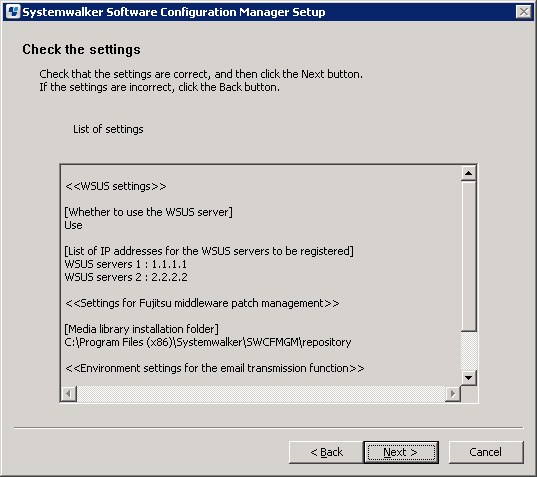

    The following confirmation window will be displayed:

  7. Click the Next button.

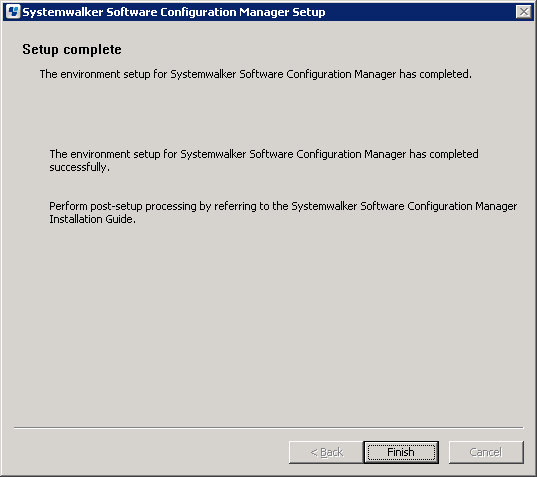

    When the setup completes, the following window will be displayed:

  8. Click the Finish button.

[Linux]

Execute the following command to start the setup:

/opt/FJSVcfmgm/bin/swcfmg_setup -s

  1. A welcome window will be displayed. Press the Enter key.

    ================================================================================
            Systemwalker Software Configuration Manager Setup
                                    V15.1.1
                      Copyright 2010-2013 FUJITSU LIMITED
================================================================================

Welcome to Systemwalker Setup!
Set up Systemwalker Software Configuration Manager.

Press ENTER.

  2. The setup start window will be displayed. Enter "y".

    ================================================================================
            Systemwalker Software Configuration Manager Setup
                                    V15.1.1
                      Copyright 2010-2013 FUJITSU LIMITED
================================================================================

Systemwalker Software Configuration Manager ( admin server )

Start the setup?
[y,n]
=>

  3. Set up WSUS.

    << WSUS settings >>
Specify the environment information required to use the WSUS server.
=================================================================================

Use a WSUS repository server?

1. Use
2. Do not use
[number,q]
=>

  4. To use a WSUS server, enter the IP address of the WSUS server.

    << WSUS settings >>
Specify the IP address of the server to be registered as a WSUS server.
=================================================================================

Enter the IP address of the WSUS server to be registered.
=>

  5. Enter the IP address of the WSUS if continuing registration.

    << WSUS settings >>
Specify the IP address of the server to be registered as a WSUS server.
=================================================================================

[List of IP addresses for the WSUS servers to be registered]
WSUS server 1: 192.168.10.10

Enter the IP address if continuing registration, or enter [e] if completing registration.
[IPAddress,e,q]
=>

  6. Set up patch management for Fujitsu middleware. Specify the directory where the media library is to be installed.

    << Settings for Fujitsu middleware patch management >>
Configure settings for Fujitsu middleware patch management.
=================================================================================

Specify the media library installation directory.
    Installation directory (can be changed): /var/opt/FJSVcfmgm/repository

Accept the above settings?
[y,n,q]
=>

  7. Set up an environment for the email transmission function.

    << Environment settings for the email transmission function >>
Specify the environment information required to use the email transmission function.
=================================================================================

Specify whether to use the email transmission function.

1. Use
2. Do not use
[number,q]
=>

  8. To use the email transmission function, set up the email function.

    1. Enter the host name or IP address of the SMTP server.

      << Environment settings for the email transmission function >>
Specify the environment information required to use the email transmission function.
=================================================================================

[Settings Information]
Email transmission function: Use
Host name of the SMTP server:
Port number for the SMTP server: 25
Sender email address:
Sender name:
Retry interval (in seconds) used when transmission errors occur: 300
Number of retries when transmission errors occur: 10

Enter the host name or IP address of the SMTP server.
=>

    2. Enter the port number for the SMTP server.

      << Environment settings for the email transmission function >>
Specify the environment information required to use the email transmission function.
=================================================================================

[Settings Information]
Email transmission function: Use
Host name of the SMTP server: smtp-server.example.com
Port number for the SMTP server: 25
Sender email address:
Sender name:
Retry interval (in seconds) used when transmission errors occur: 300
Number of retries when transmission errors occur: 10

Enter the port number of the SMTP server.
If the return key is pressed without any input, [default: 25] will be set.
=>

    3. Enter the email address of the sender.

      << Environment settings for the email transmission function >>
Specify the environment information required to use the email transmission function.
=================================================================================

[Settings Information]
Email transmission function: Use
Host name of the SMTP server: smtp-server.example.com
Port number for the SMTP server: 25
Sender email address:
Sender name:
Retry interval (in seconds) used when transmission errors occur: 300
Number of retries when transmission errors occur: 10

Enter the sender's email address.
=>

    4. Enter the name of the sender.

      << Environment settings for the email transmission function >>
Specify the environment information required to use the email transmission function.
=================================================================================

[Settings Information]
Email transmission function: Use
Host name of the SMTP server: smtp-server.example.com
Port number for the SMTP server: 25
Sender email address: smtp-server@example.com
Sender name:
Retry interval (in seconds) used when transmission errors occur: 300
Number of retries when transmission errors occur: 10

Enter the sender's name.
=>

    5. Enter the retry interval to be used when transmission errors occur.

      << Environment settings for the email transmission function >>
Specify the environment information required to use the email transmission function.
=================================================================================

[Settings Information]
Email transmission function: Use
Host name of the SMTP server: smtp-server.example.com
Port number for the SMTP server: 25
Sender email address: smtp-server@example.com
Sender name: Smtp Server
Retry interval (in seconds) used when transmission errors occur: 300
Number of retries when transmission errors occur: 10

Enter the retry interval (in seconds) used when transmission errors occur.
If the return key is pressed without any input, [default: 300] will be set.
=>

    6. Enter the number of retries to be performed when transmission errors occur.

      << Environment settings for the email transmission function >>
Specify the environment information required to use the email transmission function.
=================================================================================

[Settings Information]
Email transmission function: Use
Host name of the SMTP server: smtp-server.example.com
Port number for the SMTP server: 25
Sender email address: smtp-server@example.com
Sender name: Smtp Server
Retry interval (in seconds) used when transmission errors occur: 300
Number of retries when transmission errors occur: 10

Enter the number of retries when transmission errors occur.
If the return key is pressed without any input, [default: 10] will be set.
=>

    7. Check the settings for the email transmission function, and then enter "y".

      << Environment settings for the email transmission function >>
Specify the environment information required to use the email transmission function.
=================================================================================

[Settings Information]
Email transmission function: Use
Host name of the SMTP server: smtp-server.example.com
Port number for the SMTP server: 25
Sender email address: smtp-server@example.com
Sender name: Smtp Server
Retry interval (in seconds) used when transmission errors occur: 300
Number of retries when transmission errors occur: 10

Accept the above settings?
[y,n,q]
=>

  9. Check the setup information.

    Check the information entered in the settings window, and then enter "y" to start the setup processing.

    << Check the settings >>
Ensure the settings are correct, and then start setup.
=================================================================================

[WSUS settings]
WSUS servers: Use
List of IP addresses for the WSUS servers to be registered:
WSUS server 1: 192.168.10.10

[Settings for Fujitsu middleware patch management]
Media library installation directory: /var/opt/FJSVcfmgm/repository

[Environment settings for the email transmission function]
Email transmission function: Use
Host name of the SMTP server: smtp-server.example.com
Port number for the SMTP server: 25
Sender email address: smtp-server@example.com
Sender name: Smtp Server
Retry interval (in seconds) used when transmission errors occur: 300
Number of retries when transmission errors occur: 10

Start the setup with the above settings?
[y,q]
=>

  10. When the setup completes, the following message will be displayed:

    The environment setup for Systemwalker Software Configuration Manager has completed successfully.
Perform post-setup processing by referring to the Systemwalker Software Configuration Manager Installation Guide.
