4.4.3 Registering a New Scenario and Saving Report Conditions

This section describes how to register a new scenario and save report conditions.

  1. Click My Category Management next to Category.

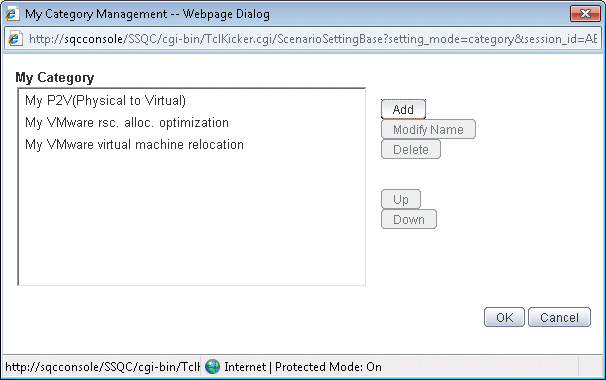

  2. Click the Add button in the My Category Management that is displayed.


  3. In the Add Category window that is displayed, click either Create Empty Category or Create a Copy of another category.

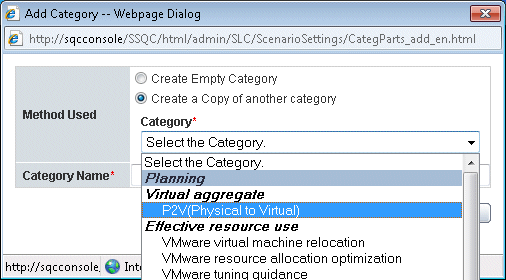

  4. If you select Create a Copy of another category, select a category that has already been registered in the console.

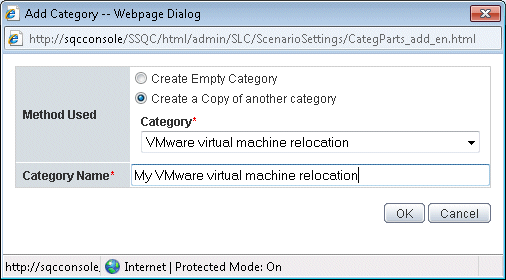

  5. Enter the new category name in the Category Name field and click OK.


  6. Click OK in the My Category Management window.

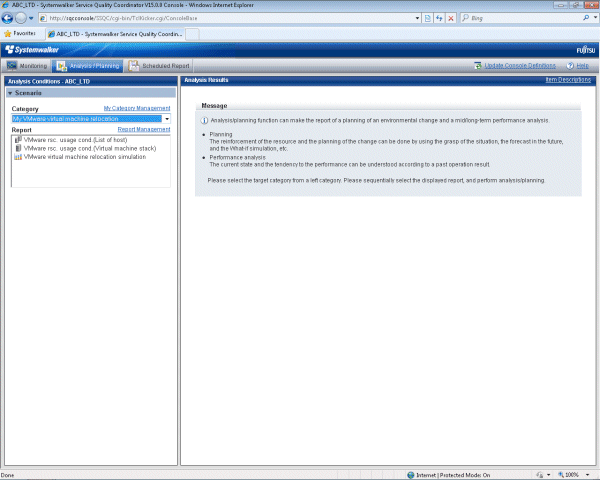

  7. If the report is not registered in a newly registered category, click Report Management next to Report.

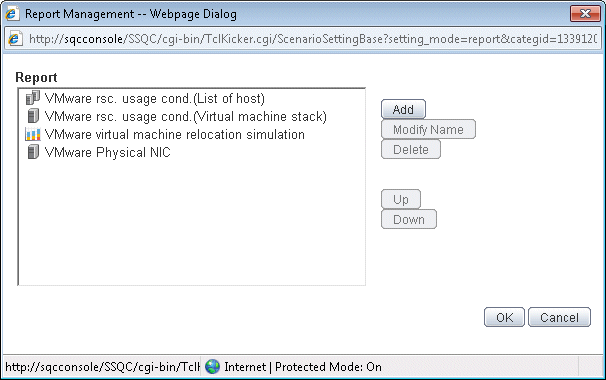

  8. Click the Add button in the Report Management window that is displayed.

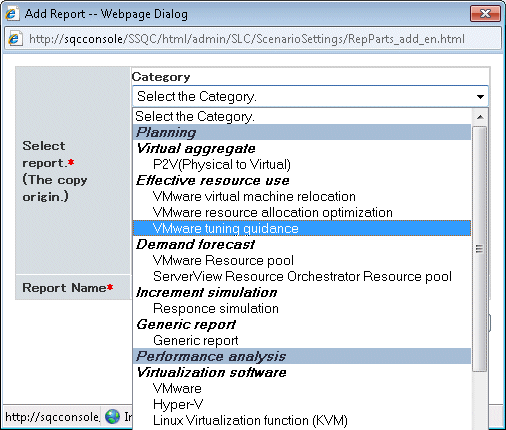

  9. In the Add Report window that is displayed, select the category that includes the report that you want to copy.


  10. The reports included in the selected category are listed, so select the report you want to copy.
    More than one report can be selected. Click OK after selecting.


  11. Click OK in the Report Management window.

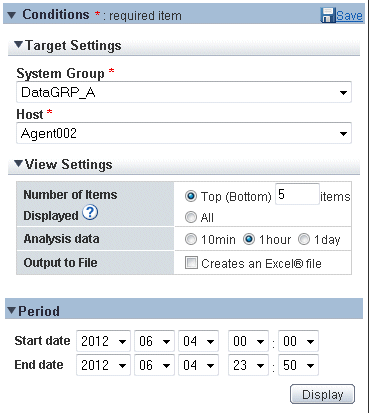

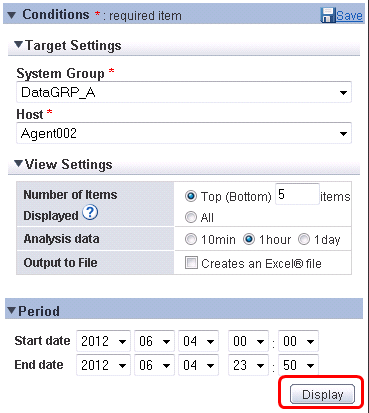

  12. Enter the appropriate Conditions and Period.


  13. Click the Display button at the bottom of the analysis conditions area.

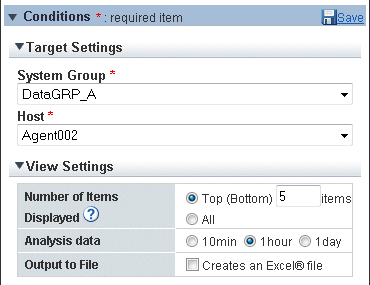

  14. When saving conditions, first check that there is no problem with the displayed report, then click Save next to Conditions.


  15. Enter a name for the report in the Save Condition Settings window that is displayed, then click the Save button.
    If you have changed the report name, a report with the specified conditions is added to the selected category.
    If you have not changed either the category or the report name, the selected report is overwritten.
