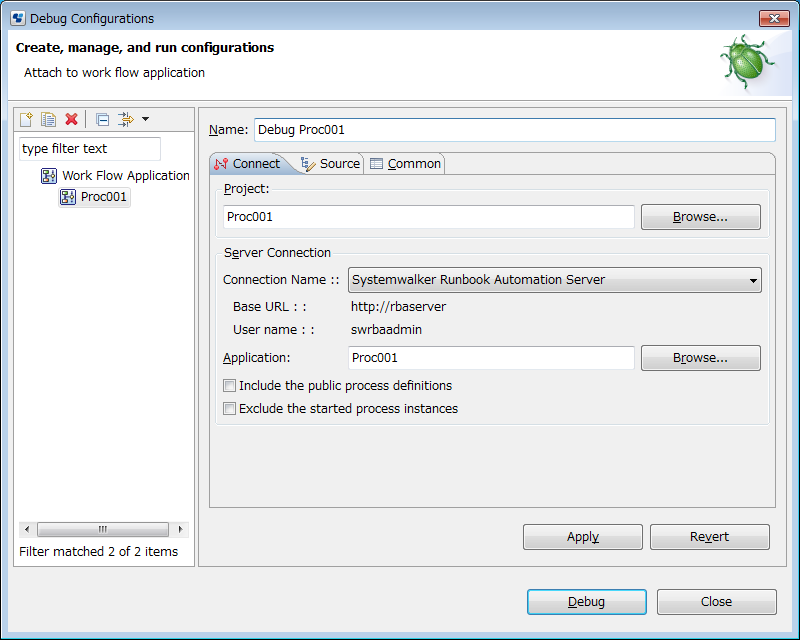

In the Name field, specify a unique name for debug configuration. This name cannot contain the /, \, :, &, *, ?, ", <, >, | or @ symbols.
In the Connect tab, specify the project to be debugged (this project includes the process definition) and the Management Server to connect to.
Project: Enter the project name directly, or browse the project names and select the project name.
Server connection setting: From the list in Server connection settings under Window >> Preferences >> Interstage BPM Studio of the workbench, select the connection information for the server which will be connected to using the debug configuration.
In the Connection name combo-box, the base URL and user name are displayed as information elements to be confirmed from the Server connection setting that was selected. This information element string can also be selected and then copied. In Application field select the application containing the process definition of the project. If no application is selected. When an application is selected all process definitions on the management server will be selected. You can also Browse and choose applications from Management server.
Include the public process definitions: Select this to make public process definitions the subject of the process.
Exclude the started processinstances: Select this to exclude process instances that had already been started when debugging was started, and thereby reduce the amount of time it will take till debugging can be started.
In the Source tab, define projects related to the project defined in the Connect tab if necessary.
Note: When used in Systemwalker Runbook Automation, related projects do not usually need to be defined in this tab.
In the Common tab, define the storage location of the Debug configuration, and advanced options for operations when the debug configurations is running.
Note: When used in Systemwalker Runbook Automation, options do not usually need to be specified explicitly in this tab.
Note
In Systemwalker Runbook Automation you cannot select (
button) to open Debug configuration.
